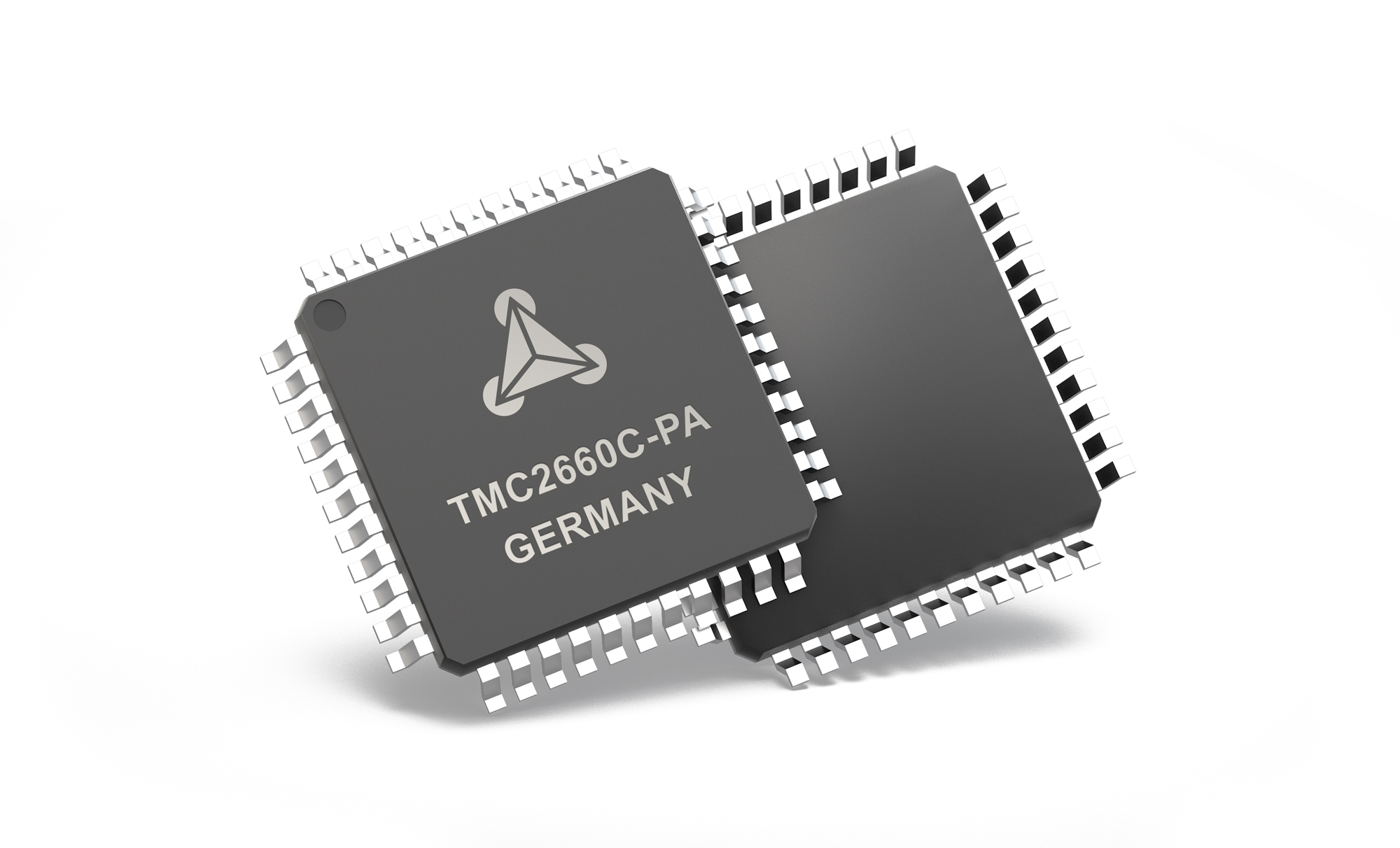

TMC2660

推荐新设计使用

Stepper motor driver 5 to 30V, up to 2.8A with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle

数据手册 (Rev. 1.03) 产品选型表

产品模型: 2

Viewing:

产品详情

Drive Capability up to 4A motor current
Voltage up to 30V DC
Highest Resolution up to 256 microsteps per full step
Compact Size 10x10mm QFP-44 package
Low Power Dissipation, very low RDSON & synchronous rectification
Protection & Diagnostics overcurrent, short to GND, overtemperature & undervoltage

EMI-optimized programmable slope
stallGuard2™ high precision sensorless motor load detection
coolStep™ load dependent current control for energy savings up to 75%
microPlyer™ microstep interpolation for increased smoothness with coarse step inputs.
spreadCycle™ high-precision chopper for best current sine wave form and zero crossing

参考资料

数据手册 1

TMC2660C Data Sheet (Rev.1.03) 02/24/2022

应用笔记 3

AN-001: Parameterization of spreadCycle™ 11/21/2016

AN-002: Parameterization of StallGuard2™ & CoolStep™ 03/01/2021

AN-032: TMC4361A Closed-loop Motor Control for Stepper Motor Drivers 08/13/2023

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
TMC2660C-PA	44-LQFP-10X10X1.4	Material Declaration Reliablity Data	Ultra Librarian SamacSys
TMC2660C-PA-T	44-LQFP-10X10X1.4	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

工具及仿真模型

设计工具 1

TMC260C/261C/262C/2660C Calculations

评估套件

Evaluation Board for TMC2660

立即购买更多内容

特性和优点

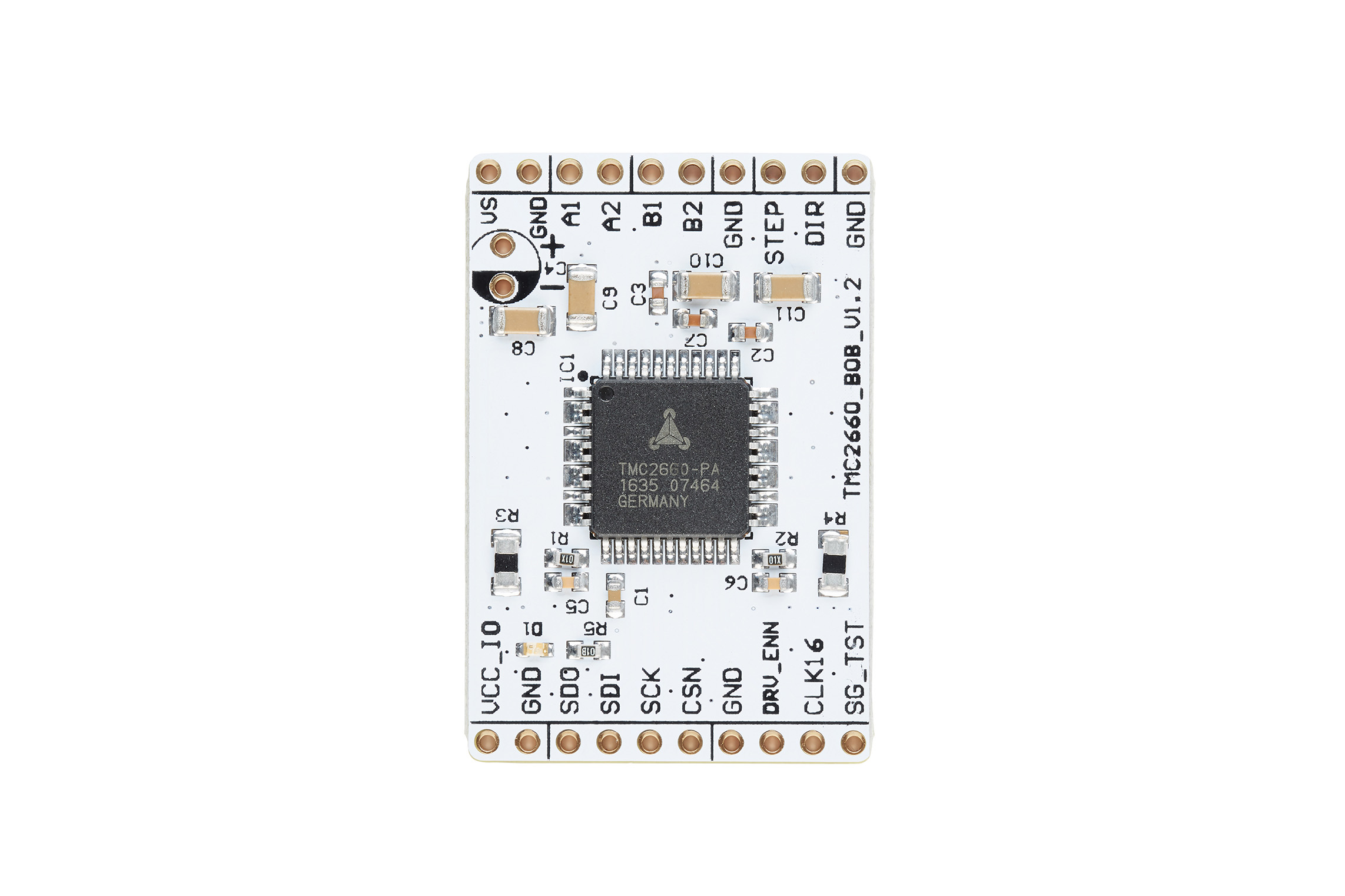

TMC2660-PA stepper power driver
Supply voltage 9-28V, I_{phase, RMS} up to 2.0A
Configuration via SPI, control via step/direction
Optional electrolyte cap at supply rail
Optional cooling from bottom side
Board width 1.5", board height 1.0"
2x10 pin 0.1" header rows for pins/connectors
1 to 256 Microsteps
2A RMS, 30V

产品详情

The TMC2660 breakout board is a development board with the dedicated TMC2660-PA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

资料

Bom Tmc2660 Bob - Design Files (Rev.1.2)
25.50K

TMC2660 BOB Fabrication Data - Design Files
149.07K

Tmc2660 Bob 3d Files Layout Data - Design Files (Rev.1.2)
3.20M

Tmc2660 Bob Cad Files - Design Files (Rev.1.2)
6.12M

TMC262-BOB User Manual (Rev.1.00)
2.11 M

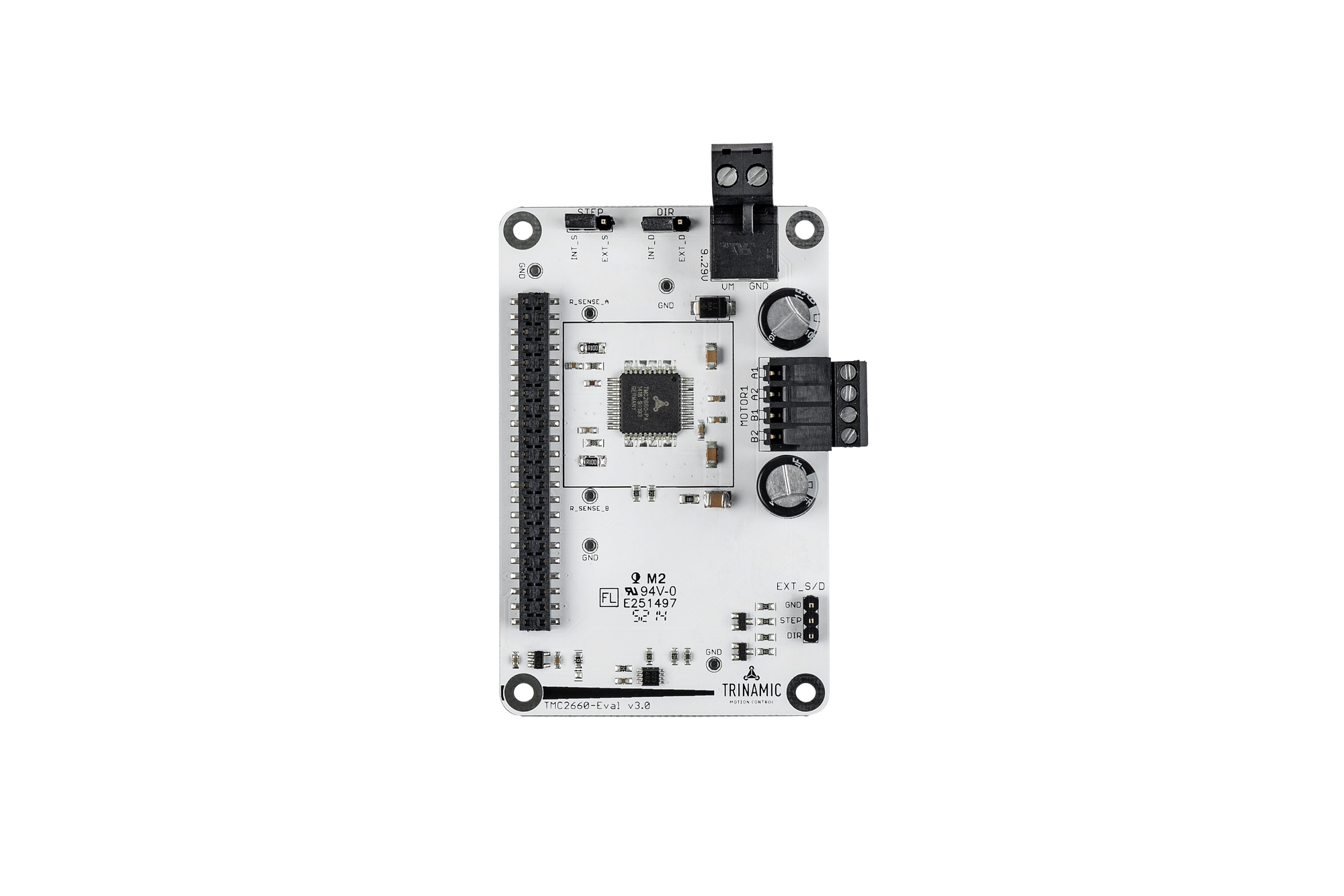

Evaluation Board for TMC2660

立即购买更多内容

特性和优点

StallGuard2™
CoolStep™
SpreadCycle™
MicroPlyer™
1 to 256 Microsteps
2.8A RMS, 29V

产品详情

The TMC2660-EVAL allows you to explore all functions of the TMC2660-PA.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

资料

Tmc2660 Eval Layout Data - Design Files (Rev.3.0)
470.30K

软件

TMCL-IDE

TMC2660
