MAXM20344

量产

0.5V to 5.5V, 2.5W Himalaya uSLIC Step-Up/Down Power Modules

数据手册 (Rev. 0) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Easy to Use
    • Wide 0.5V to 5.5V Input
    • Adjustable 2.5V to 5.5V Output
    • Up to 2.5W Output Power
    • Internally Compensated;
    • All Ceramic Capacitors, Compact Layout
    • Low Profile, Compact 20-Pin,
    • 3.5mm x 3.5mm x 1.45mm, uSLIC Package
  • High Efficiency
    • Peak Efficiency of 95%
    • Adaptive Frequency to Increase Efficiency at Light Loads
    • 3.5μA Quiescent Current
  • Flexible Design
    • Internal Soft-Start
    • Prebias Startup in MAXM20344;
    • Open-Drain Input Power Good (INGOOD Pin)
    • Open-Drain Output Power Good (PGOOD Pin)
  • Robust Operation
    • Overcurrent, Overtemperature Protection
    • Wide -40oC to +125oC Ambient Operating Temperature/ -40oC to +150oC Junction Temperature
    • Complies with CISPR32 Class B Conducted and Radiated Emissions;
    • Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111
MAXM20344
0.5V to 5.5V, 2.5W Himalaya uSLIC Step-Up/Down Power Modules

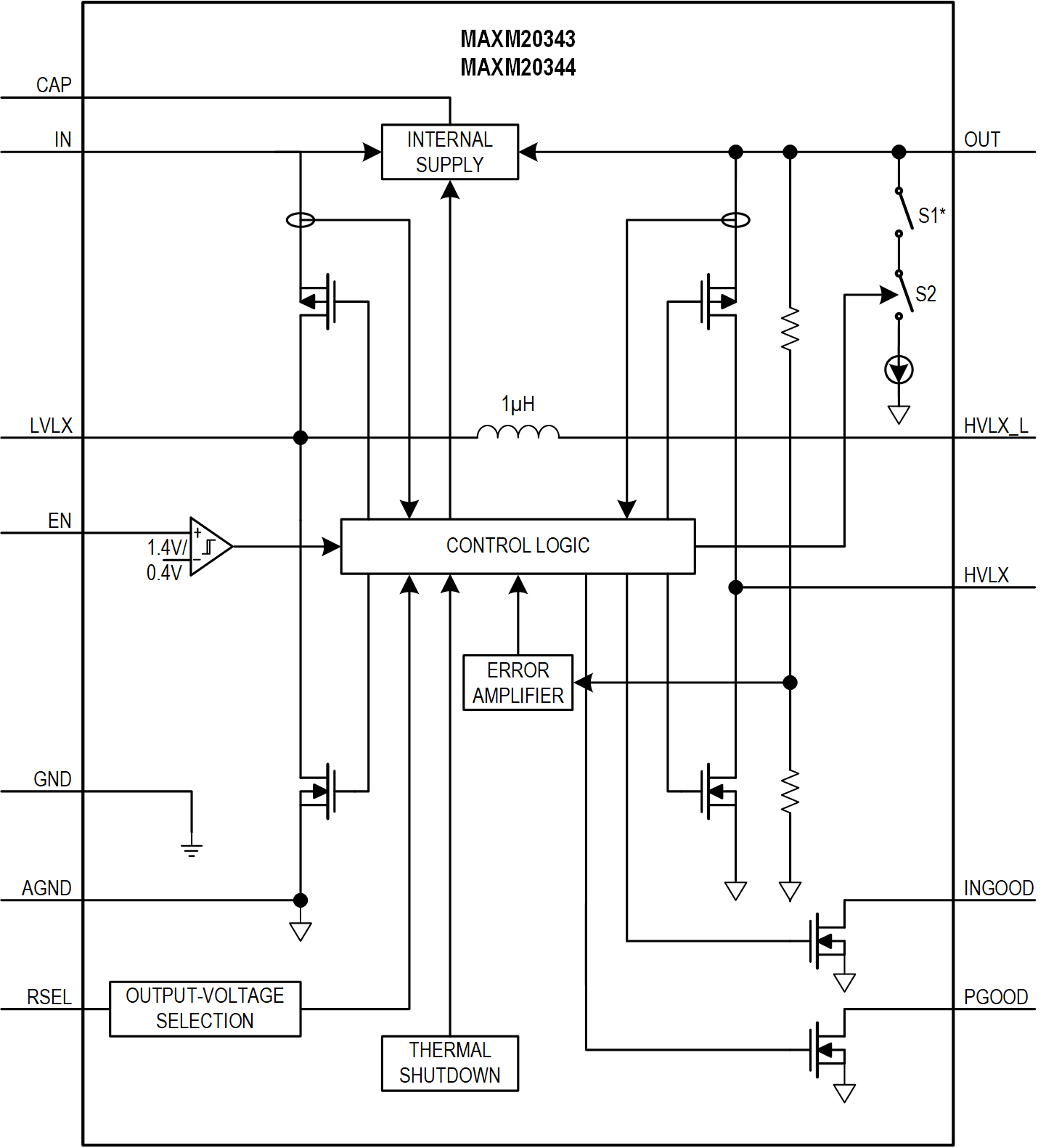

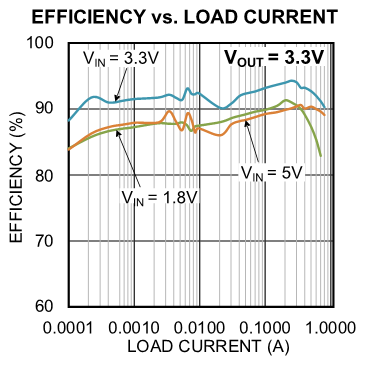

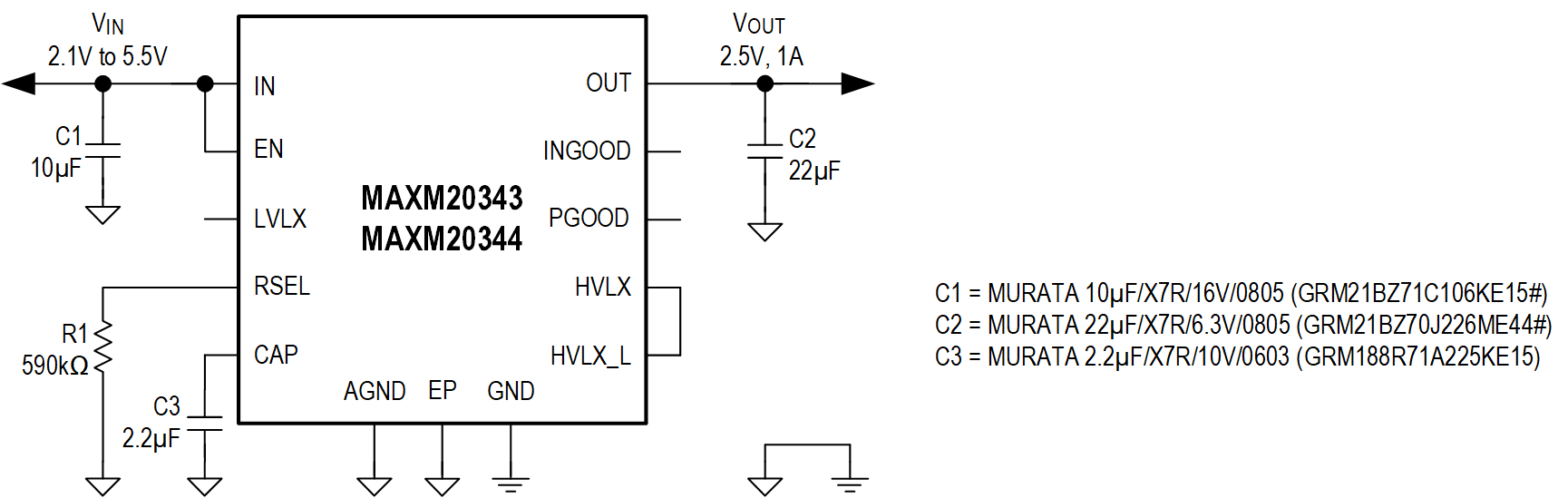

MAXM20343-MAXM20344 Functional Block DIagram MAXM20343-MAXM20344 Simplified Application Diagram MAXM20343-MAXM20344 Typical Application
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

评估套件

eval board
schematic 1
schematic 2
schematic 3
MAXM20343EVKIT/
MAXM20344EVKIT

Evaluates: MAXM20343 and MAXM20344 Modules in 3.3V and 5V Output-Voltage Application

立即购买 更多内容

特性和优点

  • 0.5V to 5.5V Input Range
  • MAXM20343 Offers High 94% Efficiency (VIN = 3.3V, VOUT = 3.3V, IOUT = 300mA)
  • MAXM20344 Offers High 94.5% Efficiency (VIN = 3.3V, VOUT = 5V, IOUT = 300mA)
  • Fixed 32ms Soft-Start Time
  • INGOOD and PGOOD Outputs with Pullup Resistor to the Respective OUT
  • Low-Profile, Surface-Mount Components
  • Proven PCB Layout
  • Fully Assembled and Tested

产品详情

The MAXM20343/MAXM20344 evaluation boards provide a proven design to evaluate the performance of the MAXM20343/MAXM20344 modules. Each of these modules operate over an input range from 0.5V to 5.5V and deliver up to 2.5W output power. The modules are configured to demonstrate optimum performance and component sizes in the evaluation boards.

The MAXM20343 module is configured for a 3.3V output, delivering up to 2.5W, over a 0.5V to 5.5V input range.

The MAXM20344 module is configured for a 5V output, delivering up to 2.5W, over a 0.5V to 5.5V input range.

The evaluation boards feature fixed soft-start, INGOOD and PGOOD signals. The MAXM20343/MAXM20344 module family data sheet provides a complete description of the parts that should be read in conjunction with this data sheet prior to operating the evaluation boards.
MAXM20343EVKIT/
MAXM20344EVKIT
Evaluates: MAXM20343 and MAXM20344 Modules in 3.3V and 5V Output-Voltage Application

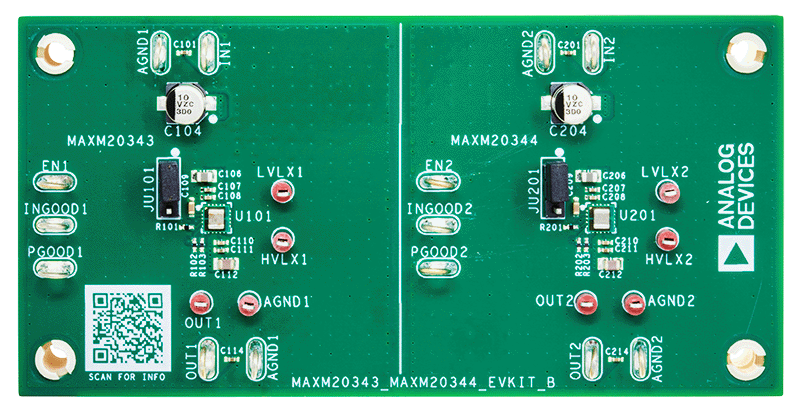

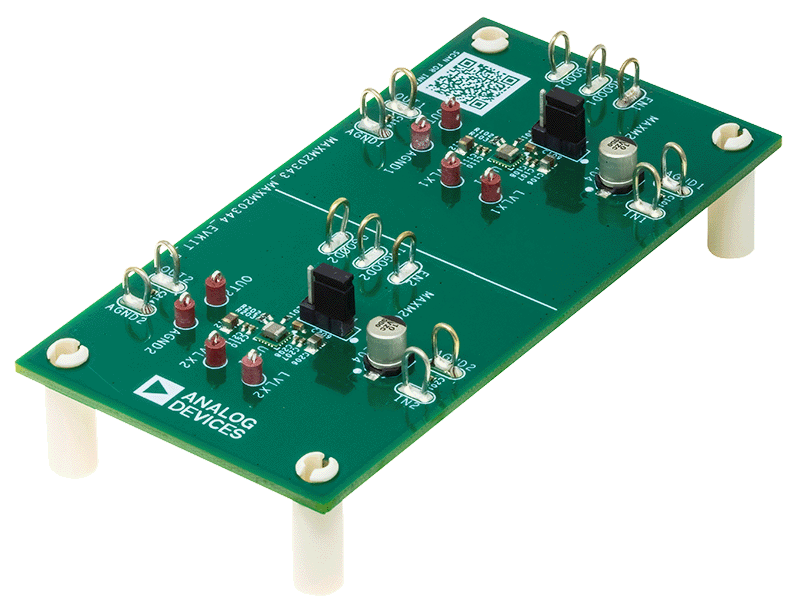

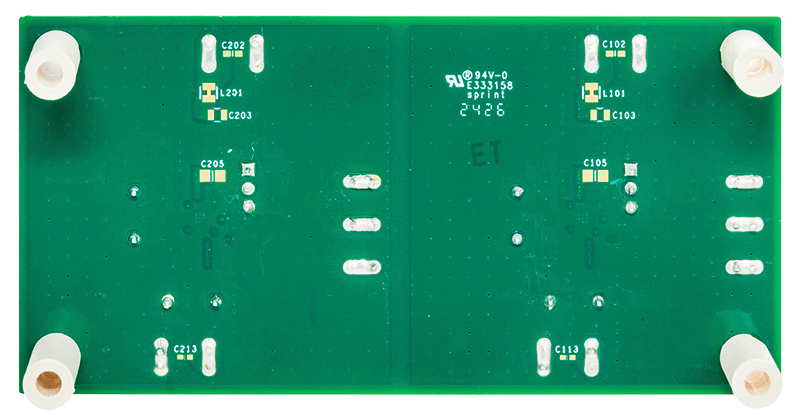

MAXM20343EVKIT/MAXM20344EVKIT Board Photo Angle View MAXM20343EVKIT/MAXM20344EVKIT Board Photo Top View MAXM20343EVKIT/MAXM20344EVKIT Board Photo Bottom View
