EVAL-ADXL362Z-MLP
製品概要
製品概要
Use for real-time evaluation, parameter testing, and general familiarization with the ADXL362.

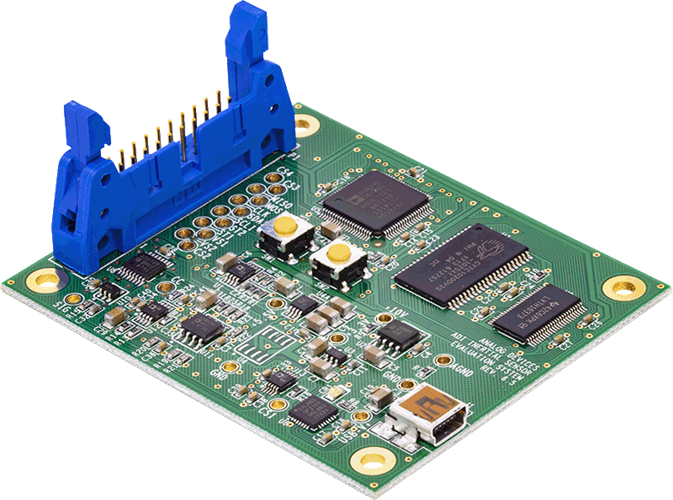

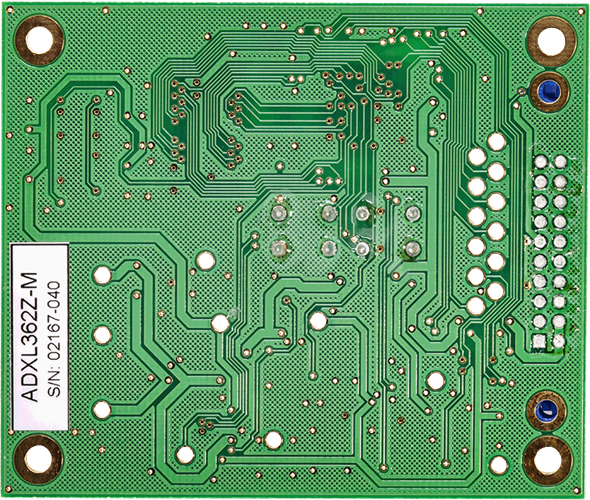

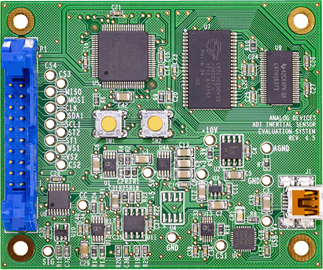

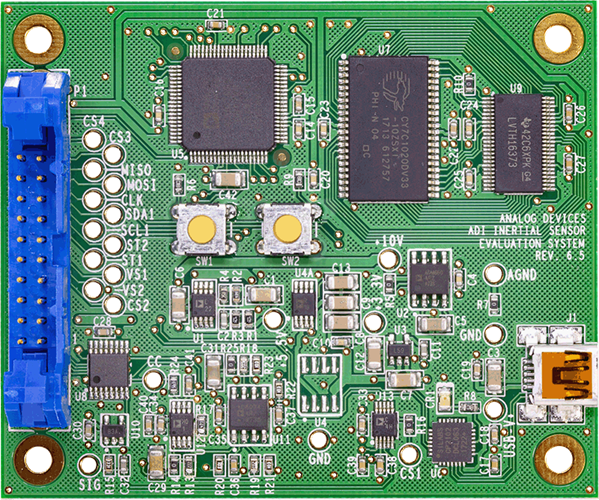

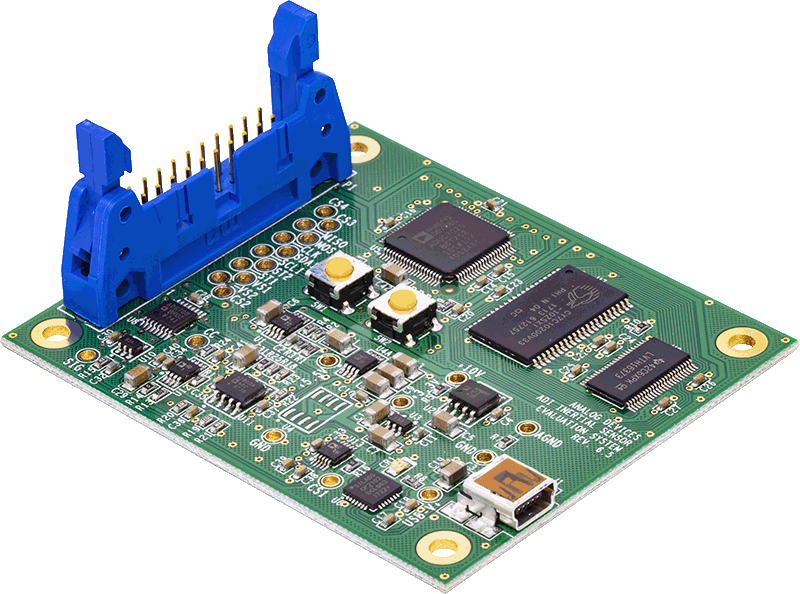

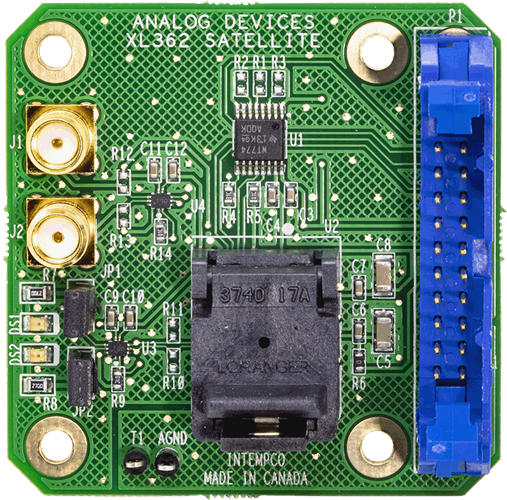

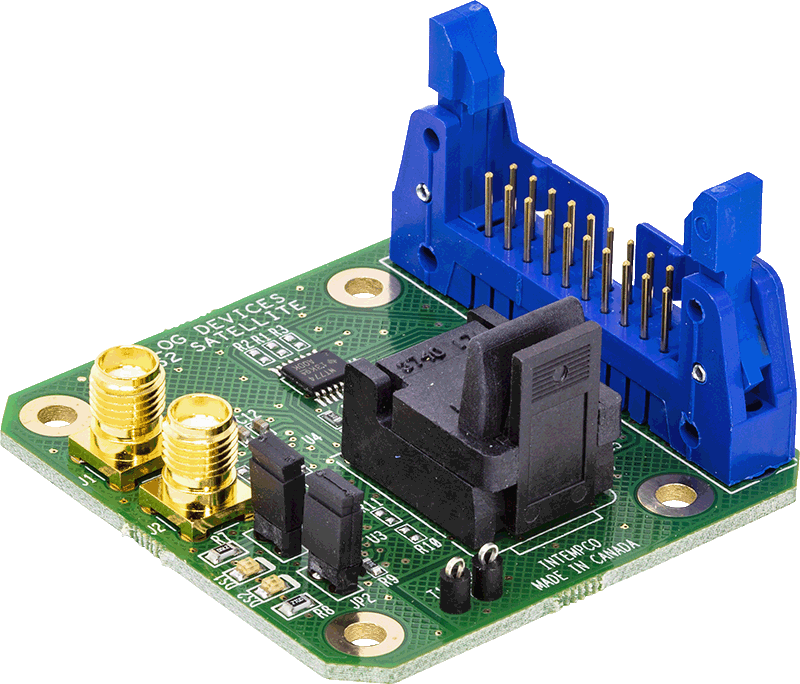

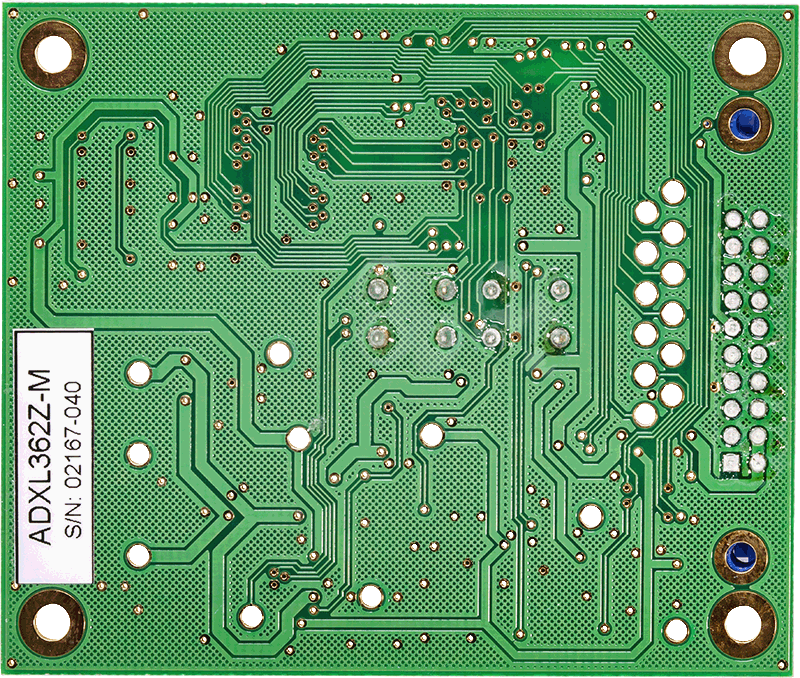

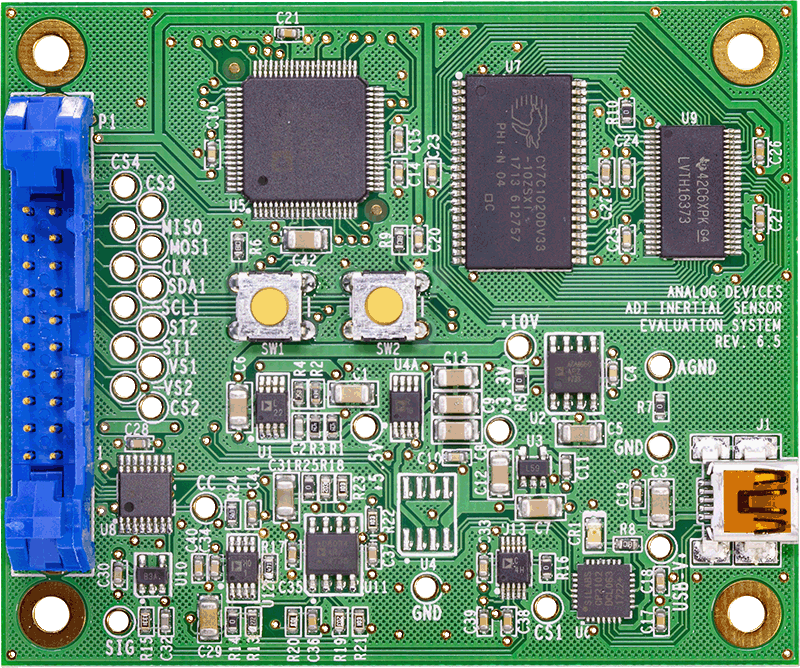

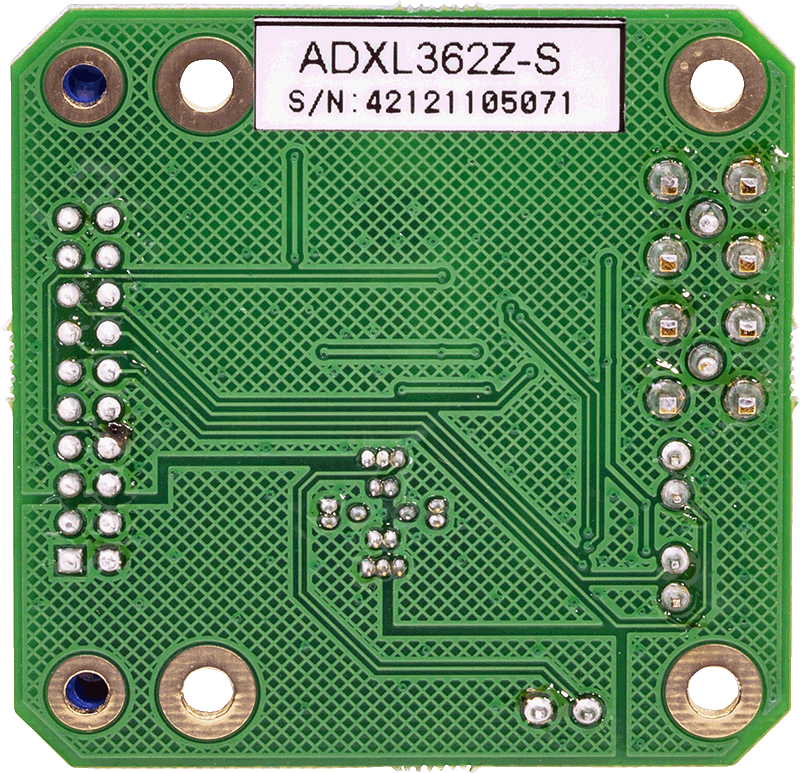

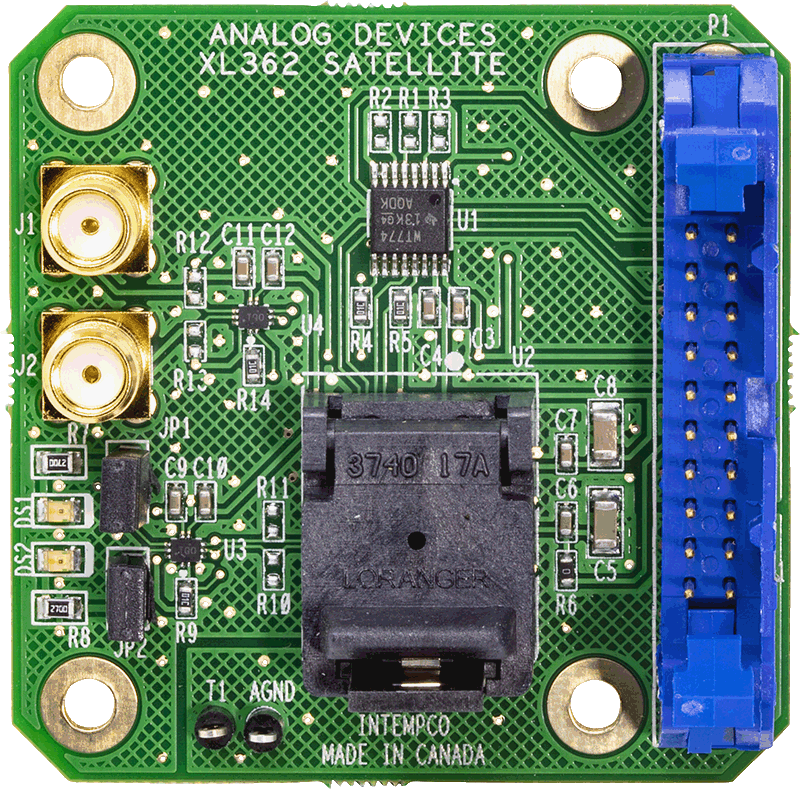

The EVAL-ADXL362Z-MLP is a complete system for real-time evaluation of the ADXL362 micropower, 3-axis, digital-ouptut MEMS accelerometer. This system is accompanied by a graphical user interface (GUI) that facilitates evaluation of parameters such as power consumption, temperature coefficient, noise, and more. The system consists of a motherboard and a satellite board. The sensor is housed in a socket on the satellite board, enabling evaluation of multiple parts using one evaluation system.

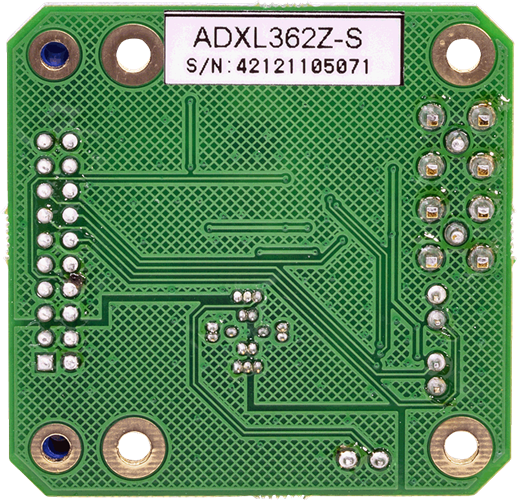

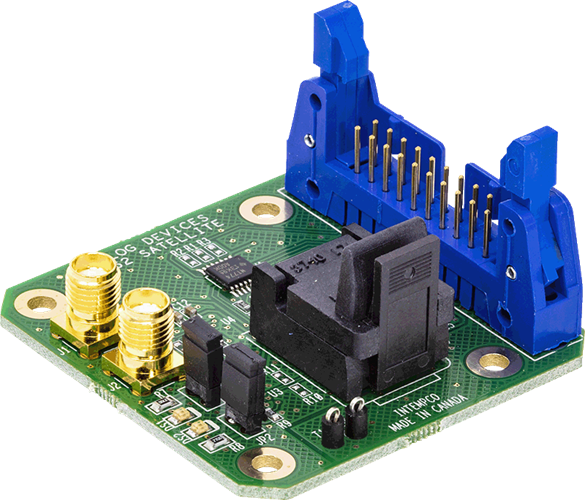

To order the complete system, order the EVAL-ADXL362Z-MLP. This kit includes a motherboard, satellite board, accelerometer, and cables. Additional satellite board kits can be ordered using the part number EVAL-ADXL362Z-S. Satellite kit orders include a satellite board and an accelerometer.
関連資料
-
UG-351: 超低消費電力、±2 G/±4 G/±8 G デジタル加速度センサーのブレークアウト・ボード2012/09/27PDF649 kB
-
EVAL-ADXL362Z-MLP2016/01/19WIKI
-
Motherboard Schematic2014/11/19PDF
-
Satellite Board Schematic2014/11/19PDF
