EVAL-ADA4806-1
ADA4806-1 Evaluation Board
製品概要
機能と利点
- Enables quick breadboarding/prototyping
- User defined circuit configuration
- Edge mounted Subminiature Version A (SMA) connector provisions
- Easy connection to test equipment and other circuits
製品概要
The Analog Devices, Inc., ADA4806-1RJ-EBZ evaluation board is designed to help users evaluate the ADA4806-1 low power, multimode, rail-to-rail amplifier, offered in an 8-lead SOT-23 package. The ADA4806-1RJ-EBZ is a bare board (that is, there are no components soldered to the board) that enables users to quickly prototype a variety of op amp circuits.

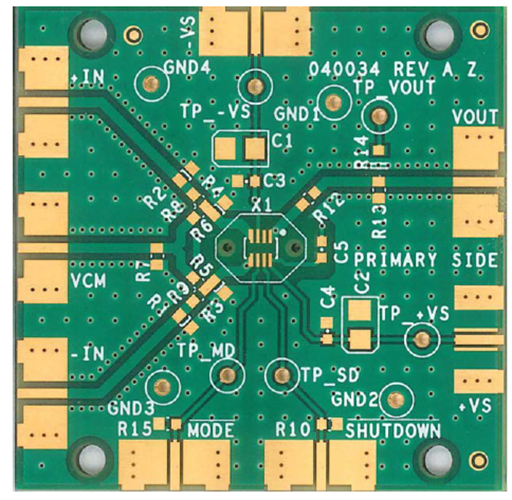

The ADA4806-1RJ-EBZ is a 2-layer printed circuit board (PCB) that accepts SMA edge mounted connectors on the inputs and outputs for efficient connection to test equipment or other circuitry. The ADA4806-1RJ-EBZ evaluation board components are primarily surface-mount technology (SMT) 0603 case size, with the exception of the electrolytic bypass capacitors (C1 and C2) which are 3528 case size.
関連資料
-
ADA4806-1: 0.2 μV/°C オフセット・ドリフト、105 MHz、低消 費電力、マルチモード、レール to レール・アンプ2015/09/01PDF654 K
