DC2347A
LTC2937 Socketed Programming Board [requires DC1613]
トップへ
製品概要
製品概要

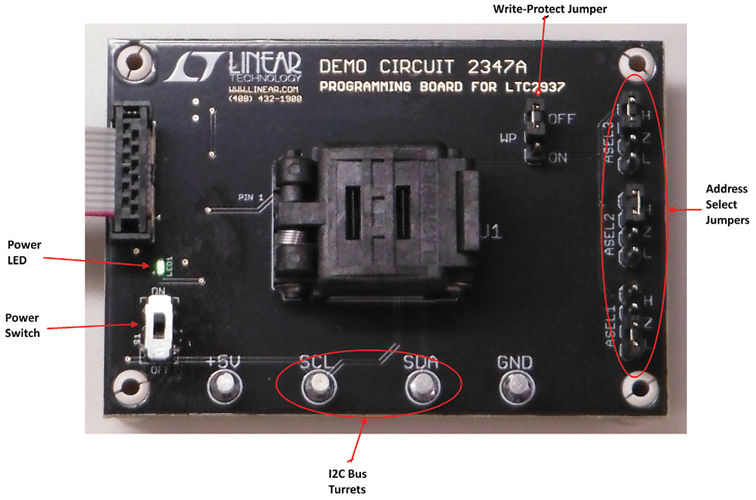

The DC2347A contains only those functions necessary to safely program and verify the LTC2937 configuration EEPROM. It serves no other purpose. The DC2347A holds the LTC2937 in a clamshell socket for convenient access and replacement of parts. The LTpowerPlay™ GUI software, running on a PC, provides a simple interface to program and verify the EEPROM with a user supplied configuration.
関連資料
-

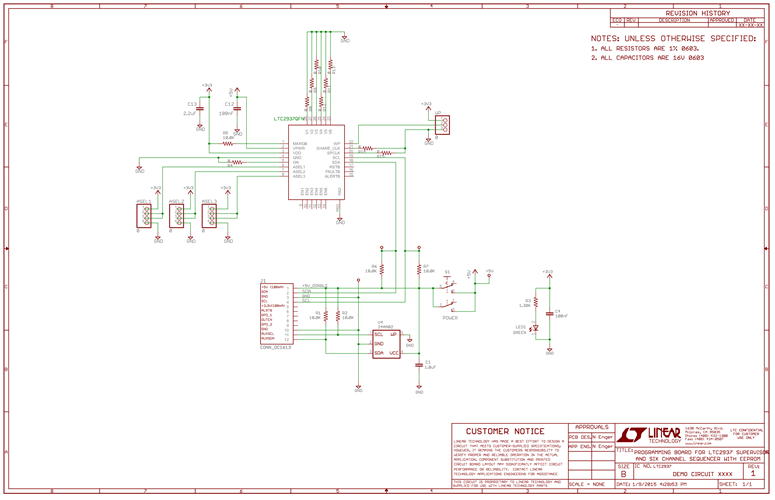

DC2347A - Schematic2015/09/30PDF58K
-
DC2347A - Demo Manual2015/09/30PDF647K
-
DC2347A - Design Files2015/09/30ZIP461K
