LF155

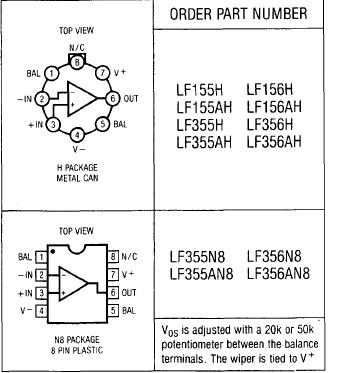

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now Obsolete

Our LF155/156 series features several improvements compared to similar types from other manufacturers: offset voltage drift with temperature and slew rate are guaranteed on all grades, not just on the more expensive "A" grades. Other specifications such as voltage gain and high temperature bias and offset currents are also improved.

The industry standard LF155/156 devices exhibit phase reversal at the output when the negative common-mode limit at the input is exceeded (i.e., from - 12V to - 15V with ±15V supplies). This can cause lock-up in servo systems.

As shown below, our LF155/156 does not have this problem due to unique phase reversal protection circuitry. For applications requiring higher performance, see the LT1055 and LT1056 data sheets.

Applications

• Output Amplifiers for D/A Converters
• Fast Sample and Hold Circuits
• High Speed Integrators
• Photocell Amplifiers
• High Input Impedance Buffers
