AD524S
製造中Aerospace Instrumentation Amplifier
- 製品モデル
- 2
- 1Ku当たりの価格
- 価格は未定
製品の詳細
|
|
The AD524 is a precision monolithic instrumentation amplifier designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high linearity, high common mode rejection, low offset voltage drift, and low noise makes the AD524 suitable for use in many data acquisition systems.
The AD524 has a low output offset voltage drift and low input offset voltage drift. In addition to the outstanding dc specifications the AD524 also has a 25MHz gain bandwidth product (G = 1000). To make it suitable for high speed data ac-quisition systems the AD524 has an output slew rate of 5 V/µs and settles in 15µs to 0.01% for gains of 1 to 100.
As a complete amplifier the AD524 does not require any external components for fixed gains of 1, 10, 100 and 1,000. For other gain settings between 1 and 1000 only a single resistor is required. The AD524 input is fully protected for both power on and power off fault conditions.
ドキュメント
データシート 1
高レベル放射線レポート 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|

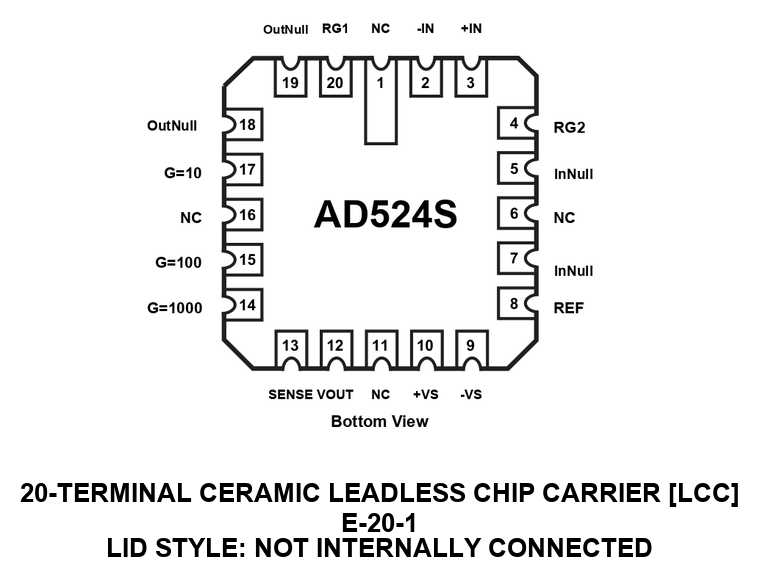

| 5962R8853901V2A | 20 ld LCC | ||

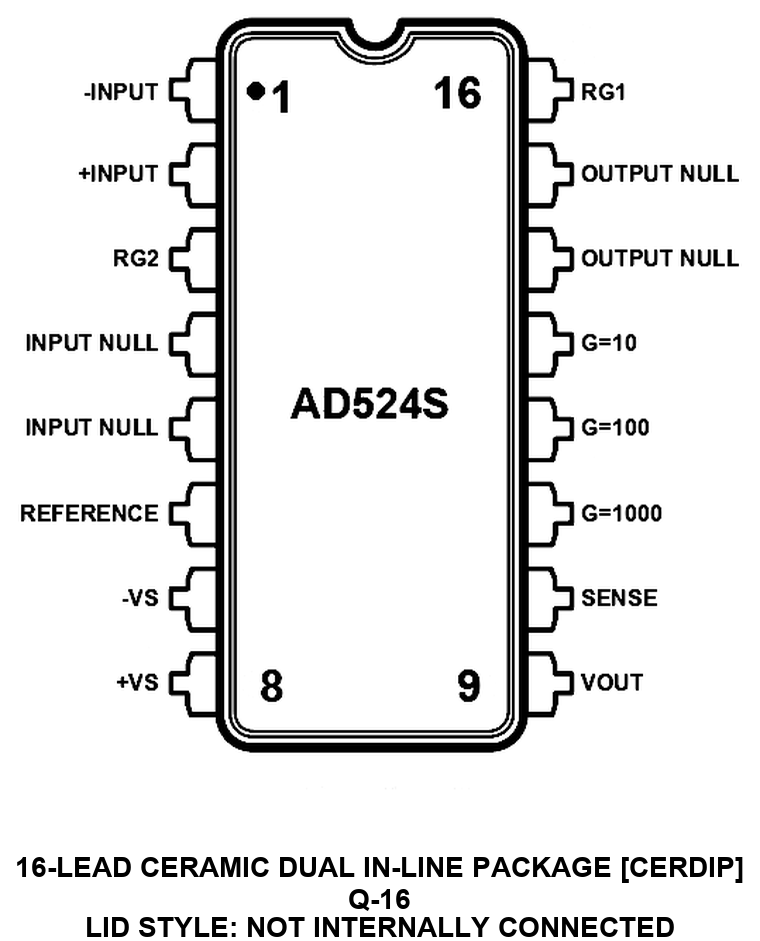

| 5962R8853901VEA | 16-Lead CerDIP |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
7 30, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices |
||
| 5962R8853901V2A | ||
| 5962R8853901VEA | ||
|
2 27, 2017 - 17_0028 AD524S Change in Wafer Diameter for Aerospace Models |
||
| 5962R8853901V2A | ||
| 5962R8853901VEA | ||
|
11 18, 2015 - 15_0219 Laser Marking Standardization for Aerospace Packages |
||
| 5962R8853901V2A | ||
| 5962R8853901VEA | ||
|
10 2, 2013 - 13_0163 Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices |
||
| 5962R8853901V2A | ||
| 5962R8853901VEA | ||
|
11 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines |
||
| 5962R8853901V2A | ||
| 5962R8853901VEA | ||
|
11 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines |
||
| 5962R8853901V2A | ||
| 5962R8853901VEA | ||
|
6 1, 2011 - 11_0088 Top and Bottom Mark Standardization for Certain LCC (Leadless Chip Carrier) and Metal Can Packages |
||
| 5962R8853901V2A | ||
|
11 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages. |
||
| 5962R8853901VEA | ||
これは最新改訂バージョンのデータシートです。
