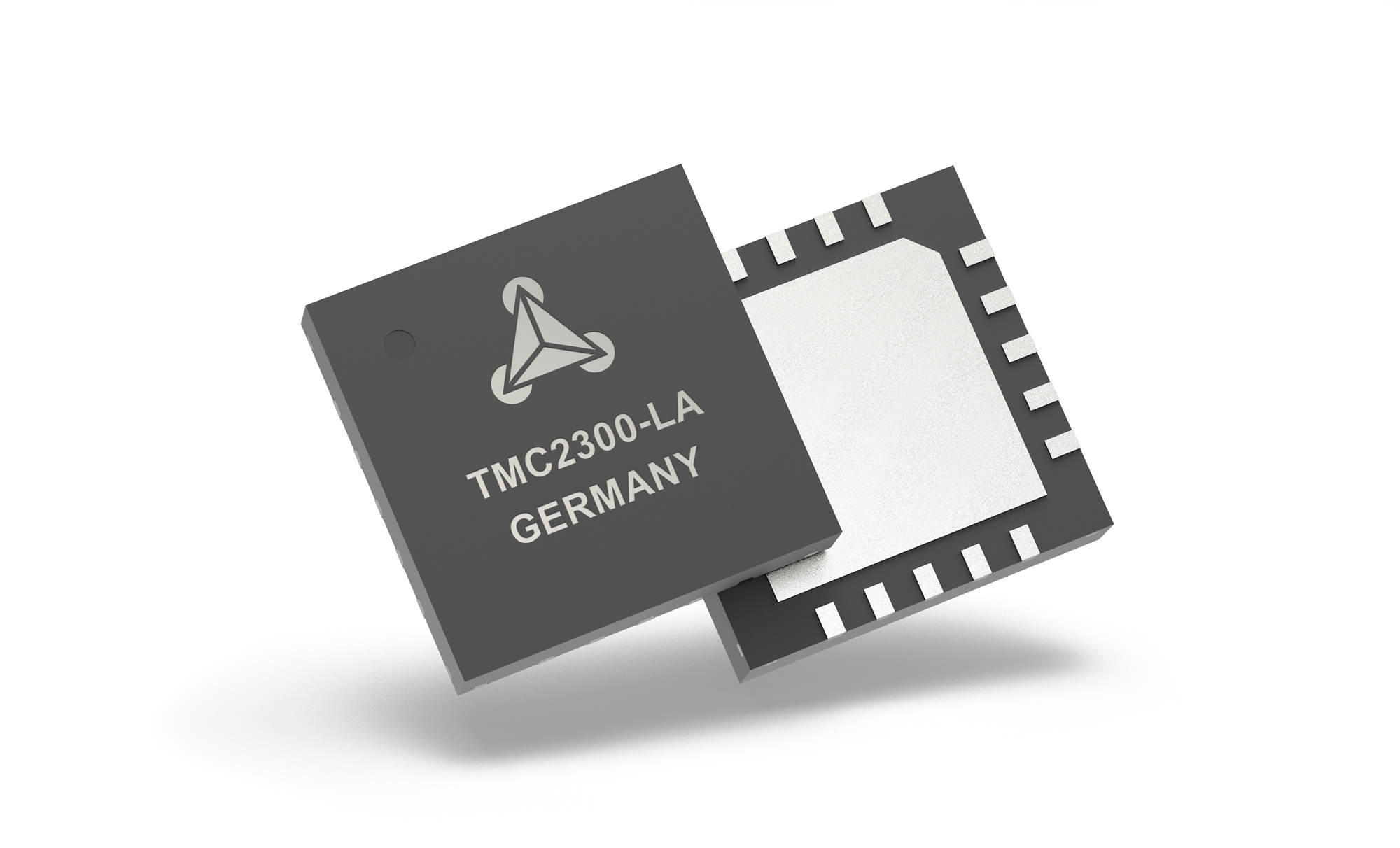

TMC2300

• 2-phase stepper motor up to 1.2A coil current (2A peak)
• Supply Voltage 2 to 11V DC
• Standby < 50nA typical current draw
• UART for advanced configuration options
• 1 to 256 microsteps
• Step/Dir interface
• StealthChop2^™ silent motor operation
• Stall detection StallGuard4^™ in StealthChop^™ mode
• 1.2A RMS, 2 to 11V

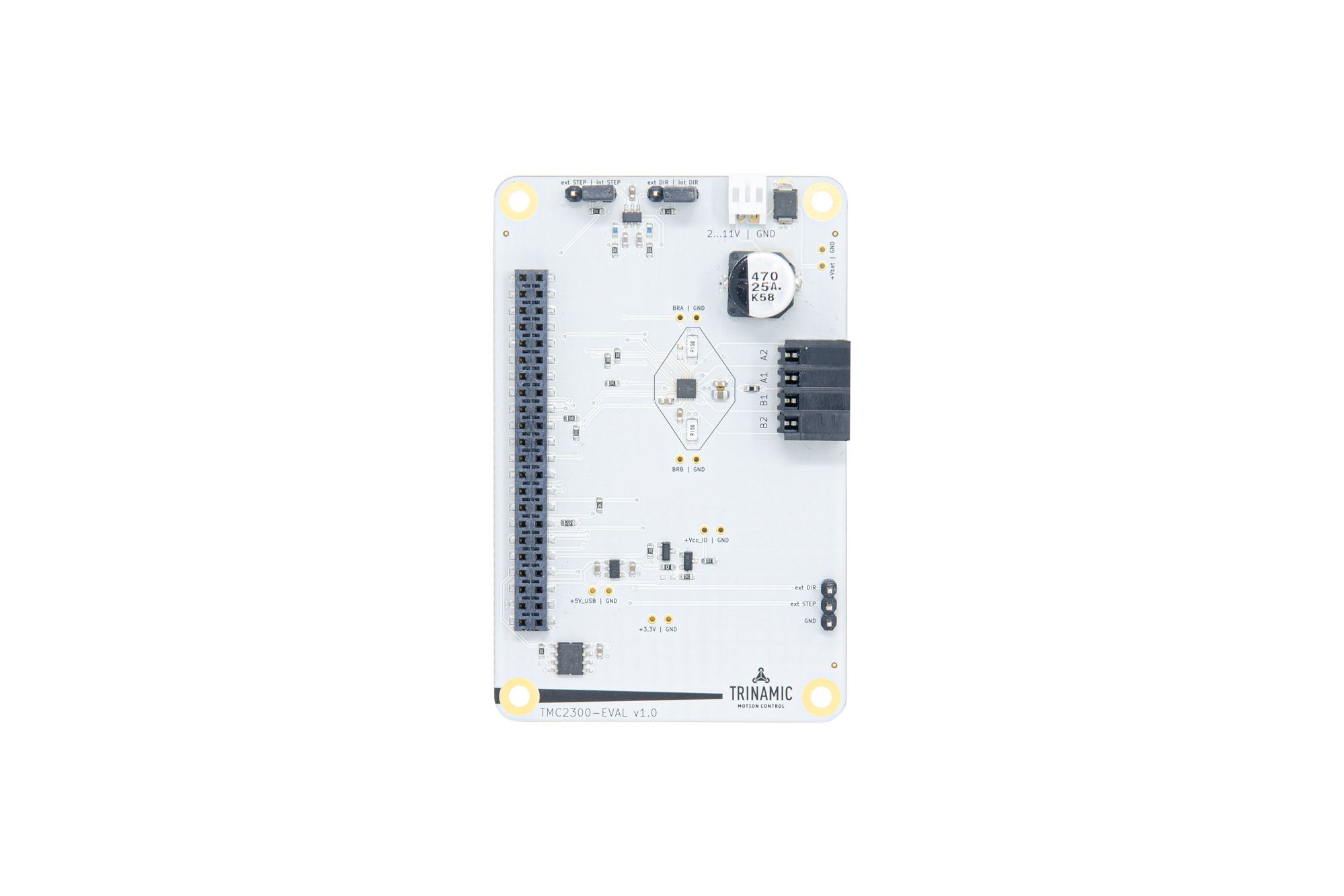

The TMC2300-EVAL allows you to explore all functions of the TMC2300-LA.

The TMC2300-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC2300-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2300 are accessible with probes on the bridge board. TMC2300-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

• 2-phase stepper motor up to 1.0A coil current
• 3.5V - 6V battery powered operation range
• Li-Ion cell charger via USB-C
• ESP32-PICO-D4 processor with integrated WiFi and BLE capabilities
• UART and USB-C for serial communication and programming
• StealthChop2™ silent motor operation
• Stall detection StallGuard4™ in StealthChop™ mode
• CoolStep™ smart current control
• 1A RMS, 3.5 to 6V

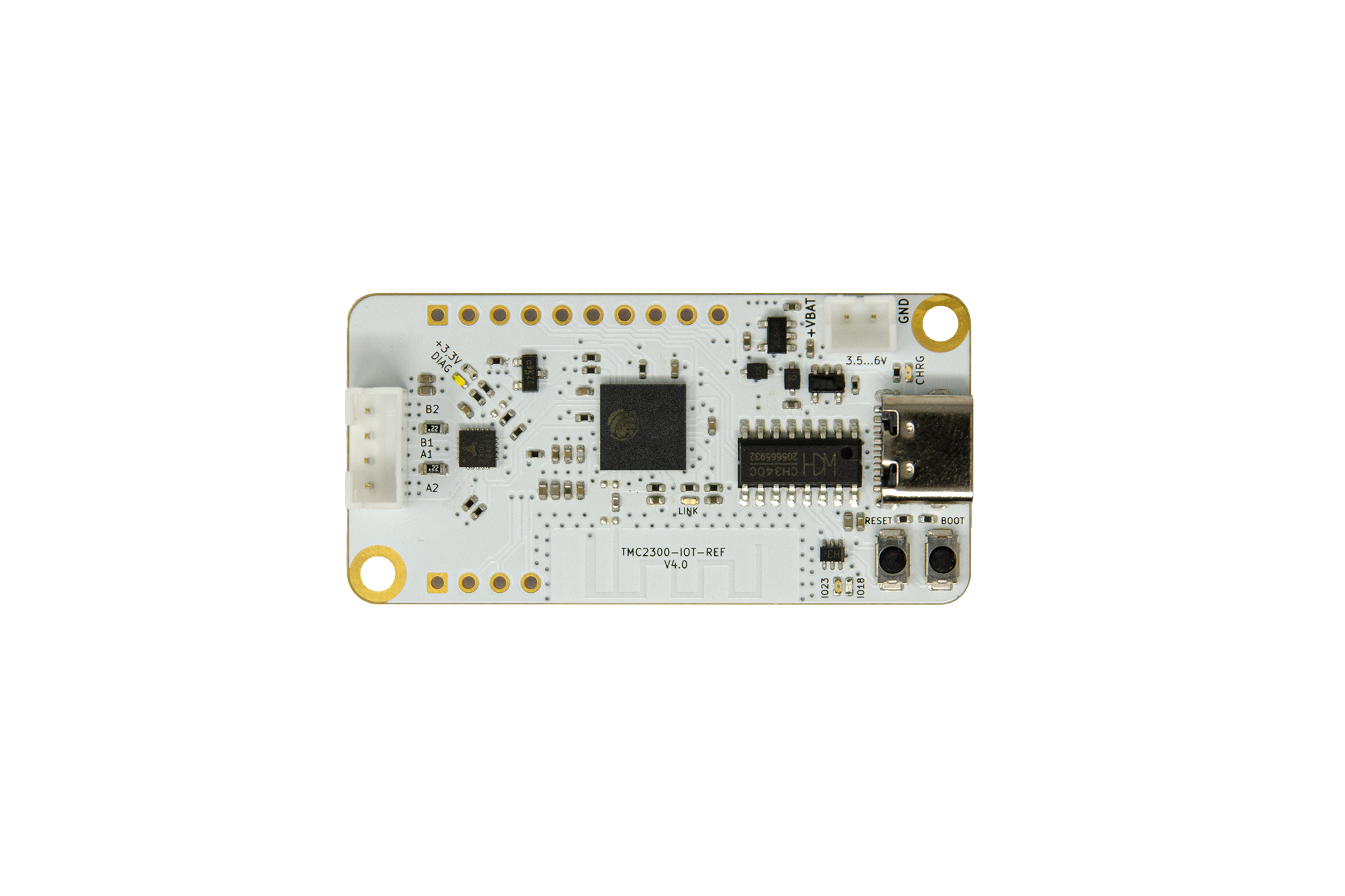

The TMC2300-IOT-REF is a completely open-source reference design for easy evaluation of the TMC2300-LA stepper motor driver IC. Whether it’s a POS device, toys, office and home automation, or mobile medical devices, Engineers can quickly prototype their IoT applications running on 3.5 – 6 V batteries. Besides the low-voltage stepper motor driver, the board features a Li-Ion cell charger via USB-C, a processor with integrated WiFi and BLE capabilities, as well as UART and USB-C for serial communication and programming. Other features including StealthChop2™, StallGuard4™ and CoolStep™ bring industrial-grade solutions to convenient, handheld devices.

• CoolStep™
• StealthChop2™
• StallGuard4™
• MicroPlyer™
• 1 to 256 Microsteps
• 1.2A RMS, 2 to 11V

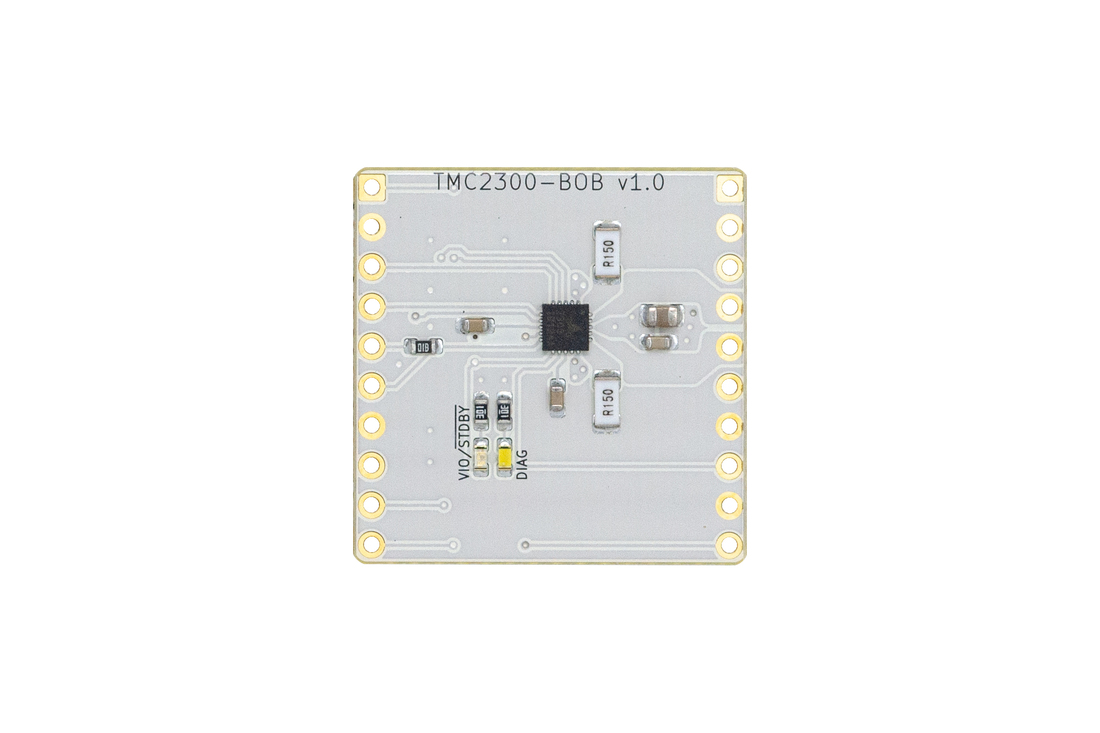

The TMC2300 breakout board is a development board with the dedicated TMC2300-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
