DC2769A-A
LTC6990/LTC4124 Demo Board | 10mA Wireless Li-Ion Charger Demonstration Kit
Top
Overview
Product Details

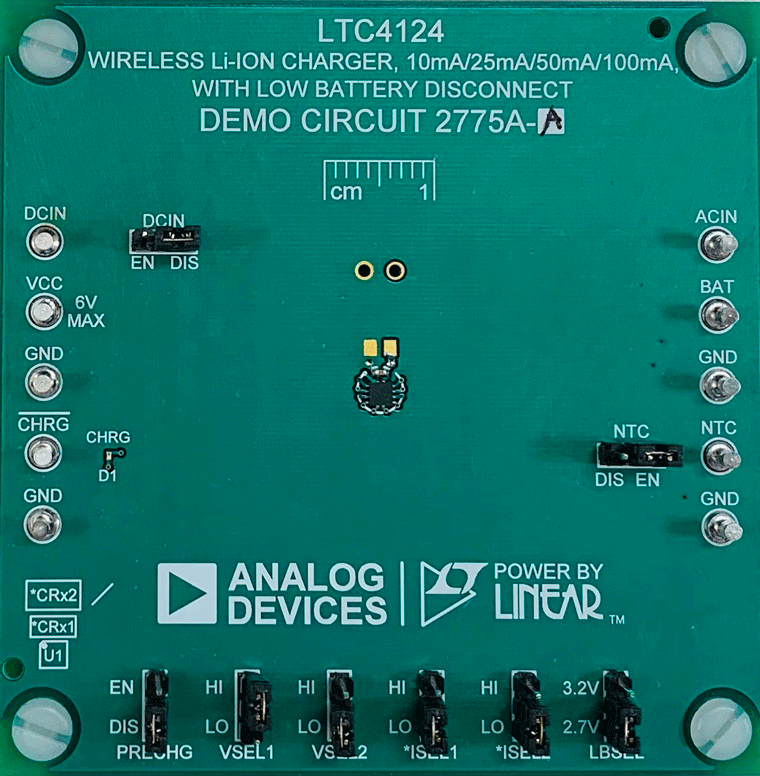

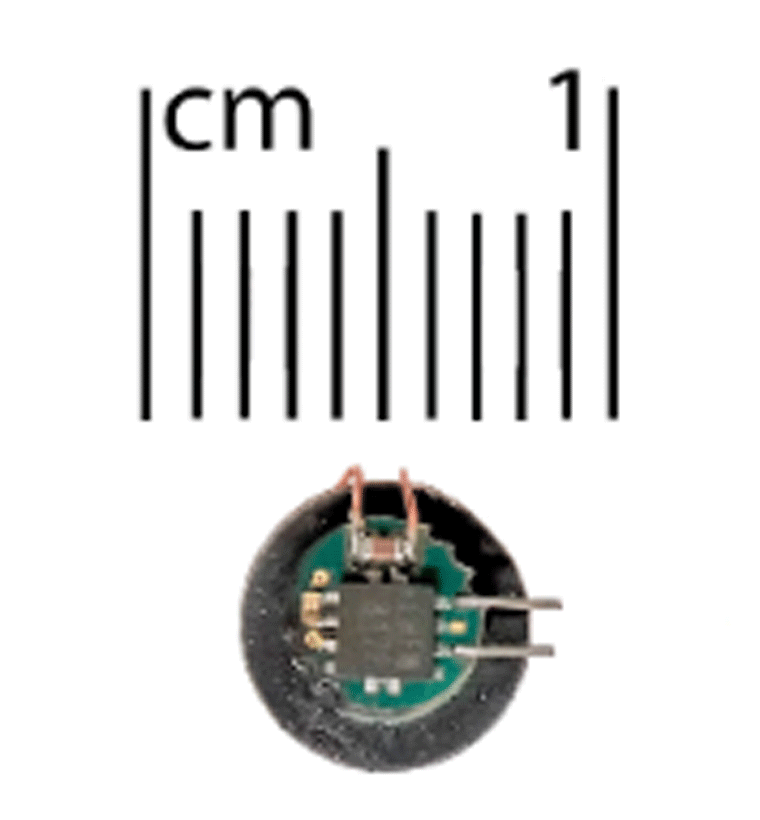

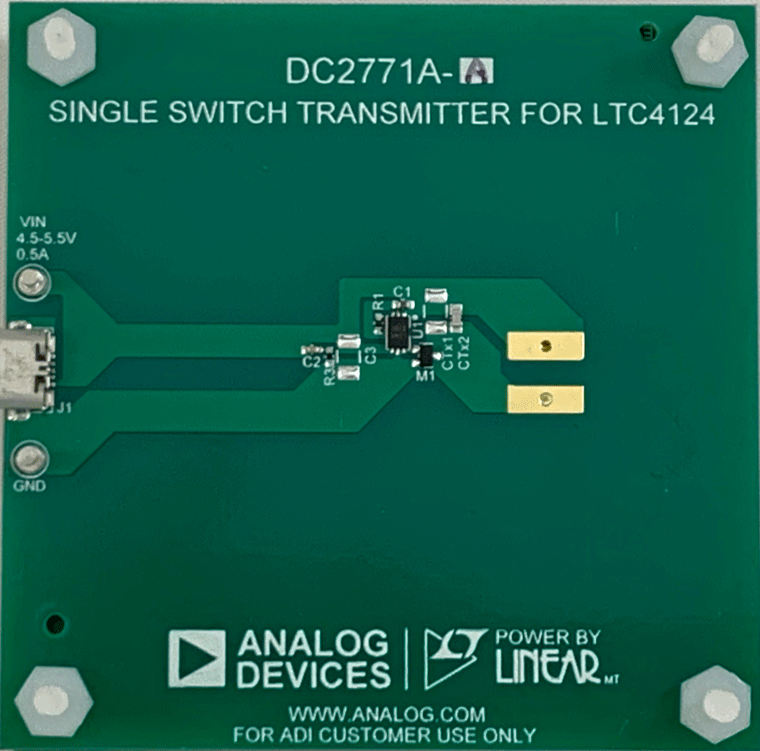

DC2769A-A-KIT is a kit of the DC2771A-A transmitter board, featuring LTC6990, the DC2775A-A, featuring LTC4124, and the DC2774A application-sized receiver board featuring LTC4124. The DC2775A-A receiver can charge a single Li-Ion battery at up to 10mA with an air gap of 0.5mm between the transmit and receive coils.Markets and Technologies
Applicable Parts
Documentation & Resources
-
DC2769A-A - Schematic11/4/2019ZIP167K
-
DC2769A-A-KIT Demo Manual11/4/2019PDF1 M
-
DC2769A-A - Design Files11/4/2019ZIP9 M
