DC2737A

LT8301ES5 Demo Board | No-Opto Isolated Flyback Converter, V_IN = 10V to 32V, V_OUT = 5V @ up to 700mA

Top

Overview

Product Details

Product Details

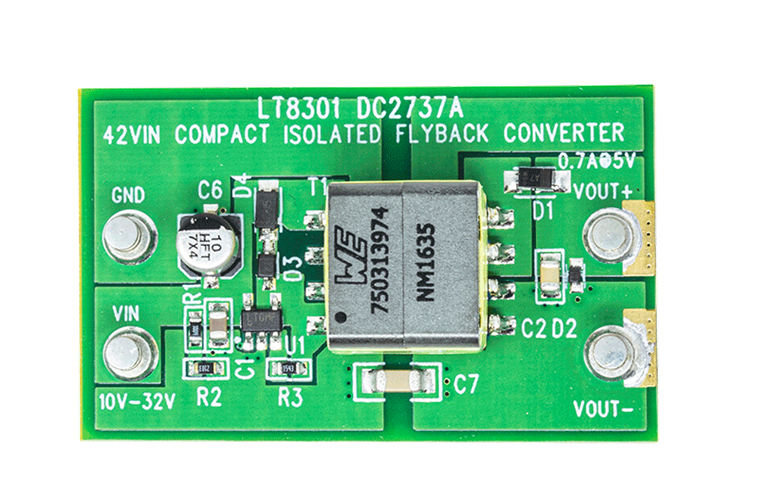

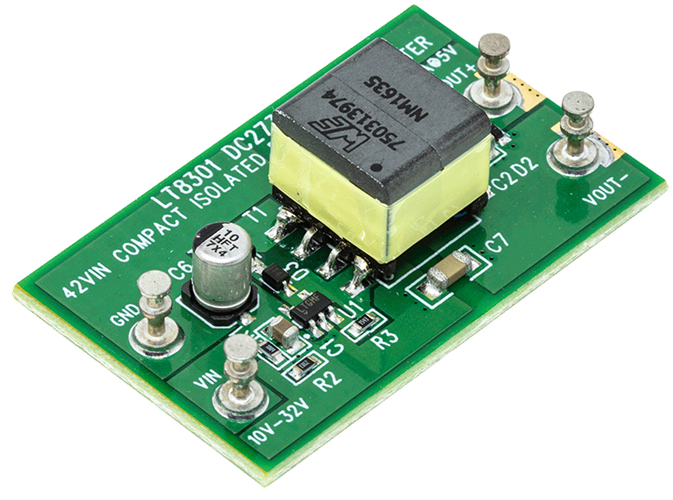

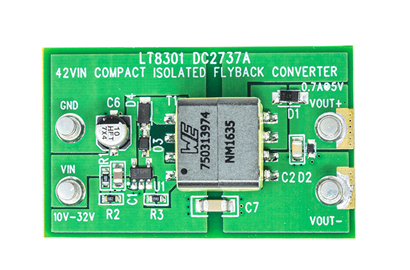

Demonstration circuit 2737A is an isolated flyback converter featuring the LT8301. The demo circuit outputs 5V from input 10V to 32V, with a nominal 24V. The output current capability increases with the input voltage. The standby input current of the demo circuit is less than 950μA (typical) at V_IN = 24V.

Markets and Technologies

Healthcare Solutions (1)
- Therapy Device Solutions for Healthcare
Aerospace and Defense Systems (1)
- eVTOL, Battery Management Systems (BMS), and Power Solutions
Automotive Solutions (2)
- Electric Vehicle Powertrain Solutions
- Automotive Battery Management Systems
Instrumentation and Measurement Solutions (3)
Industrial Automation (1)
- Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)

Applicable Parts

LT8301

Documentation & Resources

Demo Board Schematic

DC2737A - Schematic
10/31/2017

PDF

25K

User Guide

DC2737A - Demo Manual
10/31/2017

PDF

263K

Evaluation Design File

DC2737A - Design Files
10/31/2017

ZIP

838K
