DC2138B
LT8301ES5 Isolated Demo Board | No-Opto Flyback, 10V ≤ VIN ≤ 32V, VOUT = 5V @ 0.7A to 1A
Top
Overview
Product Details

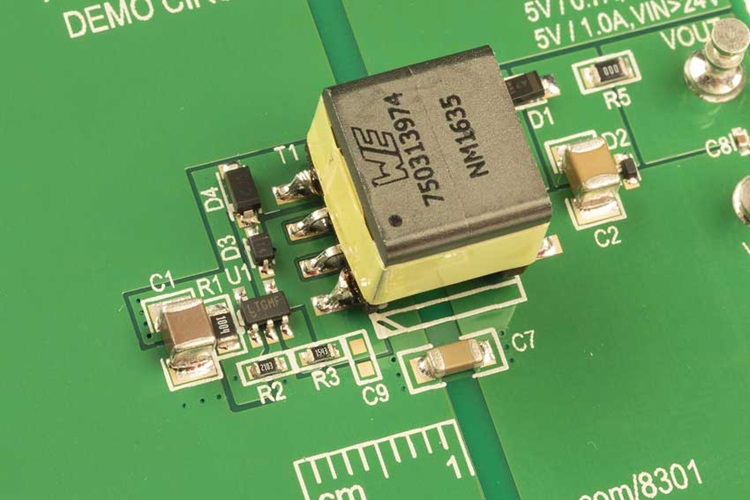

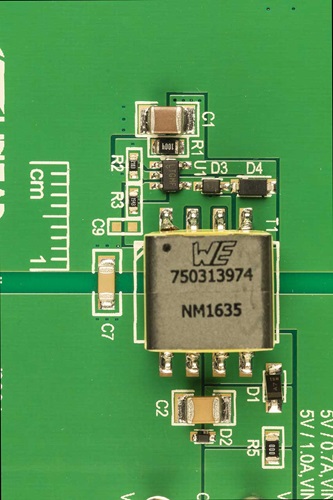

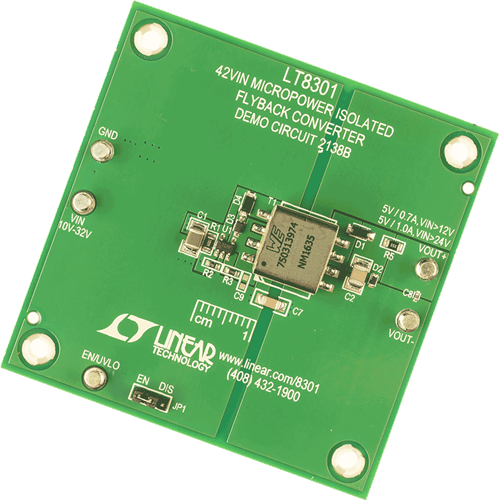

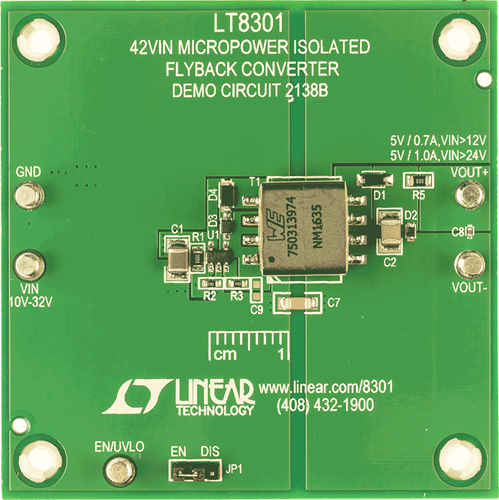

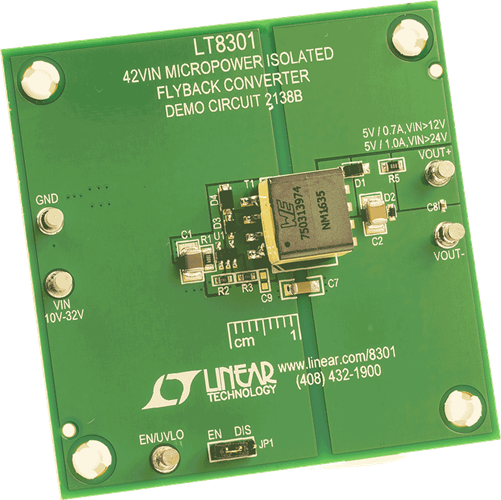

Demonstration circuit 2138B is an isolated flyback converter featuring the LT8301. This demo circuit outputs 5V from a 10V to 32V input, with a nominal of 24V. The output current capability increases with the input voltage. The standby input current of the demo circuit is less than 950μA (typical) at VIN = 24V.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

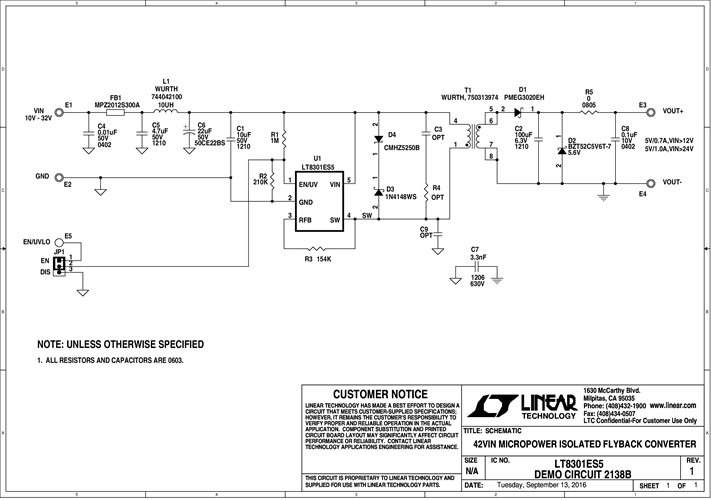

DC2138B - Schematic10/19/2016PDF31K
-
DC2138B - Demo Manual10/19/2016PDF433K
-
DC2138B - Design Files10/19/2016ZIP2M
