RH6105

PRODUCTION

Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: Starting From $436.56

Viewing:

Part Details

Processed in Compliance with LTC Certified MIL-PRF-38535 Class V Flow*
Very Wide, Over-the-Top, Input Common Mode Range

Extends 44V Above V– (Independent of V+)
Extends –0.3V Below V–

Wide Power Supply Range: 2.85V to 36V
Input Offset Voltage: 400μV Maximum
Gain Accuracy: 1% Maximum
Gain Configurable with External Resistors
High Impedance Sense Input When Powered Down

Radiation Performance*

Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:

200kRad (Si), per condition A at 50Rads(Si)/sec
50kRad (Si), per condition D at 10mRads(Si)/sec
ELDRS Pass 50kRad(Si)*

Displacement Damage Defect (DDD) up to 1E12 Neutrons/cm²*

* Radiation and Qualification completed on the packaging vendor’s assembled unit. Refer to MSK496RH for ELDRS and DDD.

The RH6105 is a micropower, precision current sense amplifier with a very wide input common mode range. The RH6105 monitors unidirectional current via the voltage across an external sense resistor. The input common mode range extends from –0.3V to 44V, with respect to the negative supply voltage (V–). This allows the RH6105 to operate as a high side current sense monitor or a low side current sense monitor. It also allows the RH6105 to monitor current on a negative supply voltage, as well as continuously monitor a battery from full charge to depletion. The inputs of RH6105 can withstand differential voltages up to ±44V, which makes it ideal for monitoring a fuse or MOSFET switch.

The RH6105 can operate from an independent power supply of 2.85V to 36V. When V+ is powered down, the sense pins are biased off. This prevents loading of the monitored circuit, irrespective of the sense voltage. The RH6105 is currently available only from MS Kennedy in packaged form.

Third Party Vendor Availability

Analog Devices partners with third party vendors who assemble and test packaged products with RH Dice inside.

or MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.


Part Number	Description
MSK197RH	Rail To Rail Current Sense Amplifier
MSK496RH	Quad Rail-To-Rail Current Sense Amplifier
MSK6000RH	Dual High Side Driver with Current Sense

APPLICATIONS

High Side or Low Side Current Sensing
Current Monitoring on Positive or Negative Supply Voltages
Battery Monitoring
Fuse/MOSFET Monitoring
Power Management

Part Models: 3
1ku List Price: Starting From $436.56

Documentation

Data Sheet 1

RH6105MW: Precision, Extended Input Range Current Sense Amplifier Data Sheet (Rev.0) 09/21/2021

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH6105MILDICE	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys

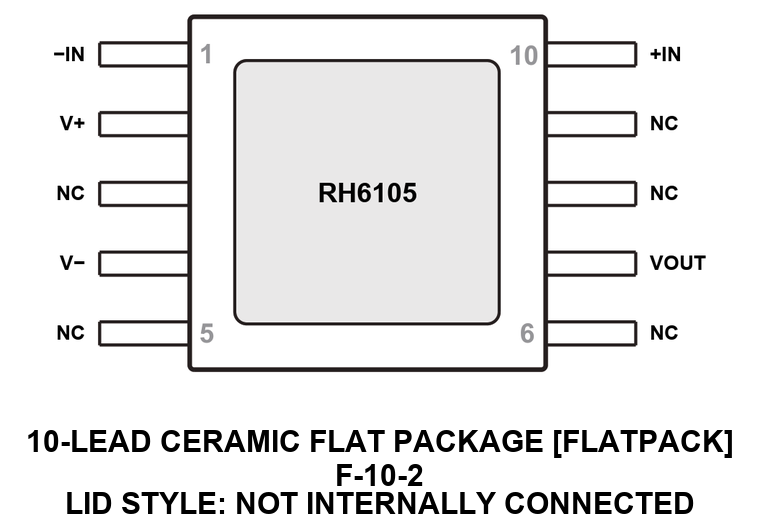

RH6105MW	10-Lead FlatPack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
RH6105MW-EMX	10-Lead FlatPack	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
		PCN20_0325_Form Material_Report Qualification Results Summary
RH6105MILDICE
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH6105MW
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH6105MW
RH6105MW-EMX

This is the most up-to-date revision of the Data Sheet.
