RH1014M

PRODUCTION

Quad Precision Operational Amplifier

Data Sheet (Rev. I) Product Selection Table

Part Models: 4
1ku List Price: Starting From $225.59

Viewing:

Part Details

MIL-PRF-38535 Class V Compliant Version – 5962R89677
Guaranteed Performance Over –55 to +125°C
- Input Offset Voltage: 550µV
- Low Offset Voltage Drift: 2.5µV/°C
- Low Offset Current: 20nA
Gain Bandwidth Product: 500kHz
Minimum Slew Rate: 0.2V/mS
Low Current Noise: Typically 0.07pA/√Hz
Maximum Supply Current: 0.7mA per Amplifier
Supply Voltage ±22V (Absolute Maximum)
Differential Input Voltage ±30V (Absolute Maximum)
Single Supply Operation
Available in CERPAC and Ceramic DIP

Radiation Performance

Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- 50kRad (Si), per condition D at 10mRads(Si)/sec
- ELDRS Pass 50kRad(Si)
Please Also Refer to RH1013 Web Page for Radiation Reports

Part Models: 4
1ku List Price: Starting From $225.59

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

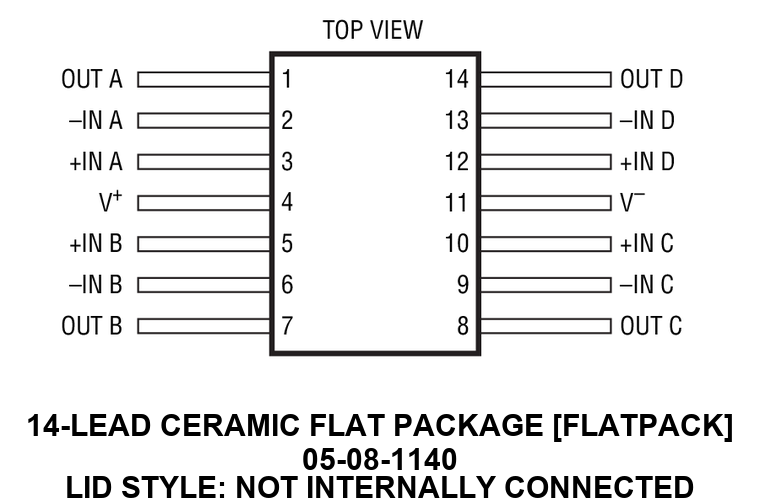

5962R8967703VDA	14-Lead Flatpak (Metal Sealed Bottom Braised Hermetic)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
RH1014MJ	14-Lead CERDIP (Narrow 0.3 Inch, Hermetic)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
RH1014MW	14-Lead Flatpak (Metal Sealed Bottom Braised Hermetic)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
RH1014MW-EMX	CERPAK(HERM CER SRF MOUNT)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
5962R8967703VDA	PRODUCTION
RH1014MW
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
5962R8967703VDA	PRODUCTION
RH1014MW
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
5962R8967703VDA	PRODUCTION
RH1014MW
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH1014MW

This is the most up-to-date revision of the Data Sheet.
