MAX4927
PRODUCTION1000 Base-T, ±15kV ESD Protection LAN Switch
High-Speed Analog Switch for Gigabit Ethernet Applications that Switch the Signals from Two Interface Transformers and Connect Them to a Single Ethernet Controller
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- ESD Protection
- ±15kV–IEC 61000-4-2 Air-Gap Discharge
- ±8kV–IEC 61000-4-2 Contact Discharge
- ±15kV–Human Body Model
- Single +3.0V to +3.6V Power-Supply Voltage
- Low 4Ω (typ), 6.5Ω (max) On-Resistance (RON)
- Ultra-Low 8pF (typ) On-Capacitance (CON)
- -23dB Return Loss (100MHz)
- -3dB Bandwidth: 650MHz
- Optimized Pin Out for Easy Transformer and PHY Interface
- Built-In LED Switches for Switching Indicators to Docking Station
- Low 450µA (max) Quiescent Current

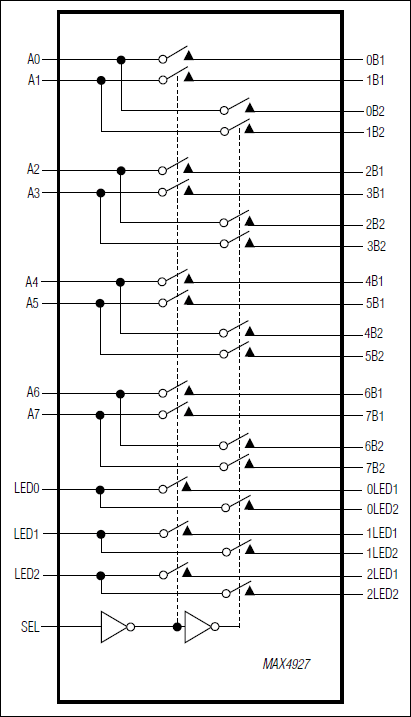

- Bidirectional 8 to 16 Multiplexer/Demultiplexer
- Standard Pin Out, Matching the PI3L500-A and STMUX1000L
- Space-Saving Lead-Free Package
- 56-Pin, 5mm x 11mm, TQFN Package
The MAX4927 meets the needs of high-speed differential switching, including that of Gigabit Ethernet (10/100/1000) Base-T switching as well as LVDS and LVPECL switching. The MAX4927 provides enhanced ESD protection up to ±15kV and excellent high-frequency response, making the device especially useful for interfaces that must go to an outside connection.
The MAX4927 offers extremely low capacitance (CON), as well as low on-resistance (RON), for low-insertion loss and very wide bandwidth. In addition to the four pairs of DPDT switches, the MAX4927 provides LED switching for laptop computer/docking station use.
The MAX4927 is pin-to-pin equivalent to the PI3L500-A and STMUX1000L. The MAX4927 can replace either device in those applications, improving ESD protection and eliminating external ESD components. The MAX4927 is available in a space-saving 56-pin TQFN package and operates over the extended -40°C to +85°C temperature range.
Applications
- Board-Level Redundancy Protection
- LVDS and LVPECL Switching
- Notebooks and Docking Stations
- Servers and Routers with Ethernet Interfaces
- SONET/SDH Signal Routing
- T3/E3 Redundancy Protection
