MAX2092
PRODUCTION700MHz to 2700MHz Analog VGA with Threshold Alarm Circuit and Error Amplifier for Level Control
Industry's Highest Linearity Analog RF VGA with Integrated Alarm and Leveling Control
- Part Models
- 2
- 1ku List Price
- Starting From $10.43
Part Details
- Wide Band Analog VGA Increases System Performance
- 700MHz to 2700MHz RF Frequency Range
- High Linearity
- +32.5dBm OIP3
- +18.2dBm Output -1dB Compression Point
- 18.1dB Gain with 40.4dB Attenuation Range and 0.03dB Gain Variation Over 100MHz Bandwidth at 1835MHz
- 5.2dB Noise Figure (Includes Attenuator Insertion Loss)
- Integrated Error Amplifier and Alarm Circuit Simplifies ALC Operation
- Lowers Power Consumption with Power-Down Capability
- Package with Exposed Pad Improves Heat Dissipation and System Performance

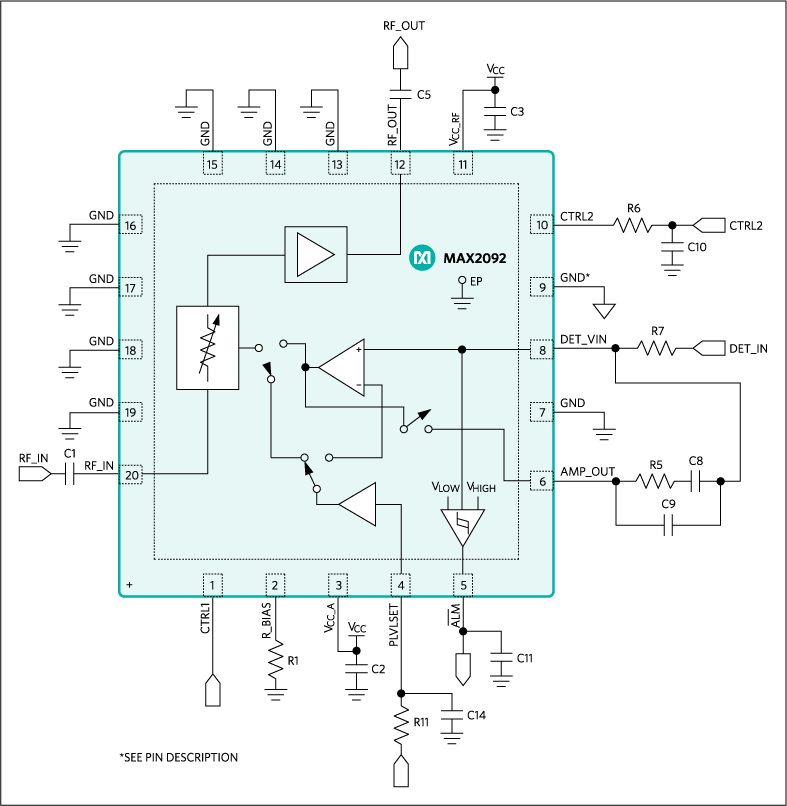

The MAX2092 high-linearity analog variable-gain amplifier (VGA) is a monolithic SiGe BiCMOS attenuator/amplifier/error amplifier with an alarm circuit designed to interface with 50Ω systems operating in the 700MHz to 2700MHz frequency range. The device features a gain range of 18.1dB to -22.3dB, a noise figure of 5.2dB, OIP3 linearity of +32.5dBm, and a wide RF bandwidth. Each of these features makes the device an ideal VGA for numerous receiver and transmitter applications. When paired with the MAX2091 or MAX2091B variable gain upconverter, a complete 2-chip IF-RF signal conditioning solution is possible for microwave point-to-point transmitters.
The MAX2092 operates from a single +5V supply, and is available in a compact 20-pin TQFN package (5mm x 5mm) with an exposed pad. Electrical performance is guaranteed over the extended temperature range from TC = -40°C to +95°C.
Applications
- Cellular Applications
- Fixed Broadband Wireless Access
- LTE Applications
- Microwave Point-to-Point Receivers and Transmitters
- RF Variable-Gain Stages
- Temperature Compensation Circuits
- WiMAX® Applications
- Wireless Local Loop
Documentation
Data Sheet 1
Reliability Data 1
Technical Articles 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX2092ETP+ | 20-LFCSP-5X5X0.75 | ||
| MAX2092ETP+T | 20-LFCSP-5X5X0.75 |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Aug 14, 2023 - 2275A WAFER FAB |
||
| MAX2092ETP+ | PRODUCTION | |
| MAX2092ETP+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Analog Control Variable Gain Amplifiers (VGAs) 4 | ||
| MAX2090 | PRODUCTION | 50MHz to 1000MHz Analog VGA with Threshold Alarm Circuit and Error Amplifier for Level Control |
| MAX2091 | PRODUCTION | 50MHz to 500MHz Analog VGA, 1735MHz to 1935MHz Upconverting Mixer with Image Filtering, Threshold Alarm Circuit, and Error Amplifier for Level Control |
| MAX2056 | PRODUCTION | 800MHz to 1000MHz Variable-Gain Amplifier with Analog Gain Control |
| MAX2057 | PRODUCTION | 1300MHz to 2700MHz Variable-Gain Amplifier with Analog Gain Control |
