MAX2090
PRODUCTION50MHz to 1000MHz Analog VGA with Threshold Alarm Circuit and Error Amplifier for Level Control
Highest Linearity Analog VGA with Integrated Alarm and Leveling Control
- Part Models
- 2
- 1ku List Price
- Starting From $10.23
Part Details
- Wideband Coverage
- 50MHz to 1000MHz RF Frequency Range
- High Linearity
- +38dBm OIP3 (100MHz)
- +17.5dBm Output -1dB Compression Point (100MHz)
- 26.1dB Gain
- 37dB Attenuator Range
- 4dB Noise Figure (Includes Attenuator Insertion Loss)
- 0.25dB Gain Variation Over 100MHz Bandwidth
- Analog Attenuator Controlled with External Voltage
- Alarm Circuit with Adjustable Threshold
- Extended +4.75V to +5.8V Supply Range
- Lead(Pb)-Free Package
- Power-Down Capabilities

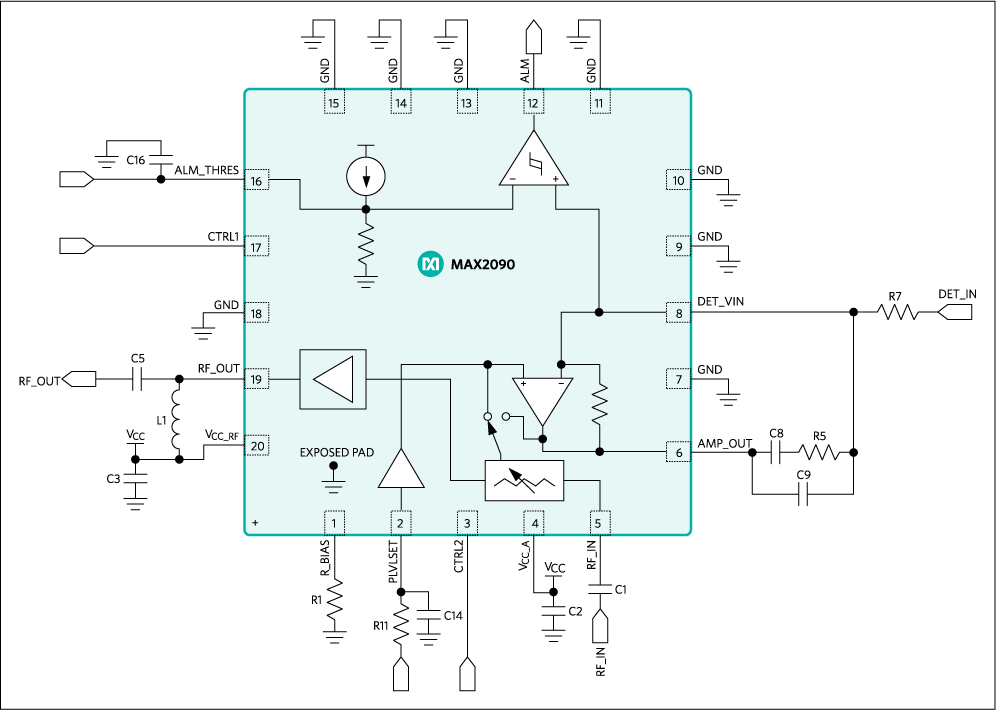

The MAX2090 high-linearity analog variable-gain amplifier (VGA) is a monolithic SiGe BiCMOS attenuator, amplifier, error amplifier, and alarm circuit, designed to interface with 50Ω systems operating in the 50MHz to 1000MHz frequency range. An external analog control voltage controls the analog attenuator. The device features a gain range of -10.9dB to +26.1dB, a noise figure of 4dB, OIP3 linearity of +38dBm, and a wide RF bandwidth. Each of these features makes the device an ideal VGA for numerous receiver and transmitter applications. In addition, the device operates from a single +5.0V supply.
This device is available in a compact 20-pin TQFN package (5mm x 5mm) with an exposed pad. Electrical performance is guaranteed over the extended temperature range, from TC = -40°C to +95°C.
Applications
- Cellular Applications
- Fixed Broadband Wireless Access
- LTE Applications
- Point-to-Point Receivers and Transmitters
- RF/IF Variable-Gain Stages
- Temperature-Compensation Circuits
- WiMAX™ Applications
- Wireless Local Loop
