MAX19794

PRODUCTION

10MHz to 500MHz Dual Analog Voltage Variable Attenuator with On-Chip 10-Bit SPI-Controlled DAC

High-Performance RF VVA Features 46dB of Linearly Controlled Dynamic Range and Excellent Attenuation Flatness

Data Sheet (Rev. 1) Product Selection Table
Part Models
2
1ku List Price
Starting From $6.75
Viewing:

Part Details

  • Wide Band Coverage
    • RF Frequency Range from 10MHz to 500MHz
  • High Linearity
    • Greater than +34.4dBm IIP3 over the Full Attenuation Range
    • +21.8dBm Input P1dB
  • Integrates Two Analog Attenuators in One Monolithic Device
  • Two Convenient Control Options
    • Single Analog Voltage
    • On-Chip, SPI-Controlled 10-Bit DAC
  • Step-Up/Down Pulse Command Inputs
  • Flexible Attenuation Control Ranges
    • 22.4dB (per Attenuator)
    • 44.7dB (Both Attenuators Cascaded)
  • Linear dB/V Analog Control Response Curve Simplifies Automatic Leveling Control and Gain Trim Algorithms
  • Excellent Attenuation Flatness over Wide Frequency Ranges and Attenuation Settings
  • On-Chip Comparator (for Successive Approximation Measurement of Attenuator Control Voltage)
  • Low 13mA Supply Current
  • Single +5V or 3.3V Supply Voltage
  • Pin Similar with MAX19791, MAX19792, and MAX19793
  • Lead-Free Package
MAX19794
10MHz to 500MHz Dual Analog Voltage Variable Attenuator with On-Chip 10-Bit SPI-Controlled DAC

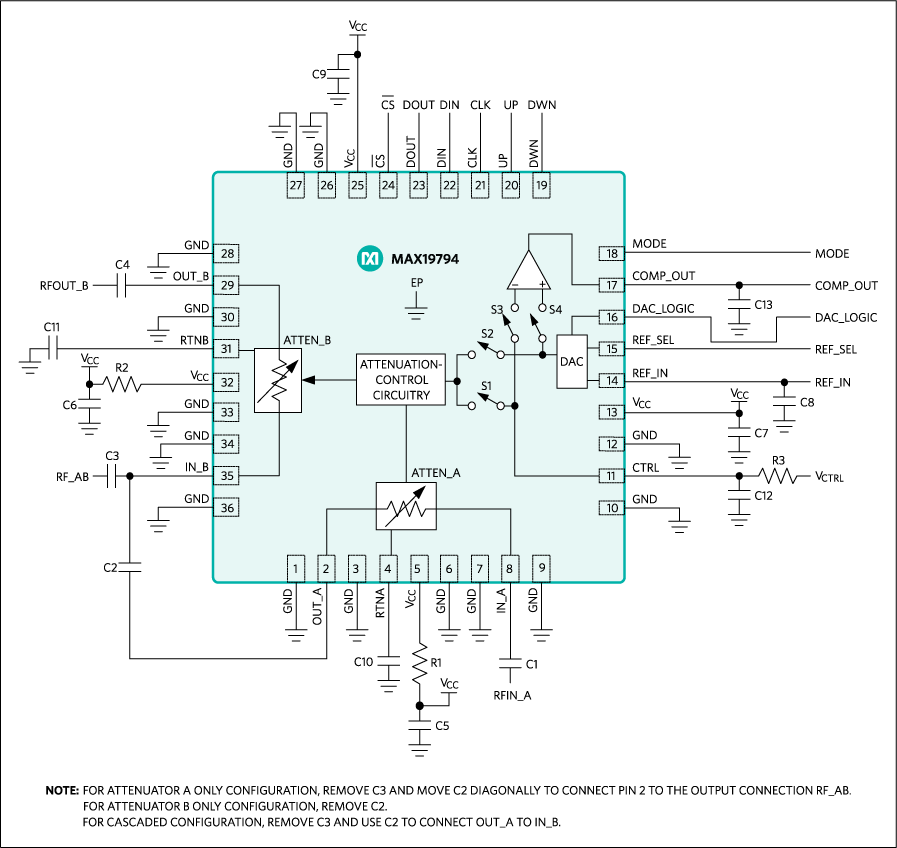

MAX19794: Typical Application Circuit
