MAX190
PRODUCTIONLow-Power, 12-Bit Sampling ADCs with Internal Reference and Power-Down
See MAX129X or MAX191 For New Designs
- Part Models
- 5
- 1ku List Price
- Starting From $19.38
Part Details
- 12-Blt Resolution, 1/2LSB Linearity
- +SV or ±SV Operation (MAX191)
- Built-In Track/Hold
- Internal Reference with Adjustment Capability
- Low Power:
- 3mA Operating Mode
- 20µA Power-Down Mode
- 100ksps Tested Sampling Rate (MAX191)
- Serial and 8-Bit Parallel µP Interface
- 24-Pln Narrow DIP and Wide SO Packages

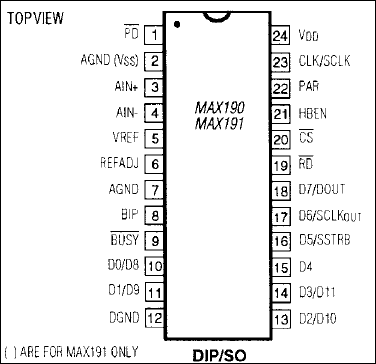

The MAX190/MAX191 are monolithic, CMOS, 12-bit analog-to-digital converters (ADCs) featuring differential inputs, track/hold (T/H), internal voltage reference, internal or external clock, and parallel or serial µP interface. Both devices have a 7.5µs conversion time. The MAX190 has a 5µs acquisition time and sampling rate of 76k samples per second (ksps), while the MAX191 has a 2µs acquisition time and is guaranteed at 100ksps.
Decoupling capacitors are the only external components needed for the power supply and reference. These ADCs operate with either an external reference, or an internal reference that features an adjustment input for trimming system gain errors.
Both the MAX190 and MAX191 operate from a single +5V supply. The MAX191 also operates from dual ±5V supplies, allowing ground-referenced bipolar input signals. Both devices feature a logic power-down input, which reduces the 3mA Voo supply current to 50µA max, including the internal-reference current.
The MAX190/MAX191 provide three interface modes: two 8-bit parallel modes, and a serial interface mode that is compatible with SPI, QSPI and Microwire™ serial-interface standards.
