MAX1834

PRODUCTION

High-Efficiency Step-Up Converters with Reverse Battery Protection

Data Sheet (Rev. 3) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.60

Viewing:

Part Details

Reverse Battery Protection for DC-DC Converter and Load
Up to 90% Efficiency
No External Diode or FETs Needed
Internal Synchronous Rectifier
4µA Quiescent Current
<1µA Shutdown Supply Current
+1.5V to +5.5V Input Voltage Range
Accurate active-low SHDN Threshold for Low-Battery Cutoff
BATT Connected to OUT in Shutdown for Backup Power (MAX1832/MAX1833)
RST-bar Output (MAX1833/MAX1835)
Fixed 3.3V/3.0V Output Voltage
Adjustable Output Voltage (MAX1832/MAX1834)
Up to 150mA Output Current

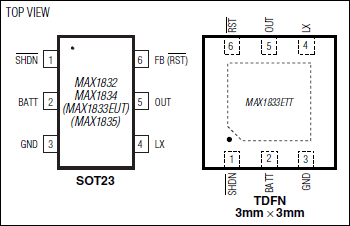

Tiny 6-Pin SOT23 Package
Tiny 6-Pin Thin QFN Package (MAX1833ETT30)

Part Models: 2
1ku List Price: Starting From $2.60

Documentation

Data Sheet 1

MAX1832-MAX1835: High-Efficiency Step-Up Converters with Reverse Battery Protection Data Sheet (Rev.3) 12/13/2018

Technical Articles 1

Blood Glucose Meters 05/10/2010

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX1834EUT+	6-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1834EUT+T	6-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Kit for the MAX1832, MAX1833, MAX1834, MAX1835

Buy Now View Details

Features and Benefits

Reverse-Battery Protection
1.5V to V_OUT Input Supply Voltage
3.3V Output Voltage (MAX1833/MAX1835)
Adjustable Output Voltage (MAX1832/MAX1834, 2V to 5.5V)
Up to 150mA Output Current
No External Schottky Diode Required
Synchronous Rectification for Improved Efficiency
1µA IC Shutdown Current
RST-bar Output (MAX1833/MAX1835)
6-Pin SOT23 Package
Surface-Mount Construction
Fully Assembled and Tested

Product Details

The MAX1833 evaluation kit (EV kit) evaluates the MAX1833 high-efficiency, step-up DC-DC converter for portable hand-held devices. The EV kit accepts a positive input voltage between 1.5V to V_OUT and converts it to a 3.3V output for currents up to 150mA. The EV kit provides ultra-low quiescent current and high efficiency for maximum battery life.

The MAX1833 EV kit is a fully assembled and tested surface-mount printed circuit board. It can also be used to evaluate the MAX1832/MAX1834/MAX1835 for other output voltages in the 2V to 5.5V range. Additional pads on the board accommodate the external feedback resistors for setting different output voltages.

Applications

Battery Backup
Cordless Phones
Digital Still Cameras
Handheld Instruments (PDAs, Palmtops)
Local 3.3V to 5V Supplies
Medical Diagnostic Equipment
Pagers
PC Cards
Remote Wireless Transmitters
