LTC6101

PRODUCTION

High Voltage, High-Side Current Sense Amplifier in SOT-23

Data Sheet (Rev. I) Product Selection Table

Part Models: 66
1ku List Price: Starting From $1.38

Viewing:

Part Details

Supply Range:
- 5V to 100V, 105V Absolute Maximum (LTC6101HV)
- 4V to 60V, 70V Absolute Maximum (LTC6101)
Low Offset Voltage: 300μV Max

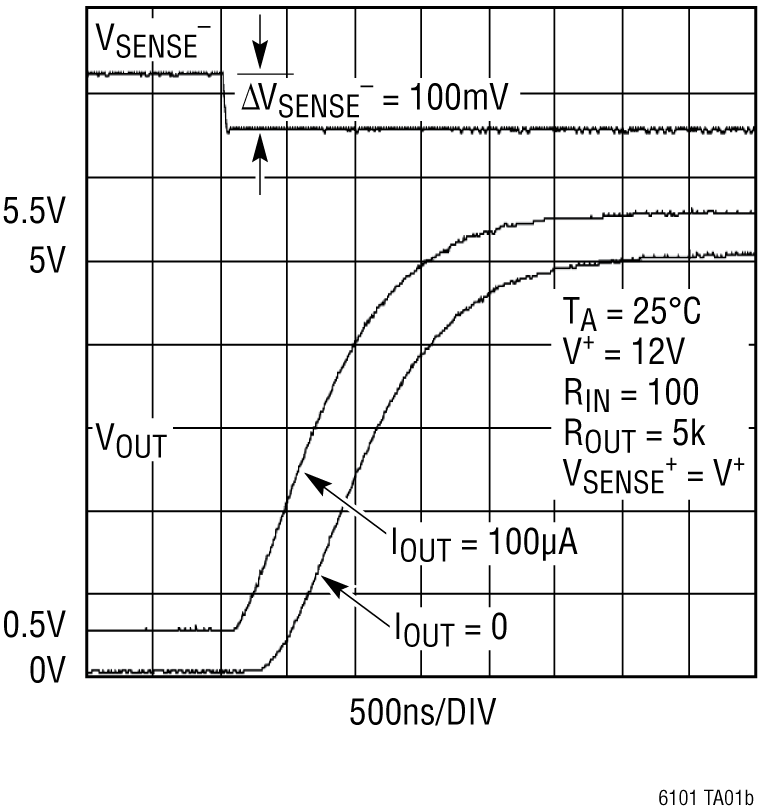

Fast Response: 1μs Response Time (0V to 2.5V on a 5V Output Step)
Gain Configurable with 2 Resistors
Low Input Bias Current: 170nA Max
PSRR: 118dB Min
Output Current: 1mA Max
Low Supply Current: 250μA, V_S = 12V
Specifi ed Temperature Range: –40°C to 125°C
Operating Temperature Range: –55°C to 125°C

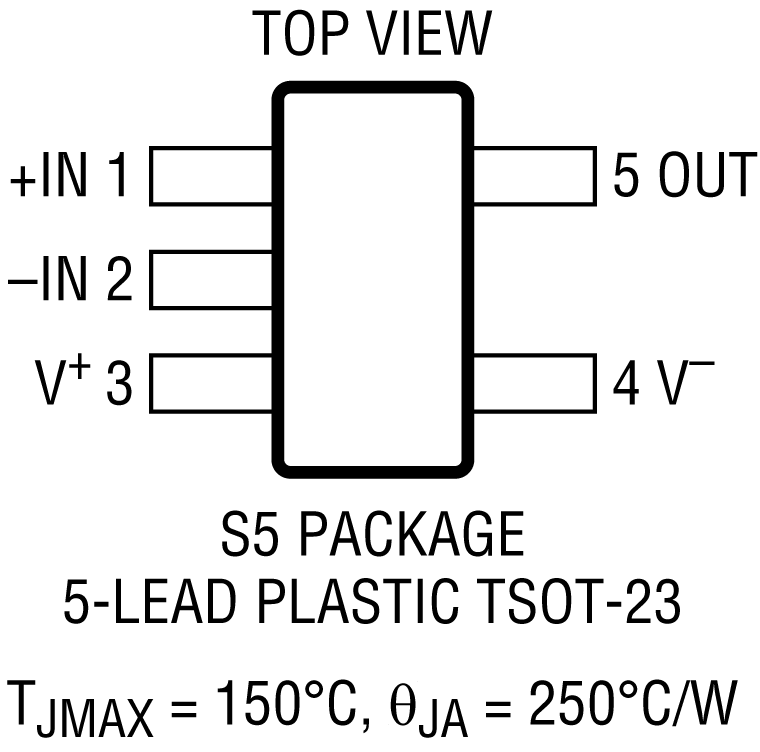

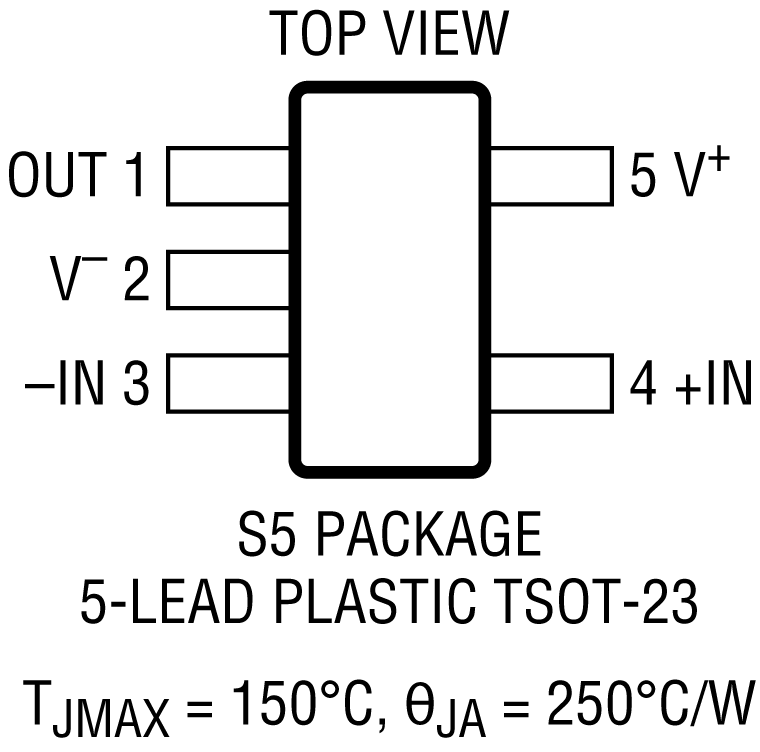

Low Profi le (1mm) SOT-23 (ThinSOT^™) Package

Part Models: 66
1ku List Price: Starting From $1.38

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

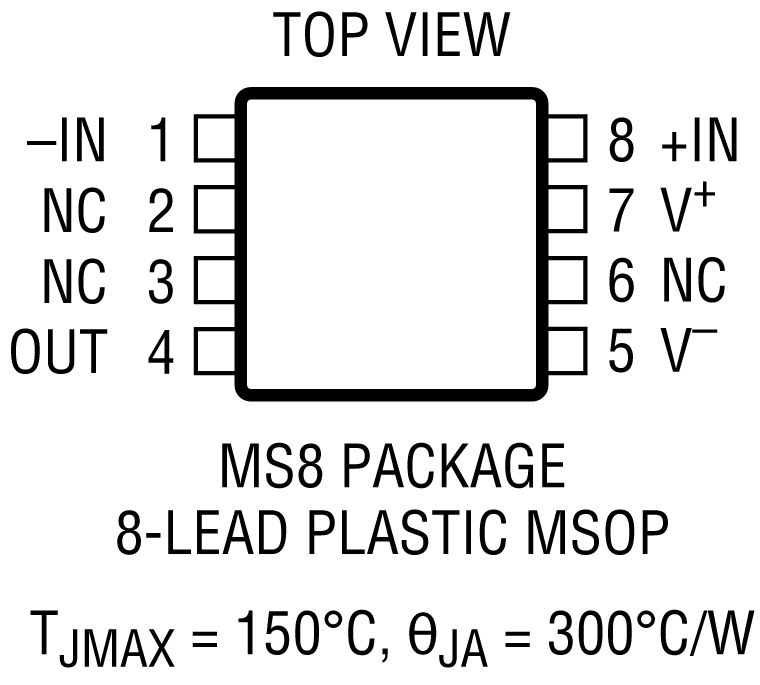

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC6101ACMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101ACMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101ACS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101ACS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AHMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AHMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AIMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AIMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101AIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101BCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101BCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101BHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101BHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101BIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101BIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101CCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101CCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101CHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101CHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101CIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101CIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVACMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVACMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVACS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVACS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAHMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAHMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAIMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAIMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVAIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVBCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVBCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVBHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVBHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVBIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVBIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVCCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVCCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVCHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVCHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVCIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101HVCIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVACS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVACS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVAHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVAHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVAIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVAIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVBCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVBCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVBHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVBHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVBIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVBIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVCCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVCCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVCHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVCHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVCIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6101VHVCIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC6101ACMS8#PBF	PRODUCTION
LTC6101ACMS8#TRPBF	PRODUCTION
LTC6101AHMS8#PBF	PRODUCTION
LTC6101AHMS8#TRPBF	PRODUCTION
LTC6101AIMS8#PBF	PRODUCTION
LTC6101AIMS8#TRPBF	PRODUCTION
LTC6101HVACMS8#PBF	PRODUCTION
LTC6101HVACMS8#TRPBF	PRODUCTION
LTC6101HVAHMS8#PBF	PRODUCTION
LTC6101HVAHMS8#TRPBF	PRODUCTION
LTC6101HVAIMS8#PBF	PRODUCTION
LTC6101HVAIMS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC6101ACMS8#PBF	PRODUCTION
LTC6101ACMS8#TRPBF	PRODUCTION
LTC6101AHMS8#PBF	PRODUCTION
LTC6101AHMS8#TRPBF	PRODUCTION
LTC6101AIMS8#PBF	PRODUCTION
LTC6101AIMS8#TRPBF	PRODUCTION
LTC6101HVACMS8#PBF	PRODUCTION
LTC6101HVACMS8#TRPBF	PRODUCTION
LTC6101HVAHMS8#PBF	PRODUCTION
LTC6101HVAHMS8#TRPBF	PRODUCTION
LTC6101HVAIMS8#PBF	PRODUCTION
LTC6101HVAIMS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

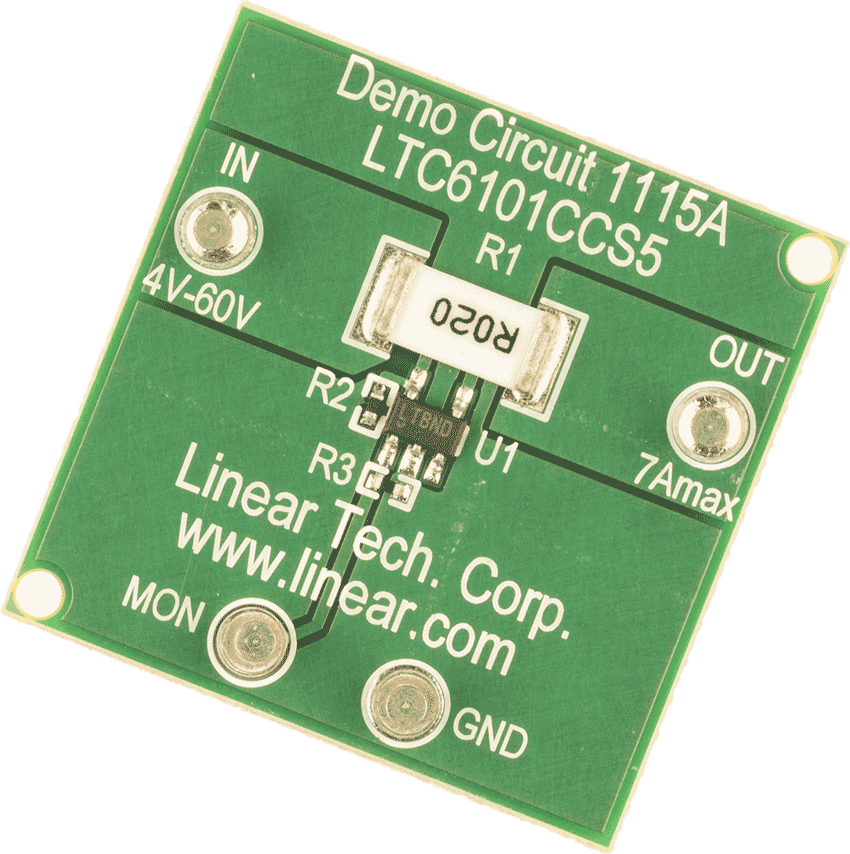

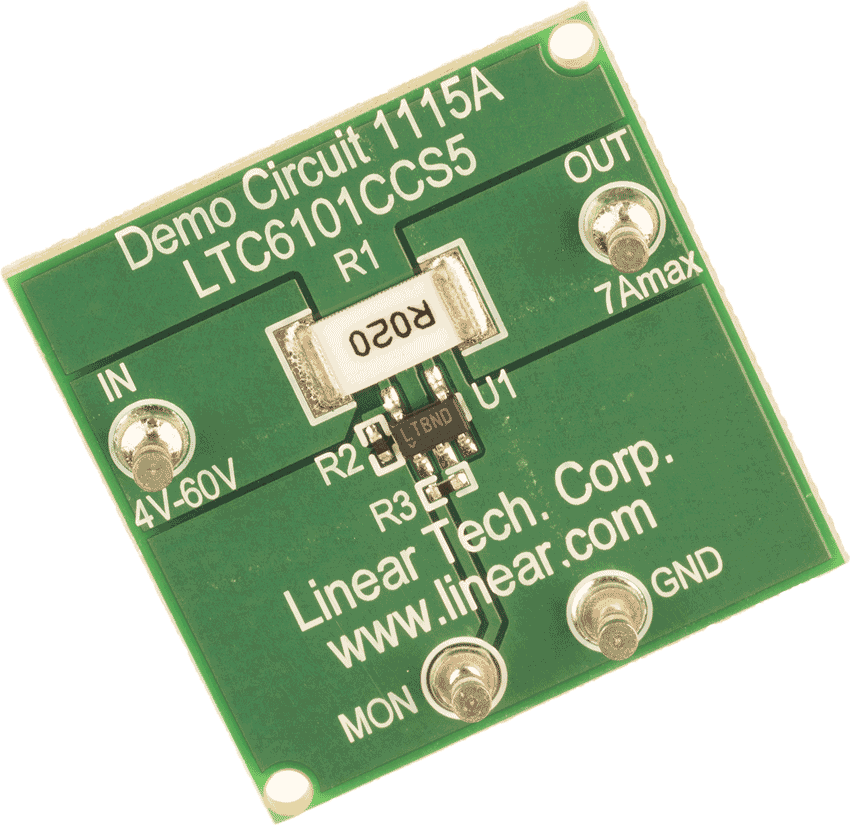

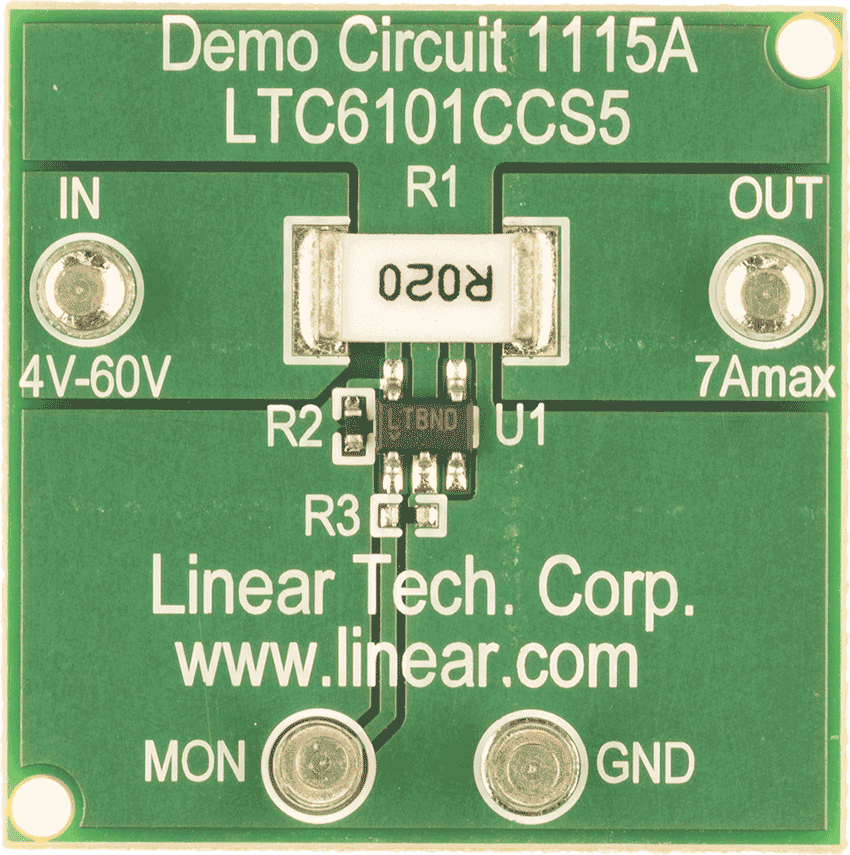

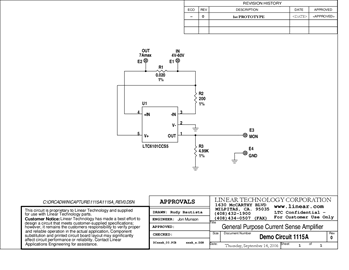

Hardware Ecosystem

Parts	Product Life Cycle	Description
Current Sense Amplifiers 1
LTC4151	PRODUCTION	High Voltage I²C Current and Voltage Monitor

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTC6101

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
