LTC3586
LTC3586-1

PRODUCTION

High Efficiency USB Power Manager with Boost, Buck-Boost and Dual Bucks

Part Models: 4
1ku List Price: Starting From $6.94

Viewing:

Part Details

Power Manager

High Efficiency Switching PowerPath^™ Controller with Bat-Track^™ Adaptive Output Control and “Instant-On” Operation
Programmable USB or Wall Current Limit (100mA/500mA/1A)
Full Featured Li-Ion/Polymer Battery Charger with Float Voltage of 4.1V (LTC3586-1) or 4.2V (LTC3586) with 1.5A Maximum Charge Current
Internal 180mΩ Ideal Diode Plus External Ideal Diode Controller Powers Load in Battery Mode
<30μA No-Load Quiescent Current when Powered from BAT
Dual High Efficiency Buck DC/DCs (400mA I_OUT)
High Efficiency Buck-Boost DC/DC (1A I_OUT)
High Efficiency Boost DC/DC (800mA I_OUT)
Compact (4mm × 6mm × 0.75mm) 38-Pin QFN Package

The LTC3586/LTC3586-1 are highly integrated power management and battery charger ICs for Li-Ion/Polymer battery applications. They include a high efficiency current limited switching PowerPath manager with automatic load prioritization, battery charger, ideal diode, and four synchronous switching regulators (two bucks, one buck-boost and one boost). Designed specifically for USB applications, the LTC3586/LTC3586-1’s switching power manager automatically limits input current to a maximum of either 100mA or 500mA for USB applications or 1A for adapter-powered applications.

Unlike linear chargers, the LTC3586/LTC3586-1 switching architecture transmits nearly all of the power available from the USB port to the load with minimal loss and heat which eases thermal constraints in small places. The two buck regulators can provide up to 400mA each, the buck-boost can deliver 1A, and the boost delivers at least 800mA.

The LTC3586/LTC3586-1 are available in a low profile (0.75mm) 38-pin 4mm × 6mm QFN package.


Options	Float Voltage (V)	Fault Pin Functionality	Boost Overvoltage Threshold (V)	Boost Overvoltage Hysteresis
LTC3586	4.2V	Bi-Directional with Latch	5.3V	300mV
LTC3586-1	4.1V	Bi-Directional with Latch	5.3V	300mV
LTC3586-2	4.2V	Output Only, No Latch	5.5V	100mV
LTC3586-3	4.1V	Output Only, No Latch	5.5V	100mV

Applications

Digital Still Cameras
HDD-Based MP3 Players, PDAs, GPS, PMPs
Other USB-Based Handheld Products

Part Models: 4
1ku List Price: Starting From $6.94

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3586EUFE#PBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3586EUFE#TRPBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3586EUFE-1#PBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3586EUFE-1#TRPBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 14, 2025 - 25_0016 Bond Wire Change from Gold to Copper Wire (Notification Only)
		PCN25_0016_Form Material_Report Qualification Results Summary
LTC3586EUFE#PBF	PRODUCTION
LTC3586EUFE#TRPBF	PRODUCTION
LTC3586EUFE-1#PBF	PRODUCTION
LTC3586EUFE-1#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Battery Fuel Gauge and Coulomb Counter 1
LTC2942-1	Obsolete	1A Battery Gas Gauge with Internal Sense Resistor and Temperature/Voltage Measurement
Dual-Supply Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Low Voltage Hot Swap Controllers 1
LTC4362-1 LTC4362-2		1.2A Overvoltage/Overcurrent Protector
Pushbutton Controllers 1
LTC2955	RECOMMENDED FOR NEW DESIGNS	Pushbutton On/Off Controller with Automatic Turn-On

Evaluation Kits

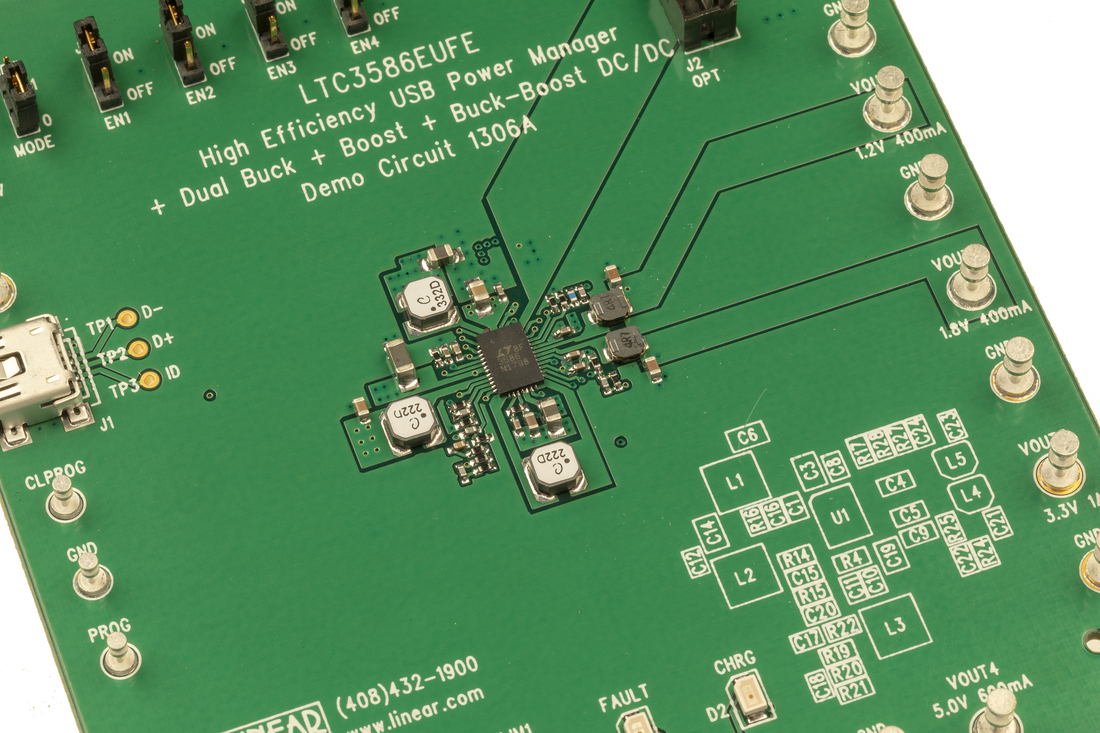

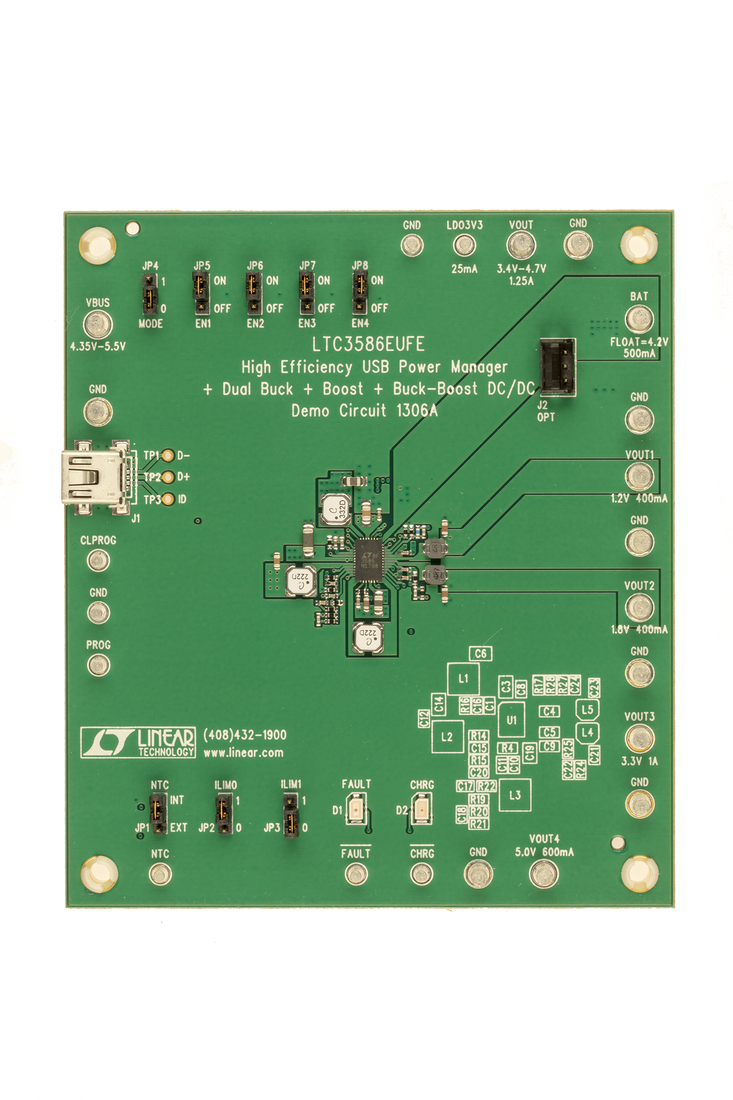

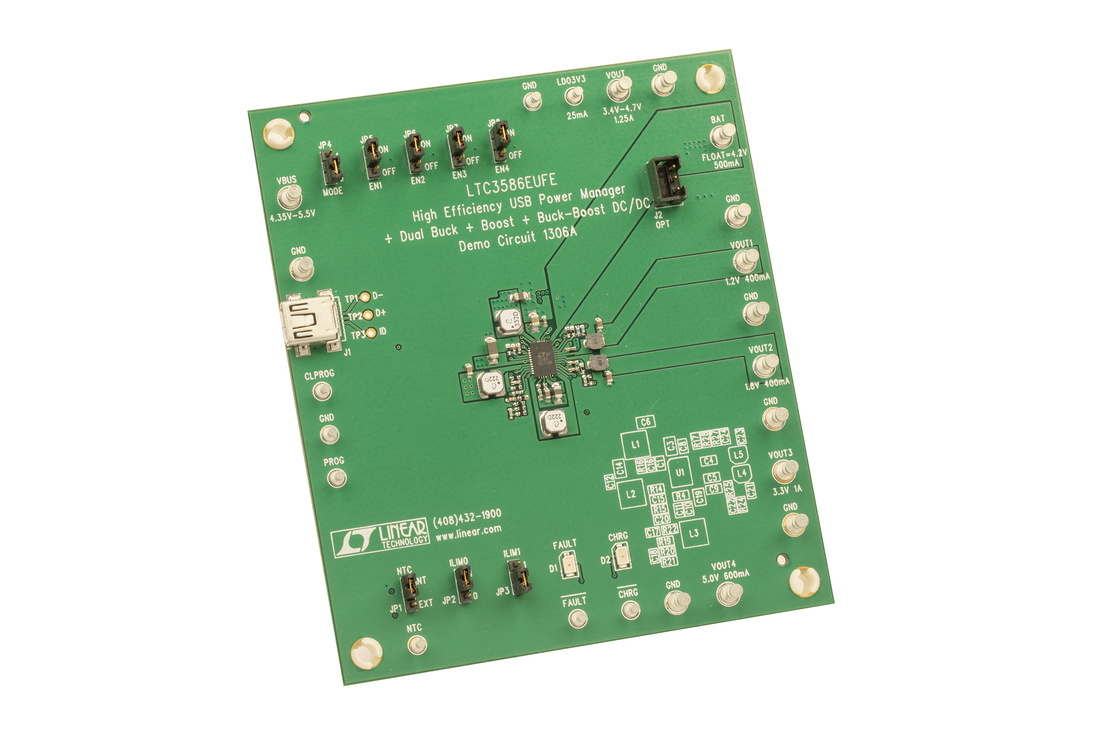

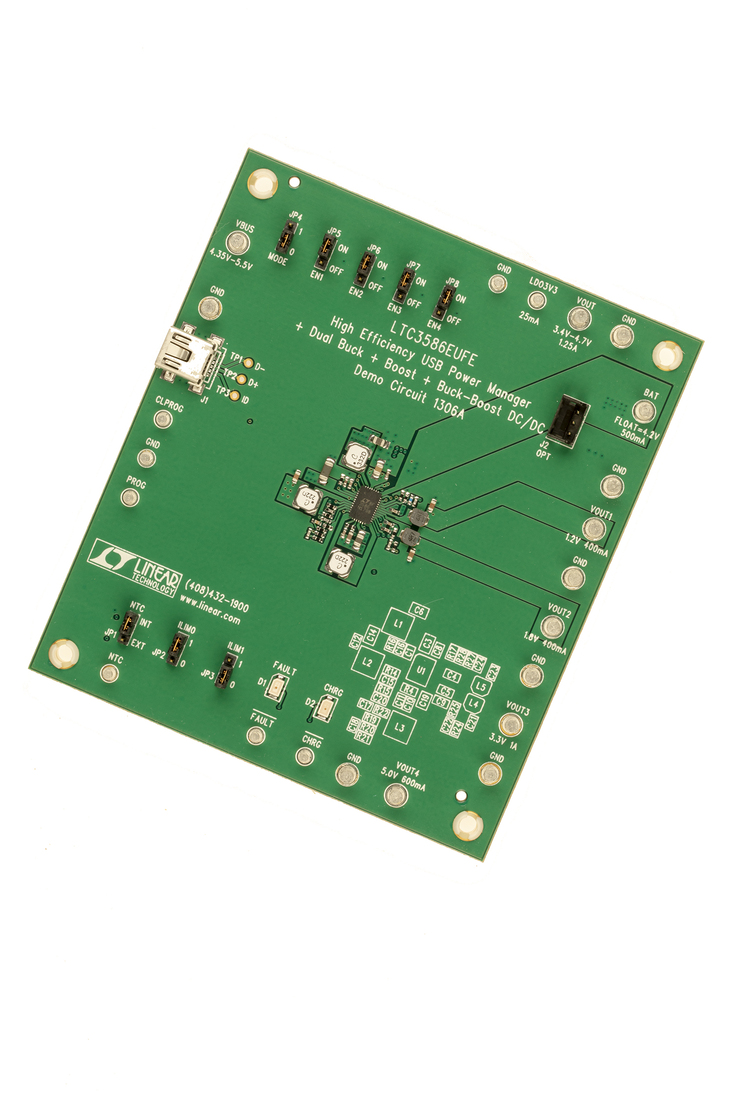

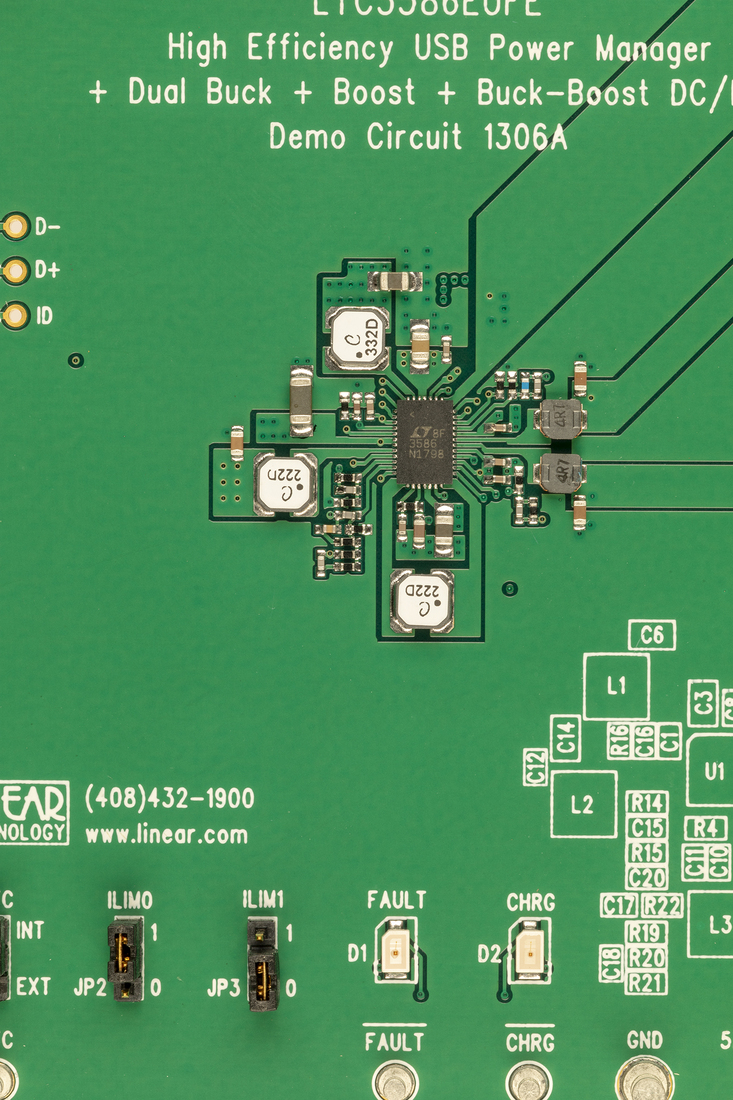

LTC3586EUFE Demo Board | High Efficiency USB Power Manager + Dual Buck + Boost + Buck-Boost DC/DC

Buy Now View Details

Product Details

Demonstration Circuit 1306 is a High Efficiency USB Power Manager plus Multi-Output Power Supply featuring the LTC3586. The LTC3586 integrates a high efficiency Li-Ion battery charger with PowerPath control and four general purpose synchronous switching regulators (2 × 400mA dual buck, 1A buck-boost, 800mA boost), all in one chip. The PowerPath manager includes a 4.35V to 5.5V input synchronous switching regulator, a full-featured 1.5A CC/CV linear Li-Ion battery charger and an ideal diode. Designed specifically for USB applications, the LTC3586’s low voltage switching regulator automatically limits its input current to a maximum of either 1x (for USB 100mA), 5× (for USB 500mA) or 10× for wall-powered applications (1A). The demo board can be used with the LTC3586-1(4.1V charge voltage) or LTC3586 (4.2V charge voltage).

Resources

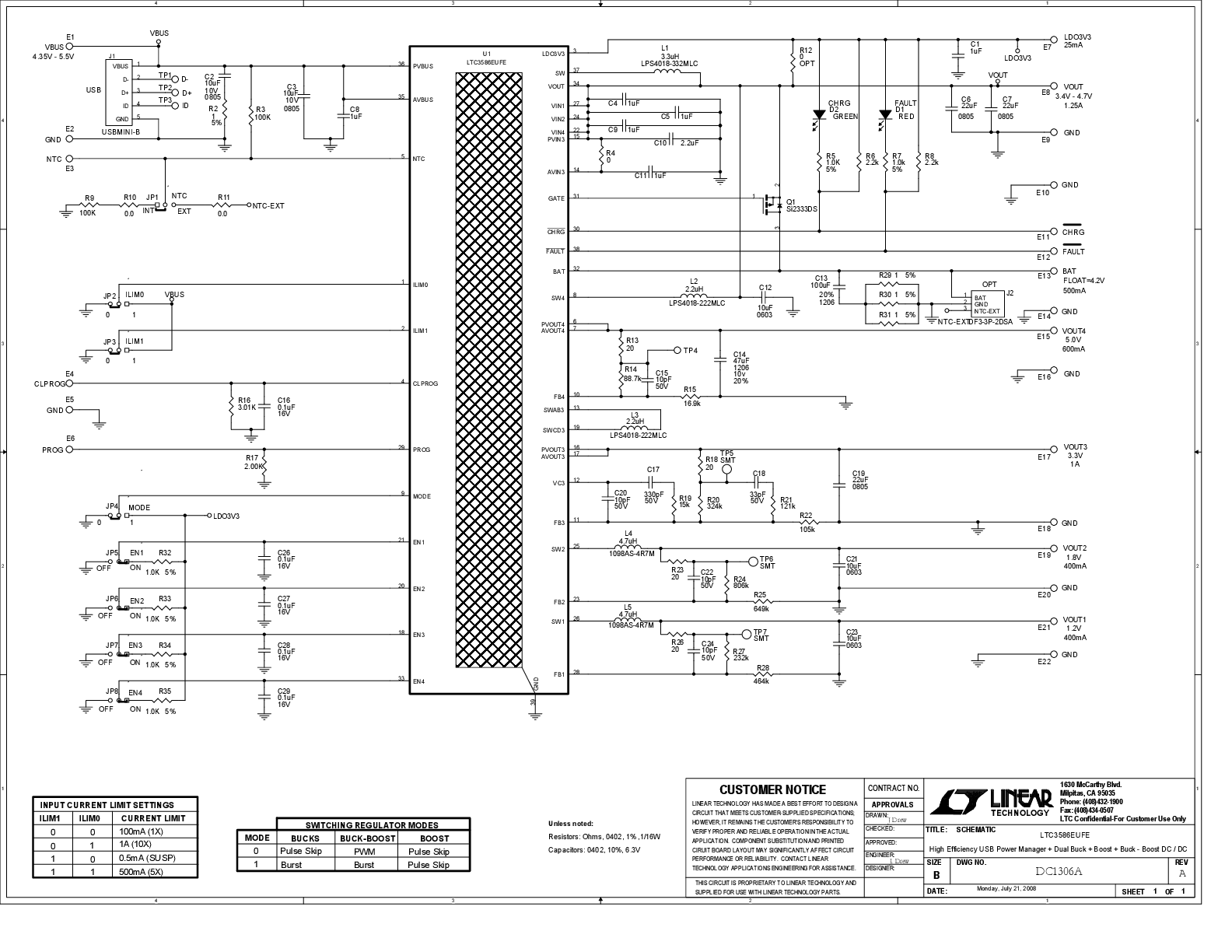

DC1306A - Schematic
