LTC3586-2
LTC3586-3

PRODUCTION

High Efficiency USB Power Manager with Boost, Buck-Boost and Dual Bucks

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: Starting From $6.31

Viewing:

Part Details

Power Manager

High Efficiency Switching PowerPath^™ Controller with Bat-Track^™ Adaptive Output Control and Instant-On Operation
Programmable USB or Wall Current Limit (100mA/500mA/1A)
Full Featured Li-Ion/Polymer Battery Charger with Float Voltage of 4.2V (LTC3586-2) or 4.1V (LTC3586-3) with 1.5A Maximum Charge Current
Internal 180mΩ Ideal Diode Plus External Ideal Diode Controller Powers Load in Battery Mode
<30μA No-Load Quiescent Current when Powered from BAT

DC/DCs

Dual High Efficiency Buck DC/DCs (400mA I_OUT)
High Efficiency Buck-Boost DC/DC (1A I_OUT)
High Efficiency Boost DC/DC (800mA I_OUT)
DC/DC FAULT Output

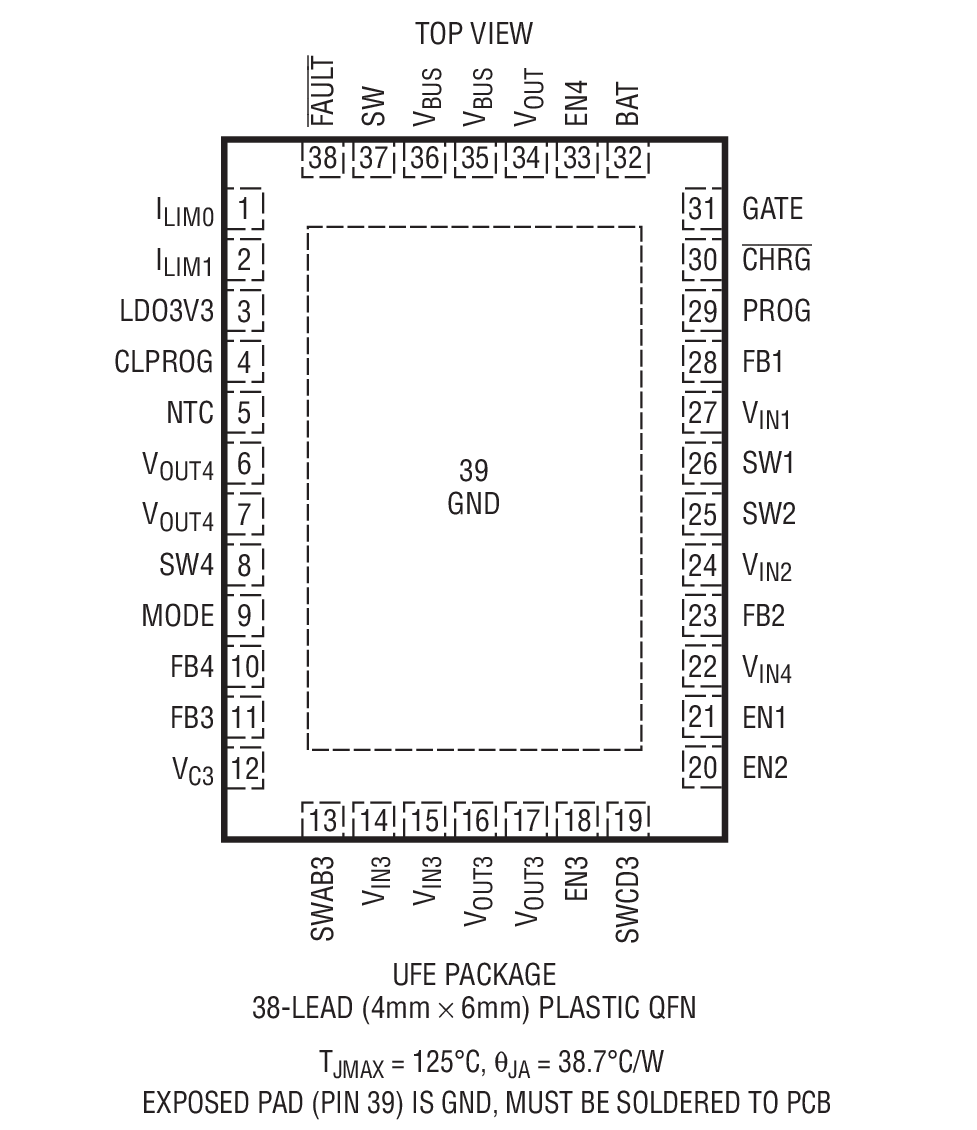

Compact (4mm × 6mm) 38-Pin QFN Package

The LTC3586-2/LTC3586-3 are highly integrated power management and battery charger ICs for Li-Ion/Polymer battery applications. They include a high efficiency current limited switching PowerPath manager with automatic load prioritization, battery charger, ideal diode, and four synchronous switching regulators (two bucks, one buckboost and one boost). Designed specifically for USB applications, the LTC3586-2/LTC3586-3’s switching power manager automatically limits input current to a maximum of either 100mA or 500mA for USB applications or 1A for adapter-powered applications.

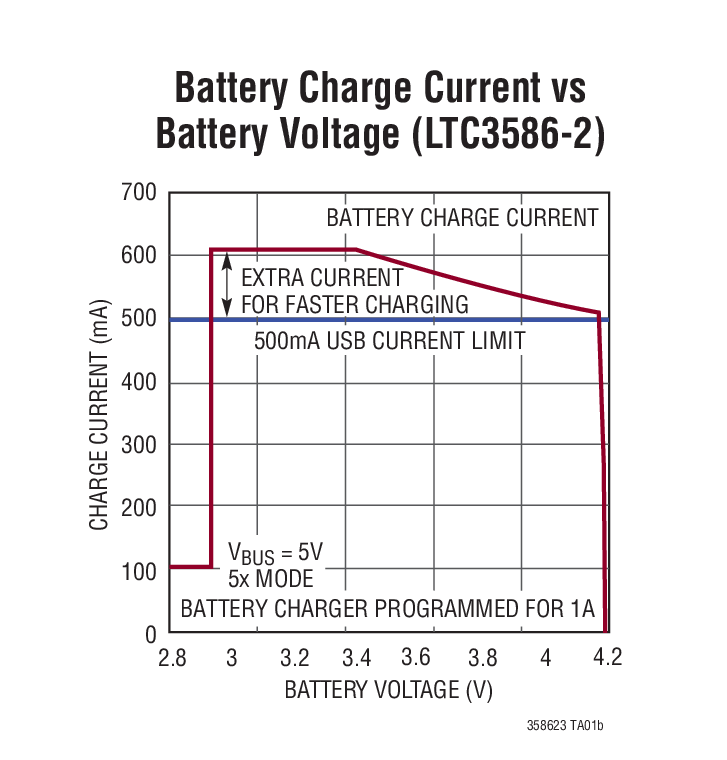

Unlike linear chargers, the LTC3586-2/LTC3586-3 switching architecture transmits nearly all of the power available from the USB port to the load with minimal loss and heat which eases thermal constraints in small places. The two buck regulators can provide up to 400mA each, the buck-boost can deliver 1A, and the boost delivers at least 800mA.

The LTC3586-2/LTC3586-3 are available in a low profile (0.75mm) 38-pin 4mm × 6mm QFN package.


Options	Float Voltage (V)	Fault Pin Functionality	Boost Overvoltage Threshold (V)	Boost Overvoltage Hysteresis
LTC3586	4.2V	Bi-Directional with Latch	5.3V	300mV
LTC3586-1	4.1V	Bi-Directional with Latch	5.3V	300mV
LTC3586-2	4.2V	Output Only, No Latch	5.5V	100mV
LTC3586-3	4.1V	Output Only, No Latch	5.5V	100mV

Applications

Portable Medical/Industrial Devices
Other USB-Based Handheld Products

Part Models: 4
1ku List Price: Starting From $6.31

Documentation

Data Sheet 1

LTC3586-2: High Efficiency USB Power Manager with Boost, Buck-Boost and Dual Bucks Data Sheet 03/23/2012

Reliability Data 1

R415 Reliability Data 03/23/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3586EUFE-2#PBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3586EUFE-2#TRPBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3586EUFE-3#PBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3586EUFE-3#TRPBF	38-Lead QFN (4mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
