LTC2364-18

PRODUCTION

18-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR

Data Sheet Product Selection Table
Part Models
10
1ku List Price
Starting From $17.33
Viewing:

Part Details

  • 250ksps Throughput Rate
  • ±2.5LSB INL (Max)
  • Guaranteed 18-Bit No Missing Codes
  • Low Power: 3.4mW at 250ksps, 3.4μW at 250sps
  • 97dB SNR (Typ) at fIN = 2kHz
  • –120dB THD (Typ) at fIN = 2kHz
  • Guaranteed Operation to 125°C
  • 2.5V Supply
  • Pseudo-Differential Unipolar Input Range: 0V to VREF
  • VREF Input Range from 2.5V to 5.1V
  • No Pipeline Delay, No Cycle Latency
  • 1.8V to 5V I/O Voltages
  • SPI-Compatible Serial I/O with Daisy-Chain Mode
  • Internal Conversion Clock
  • 16-Lead MSOP and 4mm × 3mm DFN Packages

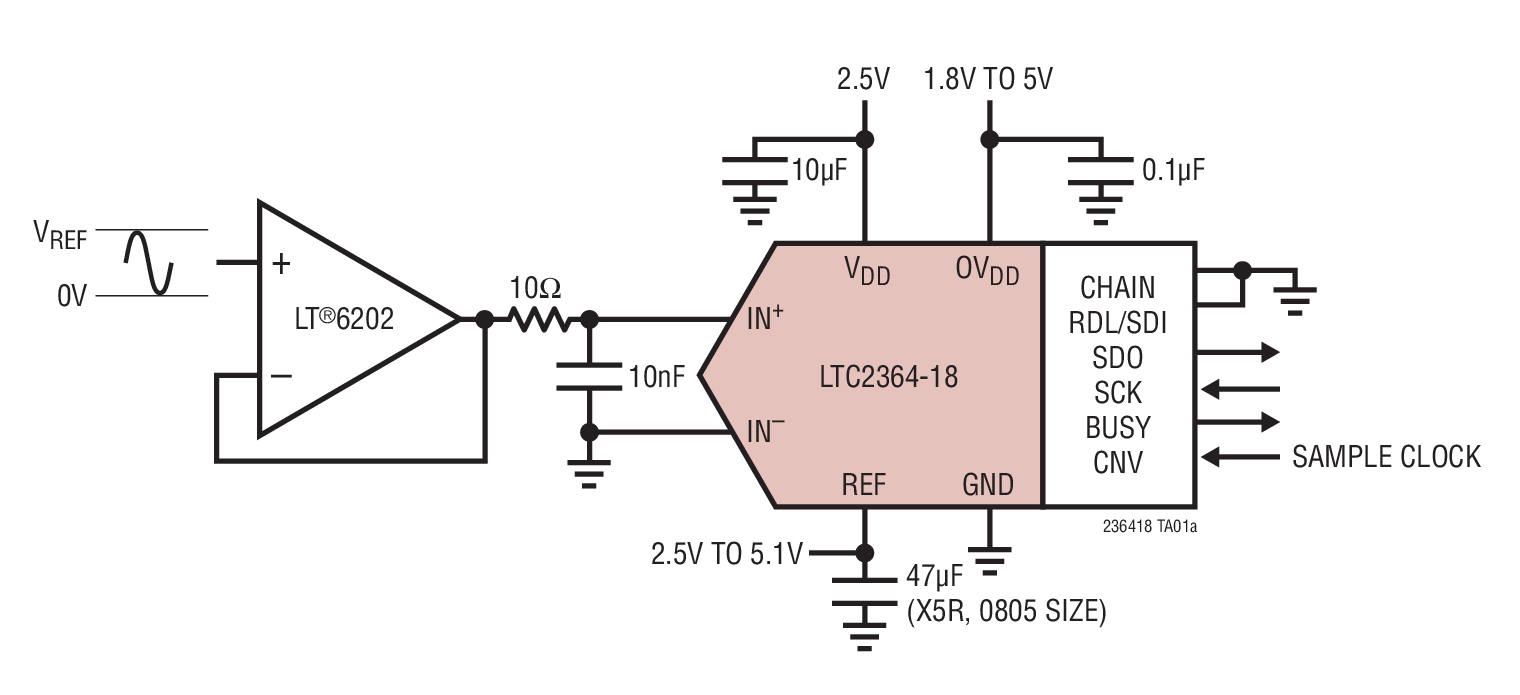

LTC2364-18
18-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR

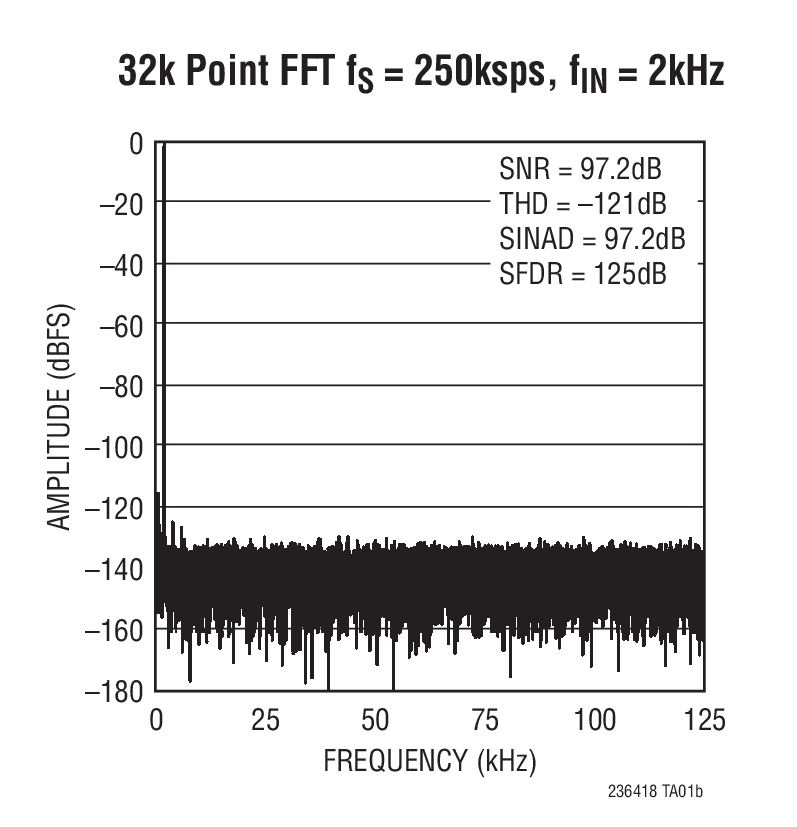

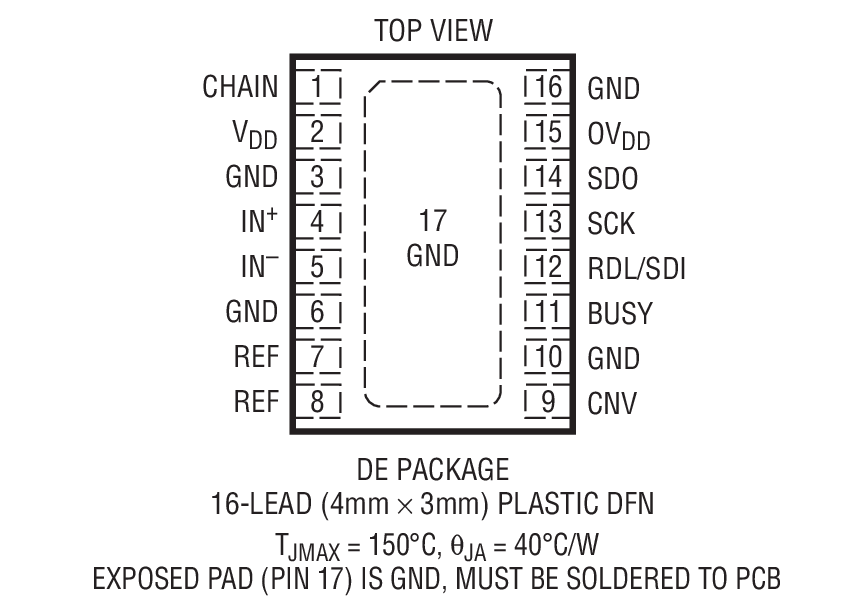

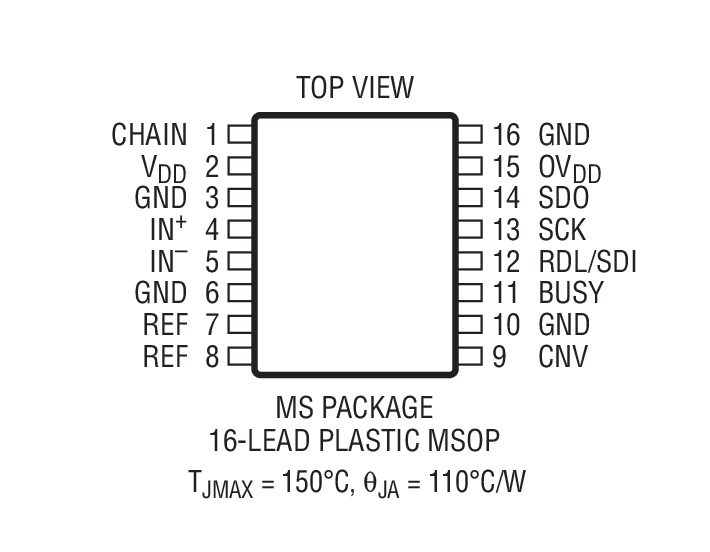

32k Point FFT fS = 250ksps, fIN = 2kHz Product Package 1 Product Package 2
