HMC464LP5
PRODUCTIONWideband Power Amplifier SMT, 2 - 20 GHz
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- Output Power: +26 dBm P1dB
- Gain: 14 dB
- Output IP3: +30 dBm
- Supply Voltage: +8V @ 290 mA
- 50 Ohm Matched Input/Output
- 25 mm² Leadless SMT Package

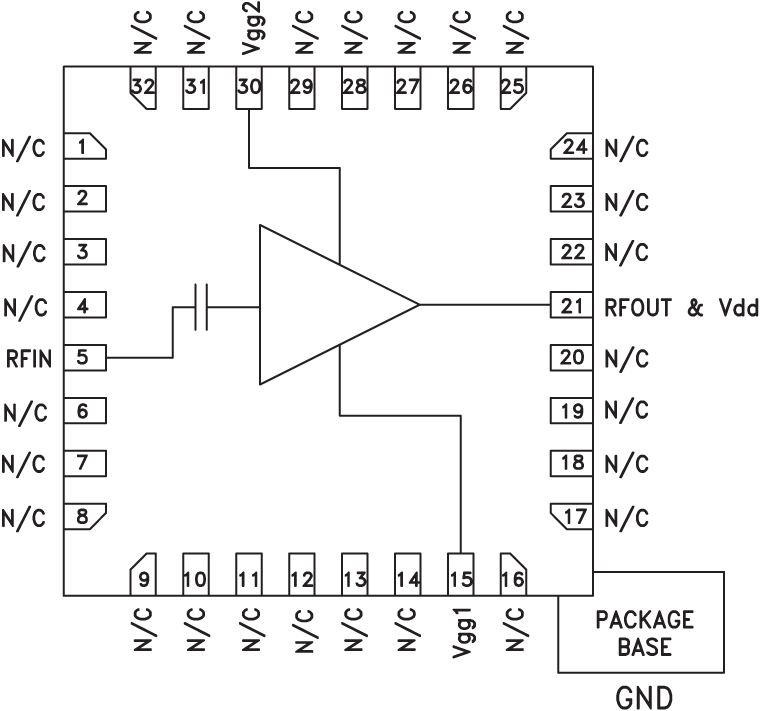

The HMC464LP5(E) is a GaAs MMIC PHEMT Distributed Power Amplifier in leadless 5x5 mm surface mount package which operates between 2 and 20 GHz. The amplifier provides 14 dB of gain, +30 dBm output IP3 and +26 dBm of output power at 1 dB gain compression while requiring 290 mA from a +8V supply. Gain flatness is good from 2 - 18 GHz making the HMC464LP5(E)ideal for EW, ECM and radar driver amplifiers as well as test equipment applications. The wideband amplifier I/O’s are internally matched to 50 Ohms.
Applications
- Telecom Infrastructure
- Microwave Radio & VSAT
- Military EW, ECM & C³I
- Test Instrumentation
- Fiber Optics
Documentation
Data Sheet 1
Application Note 4
Product Selection Guide 1
Quality Documentation 3
Tape & Reel Specification 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC464LP5E | 32-Lead QFN (5mm x 5mm w/ EP) | ||
| HMC464LP5ETR | 32-Lead QFN (5mm x 5mm w/ EP) |
This is the most up-to-date revision of the Data Sheet.
Tools & Simulations
Sys-Parameter Models for Keysight Genesys
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
Open ToolS-Parameter 1
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Open ToolEvaluation Kits
HMC464LP5 Evaluation Board
