DS1402D-41
iButton Probe Blue Dot Subassembly
- Part Models
- 1
- 1ku List Price
- Starting From $4.64
Part Details

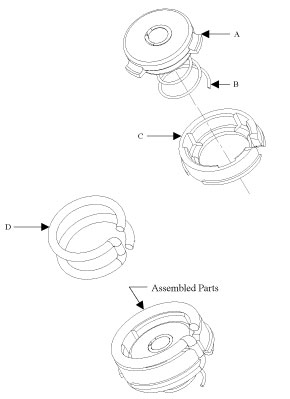

The DS1402D-41 is the subassembly for the spring-mounted Blue Dot™ iButton® reader found in the DS1402D-DR8 and DS1402D-DB8. It is constructed of four component parts that are also available for order separately:
Assembly instructions are provided showing how to assemble the Blue Dot from the component parts in three easy steps.
Documentation
Data Sheet 1
Technical Articles 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| DS1402D-41+ | N/A |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Aug 11, 2015 - 1479D ASSEMBLY |
||
| DS1402D-41+ | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
