ADMX3652

RECOMMENDED FOR NEW DESIGNS

6½ Digit, ±20 V Digital Voltage Meter

Data Sheet (Rev. B) Product Selection Table

Part Models: 1
1ku List Price: Starting From $600.00

Viewing:

Part Details

6½ digit resolution
±0.2 V, ±2 V, and ±20 V range
Dual channel
90 days accuracy: <17 ppm of reading range at 2 V range
<0.225 ppm RMS noise of 2 V range at 1 NPLC, 1000 samples
Up to 1 kSPS data rate
Auto-zero function

Supports SCPI protocol
UART communication interface
Power sequence self checking
Input protection
5 V power supply
0°C to 45°C operation

Part Models: 1
1ku List Price: Starting From $600.00

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

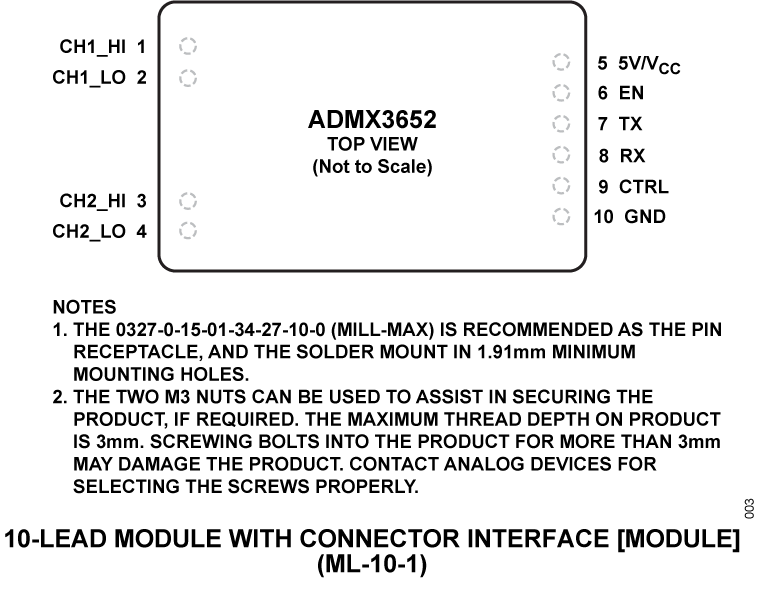

ADMX3652Z-ML	10-Lead Module with Connector Interface	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 18, 2024 - 24_0197 ADMX3652 Front Cover Marking Revision
		PCN24_0197_Form Material_Report Marking Comparison
ADMX3652Z-ML	PRODUCTION	PCN24_0197_Form Material_Report Marking Comparison
May 13, 2024 - 24_0071 ADMX3652 Firmware Update
		PCN24_0071_Form Material_Report
ADMX3652Z-ML	PRODUCTION	PCN24_0071_Form Material_Report

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
µModule Buck Regulators 1
MAXM17572	RECOMMENDED FOR NEW DESIGNS	4.5V to 60V, 1A Himalaya uSLIC Step-Down Power Module
Internal Power Switch Buck Regulators 1
MAX17645	RECOMMENDED FOR NEW DESIGNS	4.5V to 36V, 1A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Evaluation Kits

Evaluating the ADMX3652 6½ Digit, ±20 V Digital Voltage Meter

Buy Now View Details

Features and Benefits

Integrated calibration operation
Data logger
UART to USB communication
Universal connector for DMM

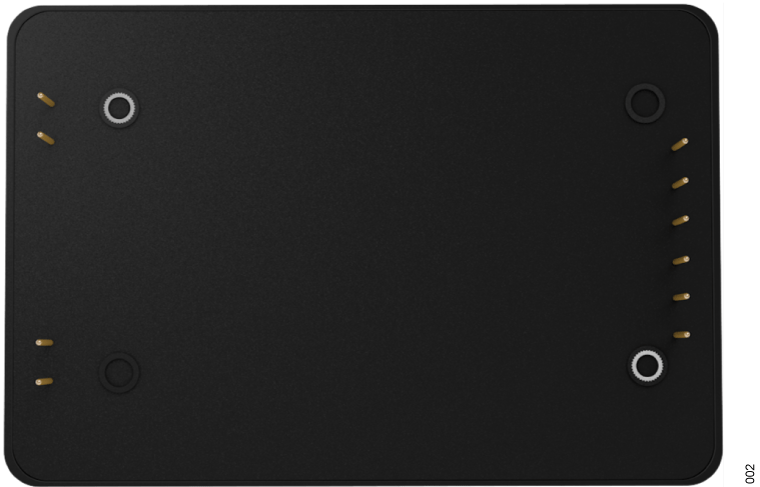

Product Details

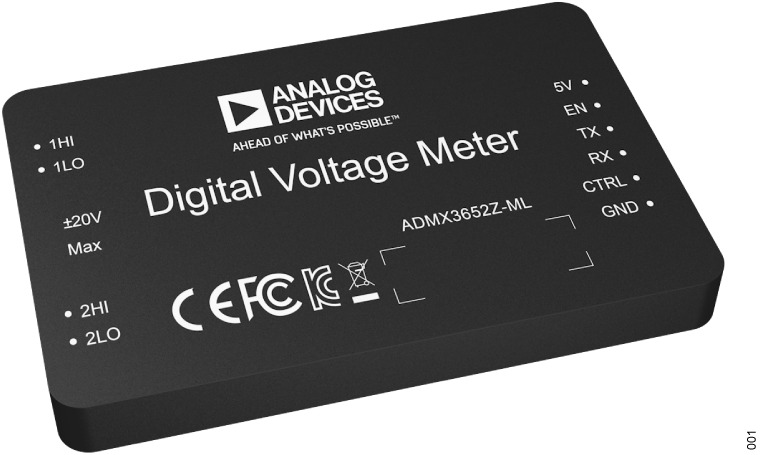

The ADMX3652 is a 6½ digit, ±20 V, dual-channel digital voltage module with a small form factor that can be easily integrated into a system. The module provides three measurement ranges that can be selected manually or automatically according to the input voltage. All operations are implemented through universal asynchronous receiver-transmitter (UART) communications with the Standard Commands for Programmable Instruments (SCPI) protocol. When the ADMX3652 connects with Analog Devices, Inc., EVAL-ADMX3652-INT evaluation board, it can be used as a portable measuring instrument that has two voltage input channels using banana jack connectors. The measured data is output to a computer through the UART to USB function on the EVAL-ADMX3652-INT. An intuitive graphical user interface (GUI) tool is provided as well for operating the module and capturing the data in the computer to evaluate the performance of the ADMX3652.

Resources

ADMX3652Z-ML 3D Model Drawings
10/11/2023

UG-2138: Evaluating the ADMX3652 6½ Digit, ±20 V Digital Voltage Meter (Rev.C)
7/17/2024

Software

ADMX3652 Evaluation GUI (Rev.3.0.4)
52.97 M
