ADH902S
RECOMMENDED FOR NEW DESIGNS5 GHz to 11 GHz, Low Noise Amplifier
- Part Models
- 1
- 1ku List Price
- Starting From $624.00
Part Details
- Noise figure: 1.6 dB typical
- Small signal gain: 20 dB typical
- P1dB output power: 16 dBm typical
- Supply voltage: 3.5 V at 80 mA typical
- Output IP3: 28 dBm typical
- 50 Ω matched input/output
- Self-biased with optional bias control for quiescent drain current (IDQ) reduction with no radio frequency (RF) applied
- Die size: 1.4 mm x 1.11 mm x 0.1mm
- Screened in accordance with MIL-PRF-38534, Class K

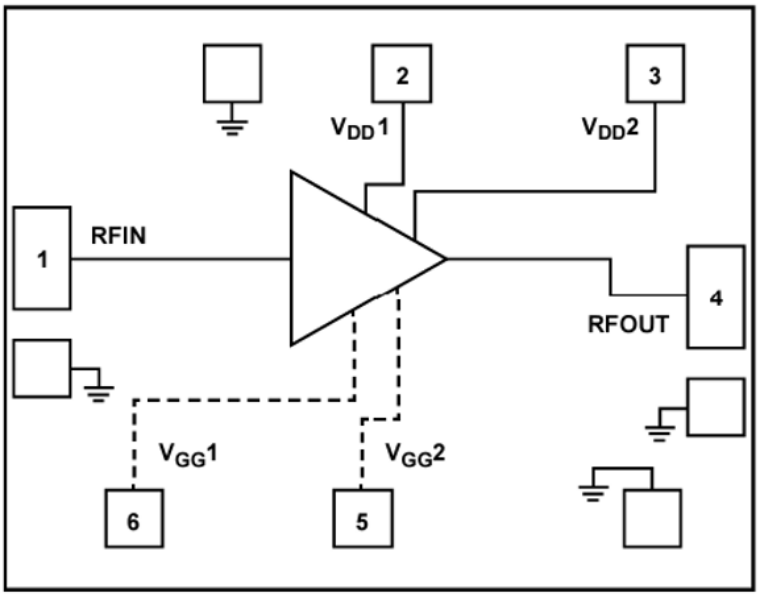

The ADH902S is a gallium arsenide (GaAs), pseudomorphic (pHEMT) monolithic microwave integrated circuit (MMIC), low noise amplifier (LNA), which is self-biased with optional bias control for IDQ reduction. The ADH902S operates between 5 GHz and 11 GHz. This LNA provides 20 dB of small signal gain, 1.6 dB noise figure, and output IP3 of 28 dBm, requiring only 80 mA from a 3.5 V supply. The P1dB output power of 16 dBm enables the LNA to function as a local oscillator (LO) driver for balanced, I/Q, or image rejection mixers. The ADH902S also features inputs/outputs that are matched to 50 Ω for ease of integration into multichip modules (MCMs).
Applications
- Communications
- Instrumentation
- LO Driver
- Military & Space
Documentation
Application Note 1
Controlled Drawings 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC8449 | CHIPS OR DIE |
