ADH753S
RECOMMENDED FOR NEW DESIGNS1 GHz to 11 GHz, LNA
- Part Models
- 1
- 1ku List Price
- Starting From $2200.00
Part Details
-
Noise Figure:
- 3 GHz to 8 GHz: 2 dB Typ
- 8 GHz to 10.5 GHz: 2.5 dB Typ
-
Gain:
- 3 GHz to 8 GHz: 16.5 dB Typ
- 8GHz to 10.5 GHz: 14.8 dB Typ
-
P1dB Output Power:
- 3 GHz to 8 GHz: + 17 dBm Typ
- 8 GHz to 10.5 GHz: +13 dBm Typ
-
Output IP3:
- 3 GHz to 8 GHz: +28 dBm Typ
- 8 GHz to 10.5 GHz: +27 dBm Typ.
- 50 Ohm matched Input/output
- Supply Voltage: +5 V @ 55 mA
- 12-Lead Hermetic SMT Package
- Screened in accordance with MIL-PRF-38535, Class Level S
The ADH753S is a GaAs MMIC Low Noise Wideband Amplifier housed in a ceramic 12-Lead hermetic package. The amplifier operates between 1GHz and 11 GHz, providing up to 16.5 dB of small signal gain, 1.5 dB noise figure, and output IP3 of +30 dBm, while requiring only 55 mA from a +5V supply. The P1dB output power of up to +18 dBm enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The ADH753S also features I/Os that are DC blocked and internally matched to 50 Ohms. This versatile LNA is also available in die form as the ADH-ALH444S.
Applications
- Point-to-Point Radios
- Point-to-Multi-Point Radios
- Satellite Communications
- Instrumentation
- Military & Space
Documentation
Application Note 1
Controlled Drawings 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|

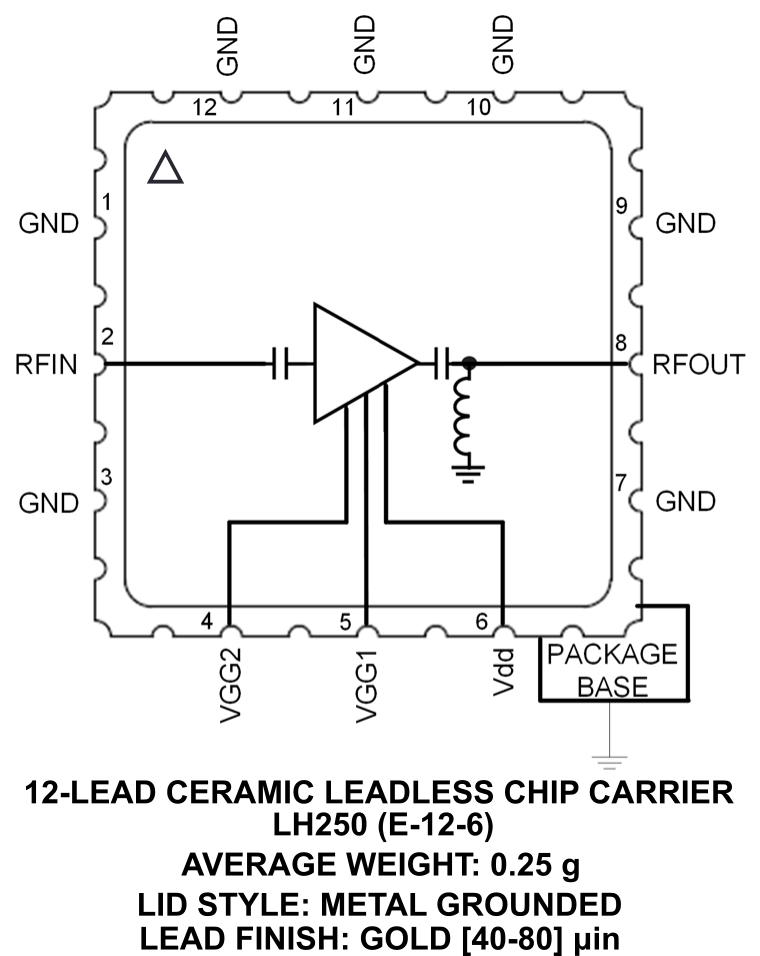

| HMC8356LH250 | 12-Lead LCC (6.35mm x 6.35mm x 1.12) |
