ADH465S
RECOMMENDED FOR NEW DESIGNSAerospace, GaAs, pHEMT, MMIC, Distributed Driver Amplifier, DC to 20 GHz.
- Part Models
- 1
- 1ku List Price
- Starting From $524.00
Part Details
- Gain: 17 dB
- Output Voltage to 10 Vp-p
- Saturated Output Power: +24 dBm
- Supply Voltage: +8V @ 160 mA
- 50 Ohm Matched Input/Output
- Die Size: 3.044 mm x 1.559 mm x 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K

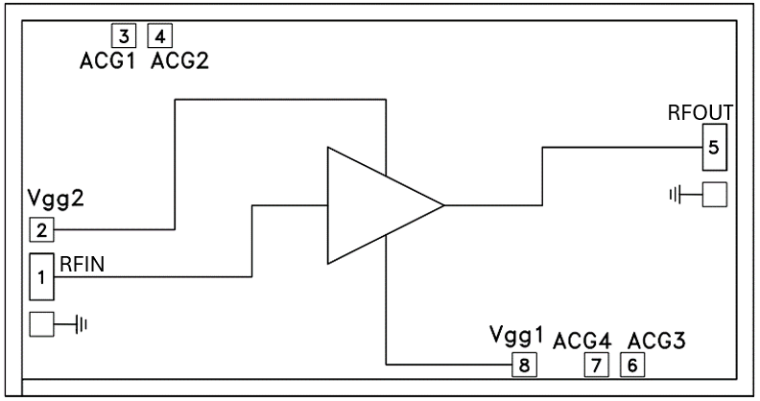

The ADH465S is a GaAs MMIC PHEMT Distributed Driver Amplifier die which operates between DC and 20 GHz. The amplifier provides 17 dB of gain, 2.5 dB noise figure and +24 dBm of saturated output power while requiring only 160 mA from a +8V supply. Gain flatness is excellent at ±0.25 dB as well as ±1 deg deviation from linear phase from DC to 10 GHz making the ADH465S ideal for optical networking, driver amplifier as well as test equipment applications. The ADH465S amplifier I/Os are internally matched to 50 Ohms facilitating easy integration into Multi-Chip-Modules (MCMs).
Applications
- Modulator Driver
- Test Instrumentation
- Military & Space
Documentation
Application Note 1
Controlled Drawings 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC8334 | CHIPS OR DIE |
