ADH392AS
RECOMMENDED FOR NEW DESIGNSAerospace, GaAs, MMIC, Low Noise Amplifier, 3.5 GHz to 7 GHz.
- Part Models
- 1
- 1ku List Price
- Starting From $592.00
Part Details
- Gain 17.2 dB
- Noise Figure 1.7 dB
- Single Supply Voltage: +5V
- 50 Ohm Matched Input/Output
- No External Components Required
- Small Die Size: 1.3 mm x 0.9 mm x 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K

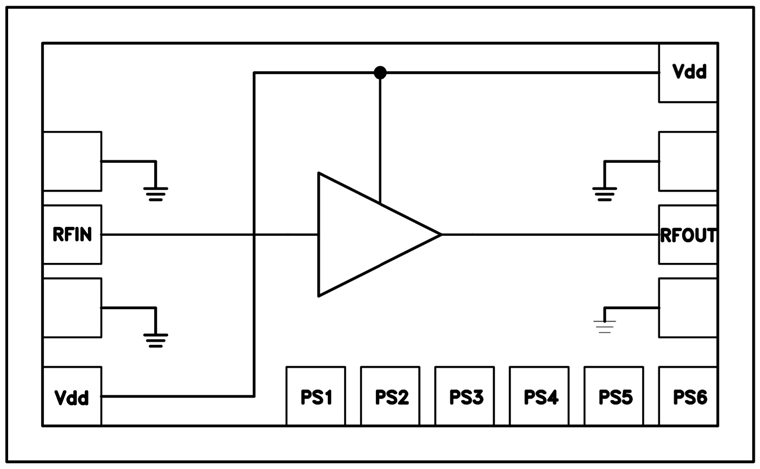

The ADH392AS is a GaAs, MMIC, Low Noise Amplifier die which operates between 3.5 GHz and 7 GHz. The amplifier provides 17.2 dB of gain, 1.7 dB noise figure, and 32.5 dBm IP3 from a +5V supply voltage. The ADH392AS has six bonding adjustment options which allow the user to select the bias point and output power of the device (+10 dBm to +19.7 dBm). The ADH392AS amplifier can easily be integrated into Multi-Chip-Modules (MCMs) due to its small size.
Applications
- Point-to-Point Radios
- VSAT
- LO Driver
- Military & Space
Documentation
Application Note 1
Controlled Drawings 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC8728 | CHIPS OR DIE |
