ADH311S
RECOMMENDED FOR NEW DESIGNSAerospace, GaAs, InGaP, HBT, MMIC, Gain Block Amplifier, DC to 6 GHz
- Part Models
- 1
- 1ku List Price
- Starting From $412.00
Part Details
- Gain: 14.5 dB
- P1dB Output Power: +15.5 dBm
- Output IP3: +32 dBm
- 50 Ohm Matched Input/Output
- Small Size: 0.38 mm x 0.58 x 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K

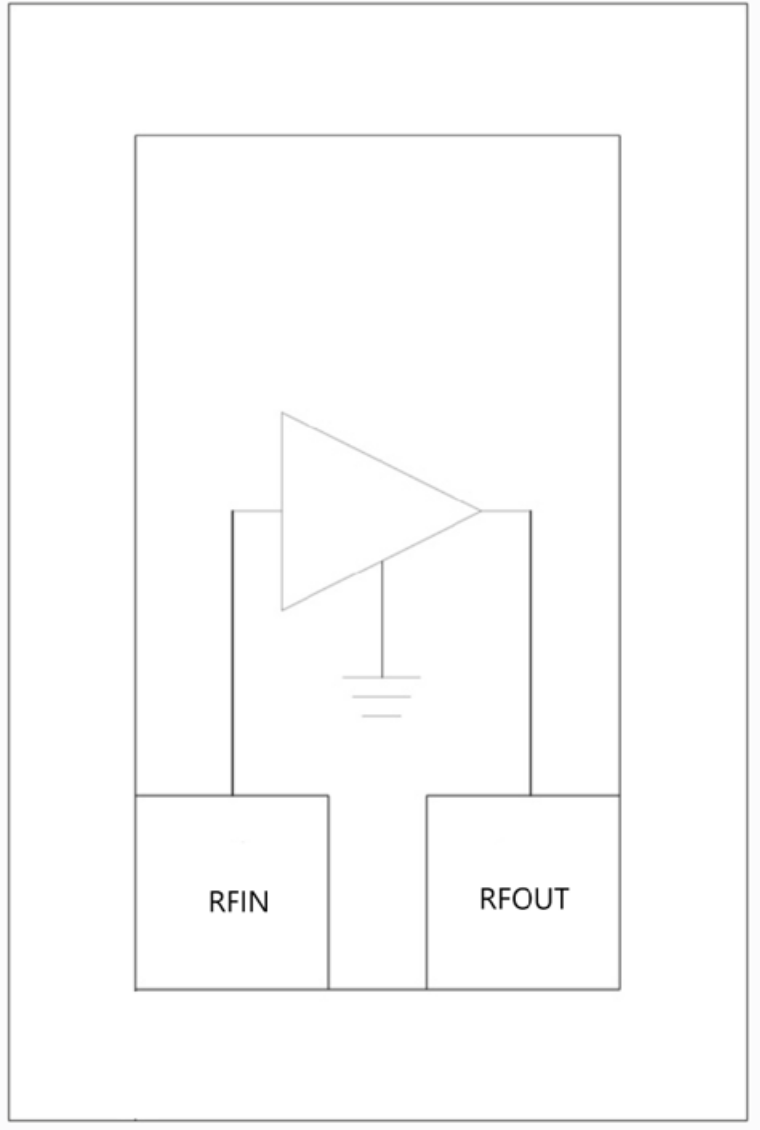

The ADH311S is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) Gain Block MMIC DC to 6 GHz amplifiers. This gain block amplifier can be used as either a cascadable 50 Ω gain stage or to drive the LO of mixers with up to +17 dBm output power. The ADH311S offers 14.5 dB of gain and an output IP3 of +32 dBm while requiring only 56 mA from a +5V supply. The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components.
Applications
- Microwave Radios
- Military & Space
Documentation
Application Note 1
Controlled Drawings 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC8430 | CHIPS OR DIE |
