AD8191A

PRODUCTION

4:1 HDMI/DVI Switch with Equalization

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

4 inputs, one output HDMI/DVI link
Pin-to-pin compatible with the AD8197A
4 TMDS channels per link
Supports 250 Mbps to 1.65 Gbps data rates
Supports 25 MHz to 165 MHz pixel clocks
Equalized inputs for operation with long HDMI cables (20 meters at 1080p)
Fully buffered unidirectional inputs/outputs
Globally switchable, 50 Ω on-chip terminations
Pre-emphasized outputs
Low added jitter
Single-supply operation (3.3 V)
4 auxiliary channels per link
Bidirectional unbuffered inputs/outputs
Flexible supply operation (3.3 V to 5 V)
HDCP standard compatible
Allows switching of DDC bus and 2 additional signals

Output disable feature
Reduced power dissipation
Removable output termination
Allows building of larger arrays
Two AD8191As support HDMI/DVI dual link
Standards compatible: HDMI receiver, DVI, HDCP
Serial (I²C slave) and parallel control interface

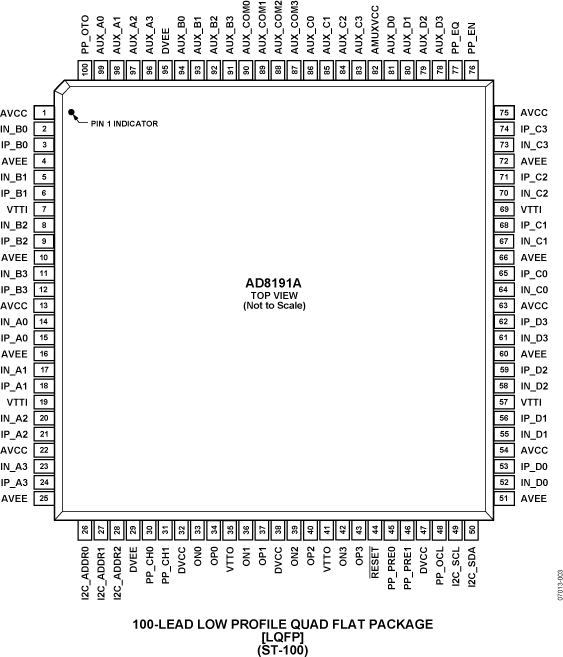

100-lead, 14 mm × 14 mm LQFP, Pb-free package

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

AD8191A: 4:1 HDMI/DVI Switch with Equalization Data Sheet (Rev.0) 11/01/2007

Technical Articles 1

Analysis of Common Failures of HDMI CT 04/02/2008

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8191AASTZ	100-Lead LQFP (14mm x 14mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8191AASTZ-RL	100-Lead LQFP (14mm x 14mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 18, 2016 - 16_0034 Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
		PCN16_0034_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
AD8191AASTZ	Obsolete
AD8191AASTZ-RL	Obsolete
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
		07_0077Rev D_LQFP_Dec17 07_0077Rev D_MQFP_Dec15 07_0077Rev D_Obsolesence_Dec15 07_0077Rev D_TQFP_Dec15 Material_Report PCN07_0077_Form QFP Transfer Qualification Results-tests_DEC12CL
AD8191AASTZ	Obsolete
AD8191AASTZ-RL	Obsolete
Jul 13, 2016 - 16_0050 ADI Corporate Obsolescence Notice-2016 (Standard Products)
		PDN16_0050_Form Material_Report
AD8191AASTZ	Obsolete
AD8191AASTZ-RL	Obsolete
