AD4195-4
RECOMMENDED FOR NEW DESIGNS24-Bit, 62.5kSPS, Multichannel, Low-Noise Precision Sigma-Delta ADC
- Part Models
- 2
- 1ku List Price
- Starting From $6.34
Part Details
- Input referred noise: 10nV at 3.8SPS, Gain = 128
- Crosspoint multiplexed analog inputs
- 4 Differential/8 Pseudodifferential inputs
- Ultra-low noise integrated PGA, gains of 0.5 to 128
- Output data rate: 3.8SPS to 62.5kSPS
- Flexible digital filters
- Low latency sinc filters
- Simultaneous 50Hz/60Hz rejection
- Band-gap reference with 5ppm/°C drift typical
- Internal oscillator
- Analog power supply: 4.75V to 5.25V or ±2.5V
- Digital power supply: 1.7V to 5.25V
- Matched programmable excitation current sources
- Low-side power switches
- On-chip bias voltage generator
- Internal temperature sensor
- Four general-purpose inputs/outputs
- Internal and system calibration
- Sensor burnout detection
- Diagnostic functions
- Per channel configuration
- Flexible automatic channel sequencer
- 3- or 4-wire serial interface (Schmitt trigger on SCLK)
- SPI, QSPI, MICROWIRE, and DSP compatible
- TDM compatible interface for data streaming
- Performance temperature range: −40°C to +105°C
- Functional temperature range: −40°C to +125°C

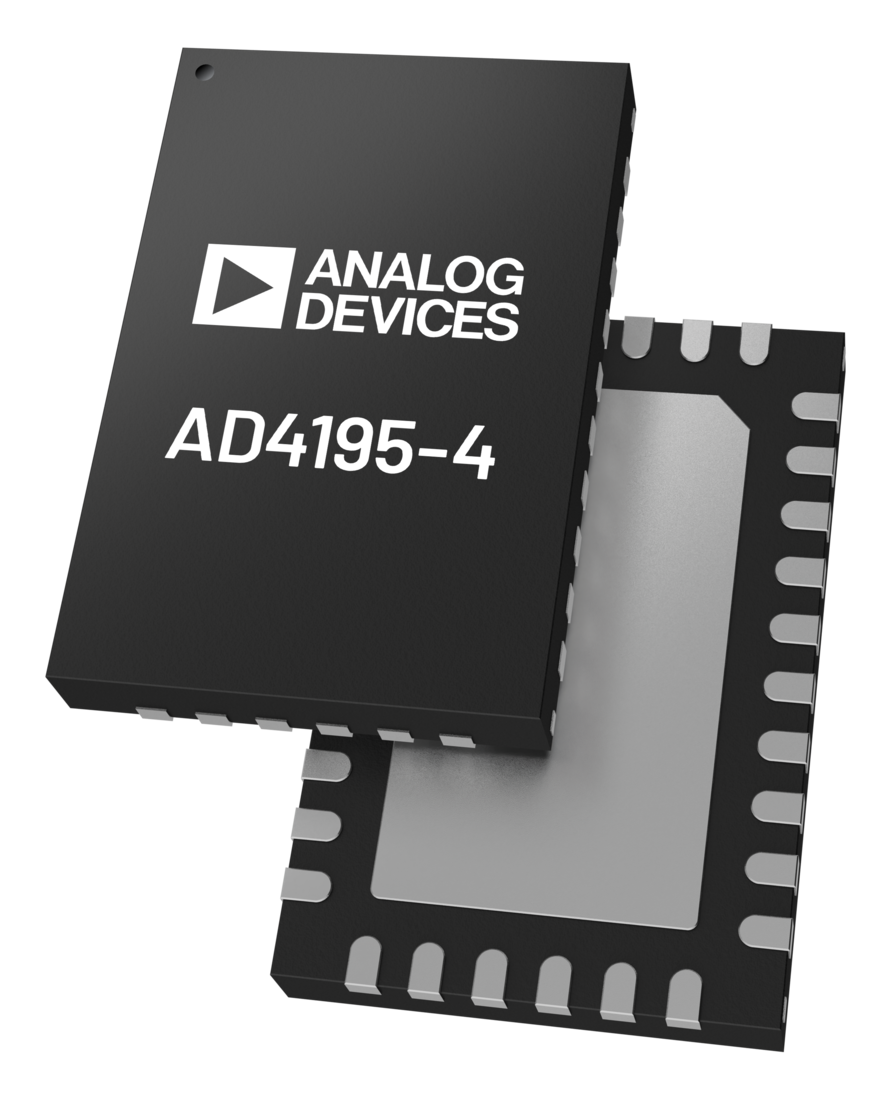

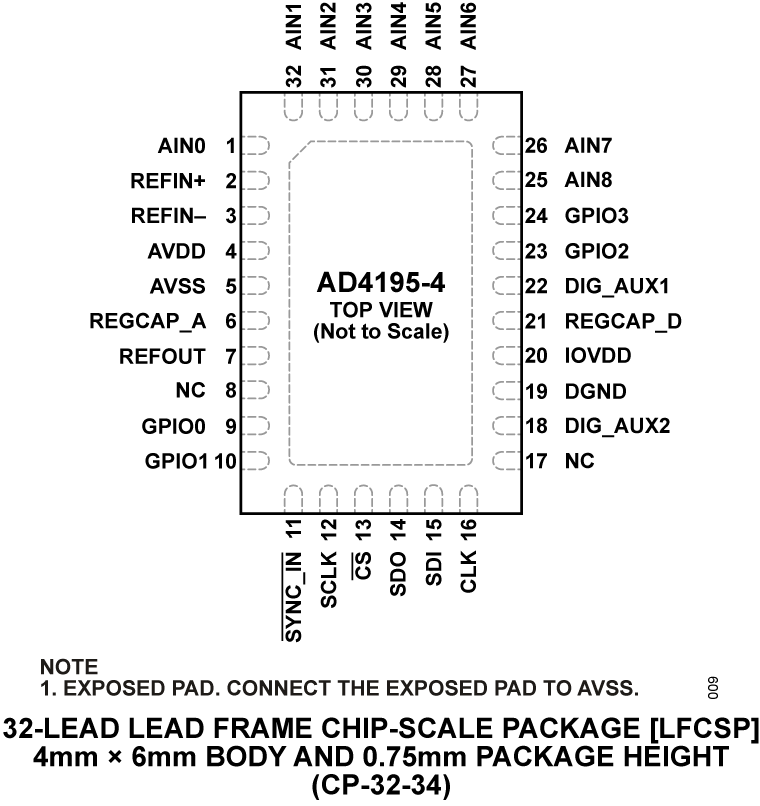

- Available in 32-lead 4mm x 6mm LFCSP package
The AD4195-4 is a low noise, completely integrated analog front end for high precision measurement applications. The device contains a low noise, 24-bit Σ-Δ analog-to-digital converter (ADC) and can be configured to have four differential or eight single-ended or pseudodifferential inputs. The on-chip low-noise gain stage ensures that signals of small amplitude can be interfaced directly to the ADC.
Please see the data sheet for the full description.
APPLICATIONS
- Industrial process control: PLC/DCS modules
- Temperature measurement
- Pressure measurement
- Medical and scientific instrumentation
- Chromatography
- Environmental monitoring
- Electrical test and measurement
- Instrumentation
- Weigh scale
