Altera Cyclone III FPGA Development Kit
顶部
概览
优势和特点
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
参考资料
-
DK-DEV-3C120N / DK-EMB-3C120N / DK-DSP-3C120N Dev Kit Schematic2014/8/4PDF1M
电路描述

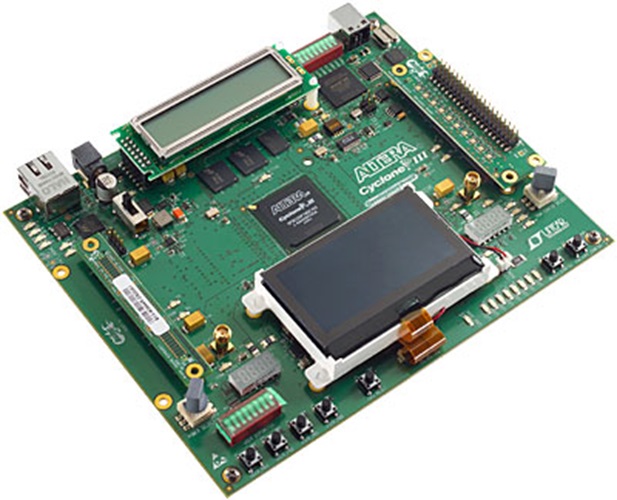

The Altera Cyclone III FPGA Development Kit combines the largest density low-cost, low-power FPGA available with a robust set of memories and user interfaces. Inside this development kit, you’ll find everything you need to begin Cyclone III FPGA development.
