概览

优势和特点

  • 3V to 80V Input Range
    • 3V to 75V if Reverse Protection FET is used
  • 3% Accurate Current Monitoring
  • Programmable Current-Limit Response
  • Reverse Voltage/Current Protection
  • Loss of GND Protection
  • 6% Accurate Power Limiting (Input or Output)
  • -40°C to +125°C Operation
  • 23-Lead, 4.5mm x 5.75mm, FC2QFN Package

产品详情

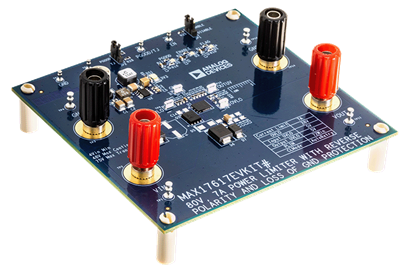

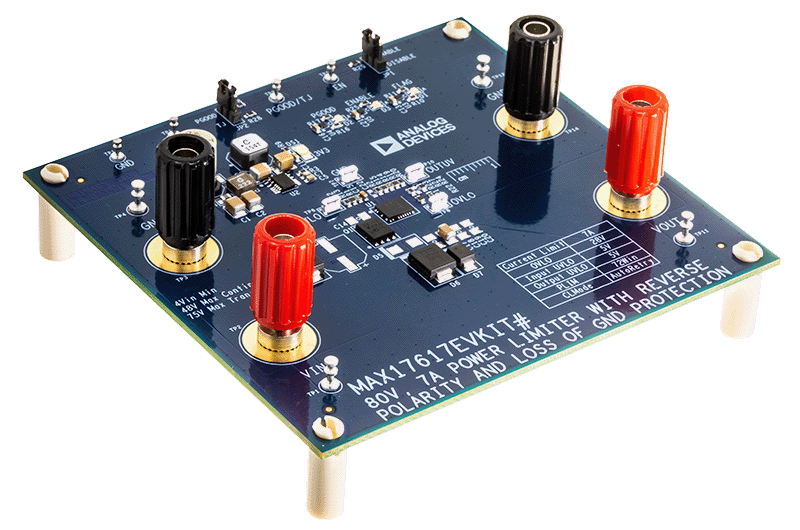

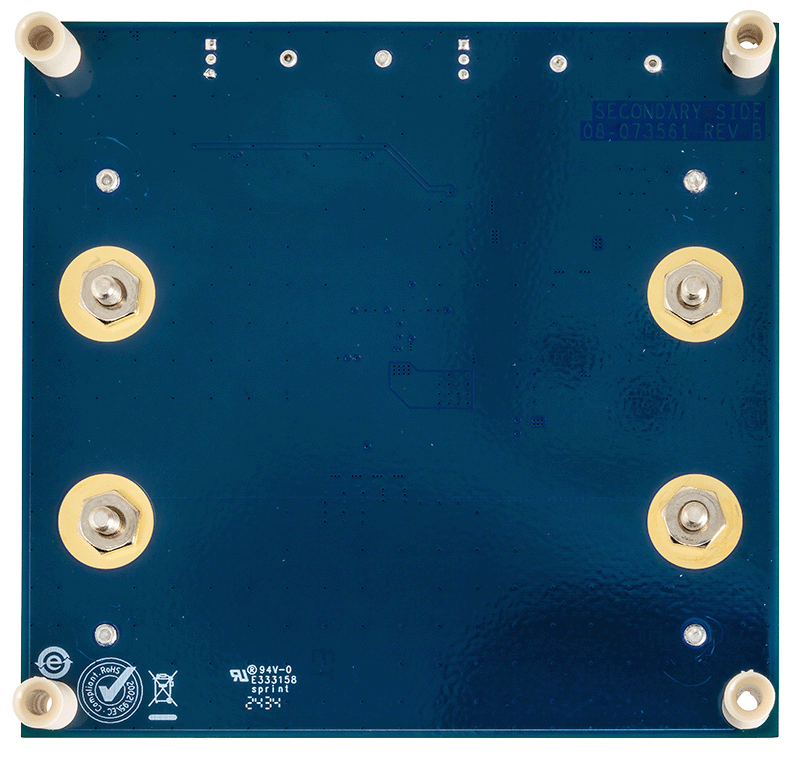

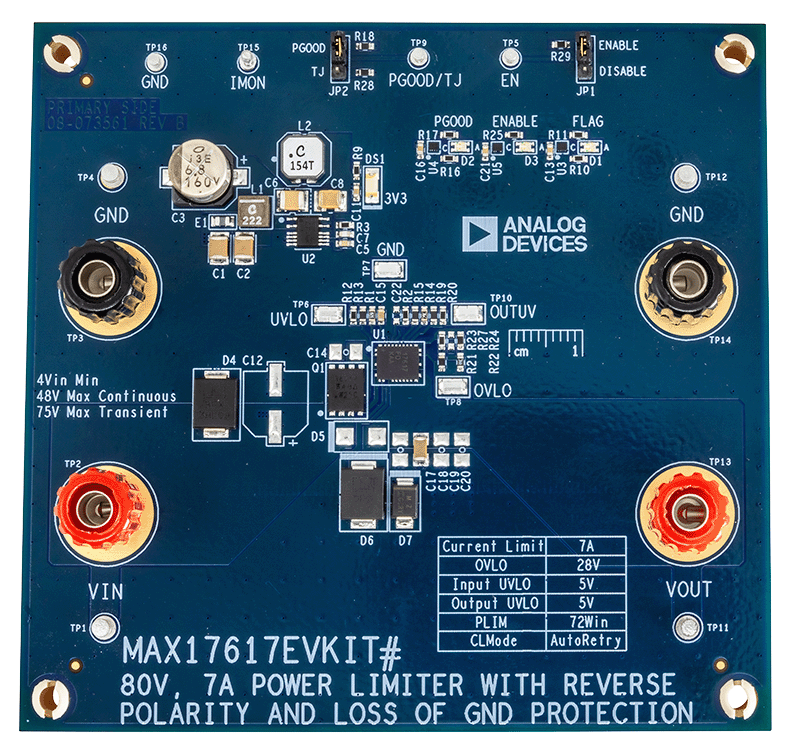

The MAX17617EVKIT# evaluation kit (EV kit) features the MAX17617 electronic fuse (eFuse) set up for 5V to 28V operation with a 7A auto-retry current limit. A 3.3V buck regulator provides a voltage for pull-ups and logic to run indicator LEDs on the board. The board also includes an additional external N-channel field-effect transistor (FET) for reverse conduction protection.

相关产品

使用入门

Required Equipment

  • 30V DC Power Supply with 7A minimum capability
  • Adjustable Load (0A–8A)
  • Digital multimeters (DMMs)
