EVAL-ADPL42002

产品详情

The ADPL42002 evaluation boards evaluate the ADPL42002, a 20V, 200mA, low noise, CMOS, low dropout (LDO) linear regulator.

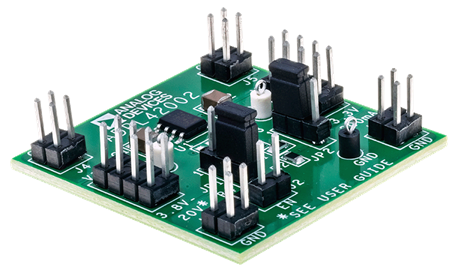

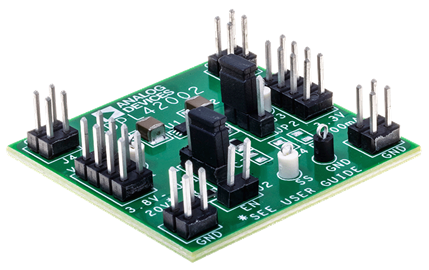

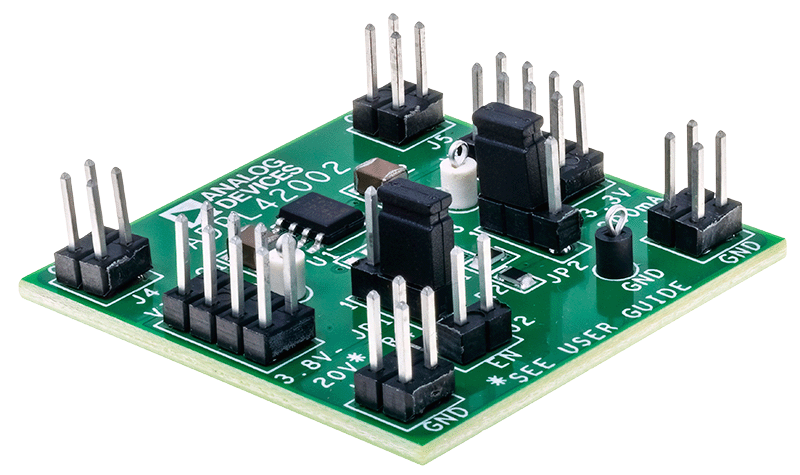

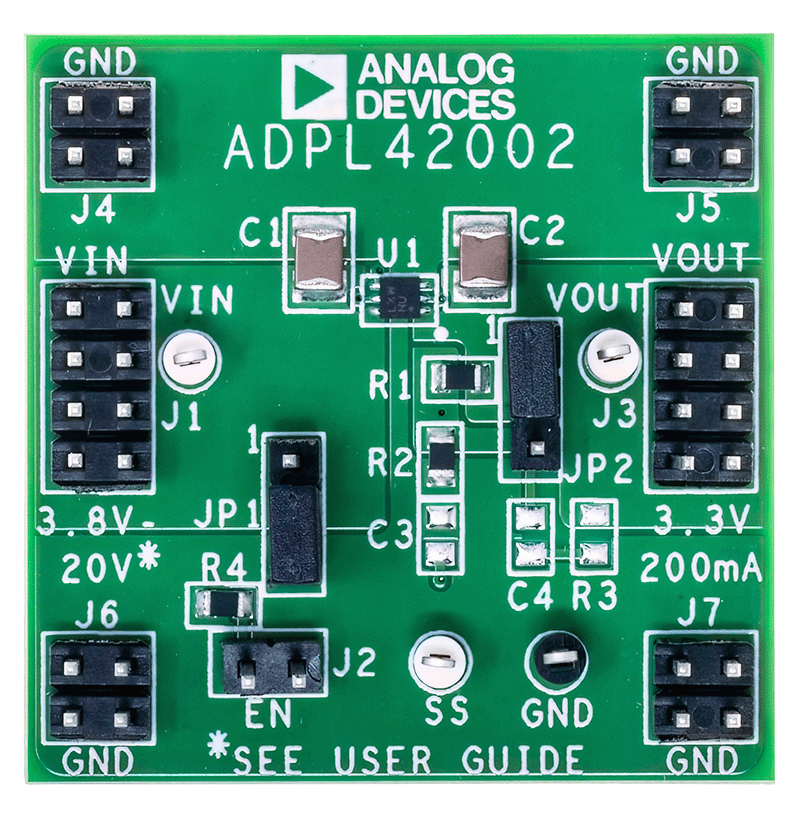

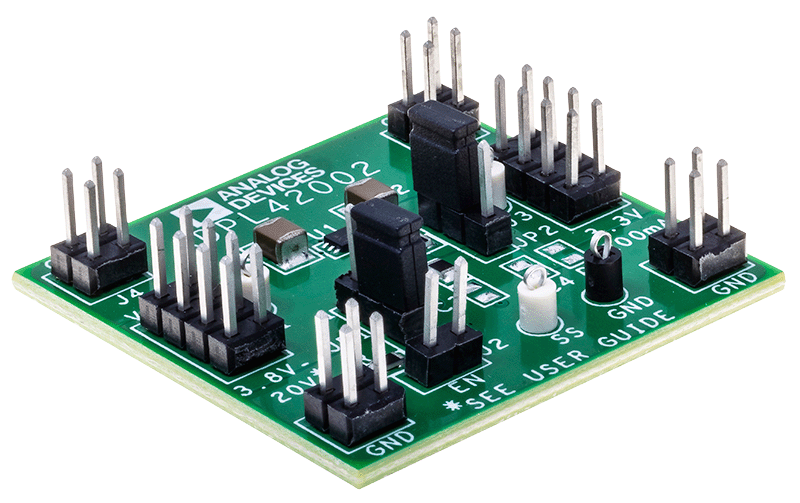

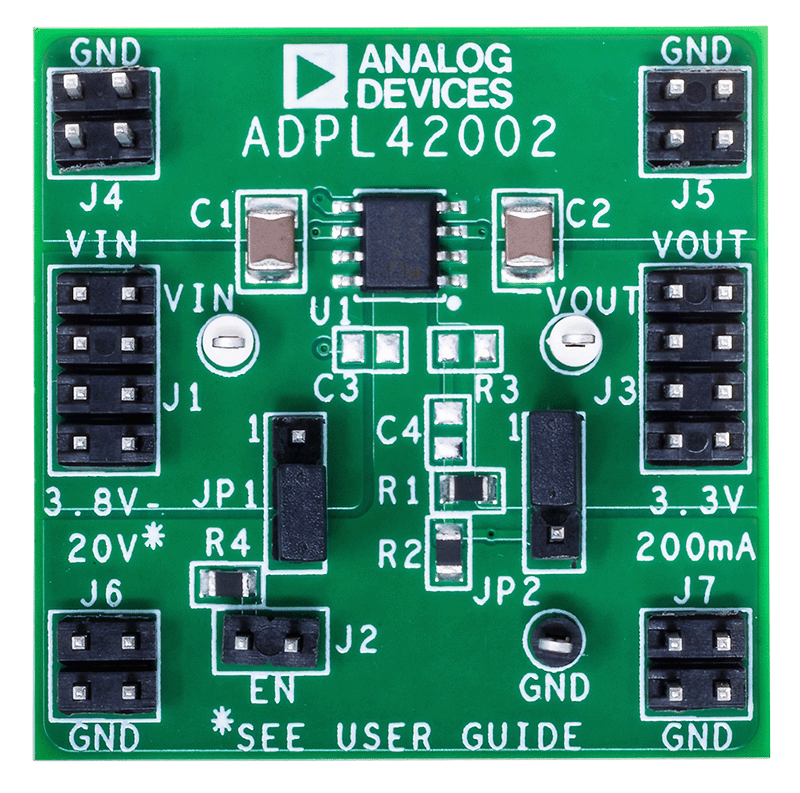

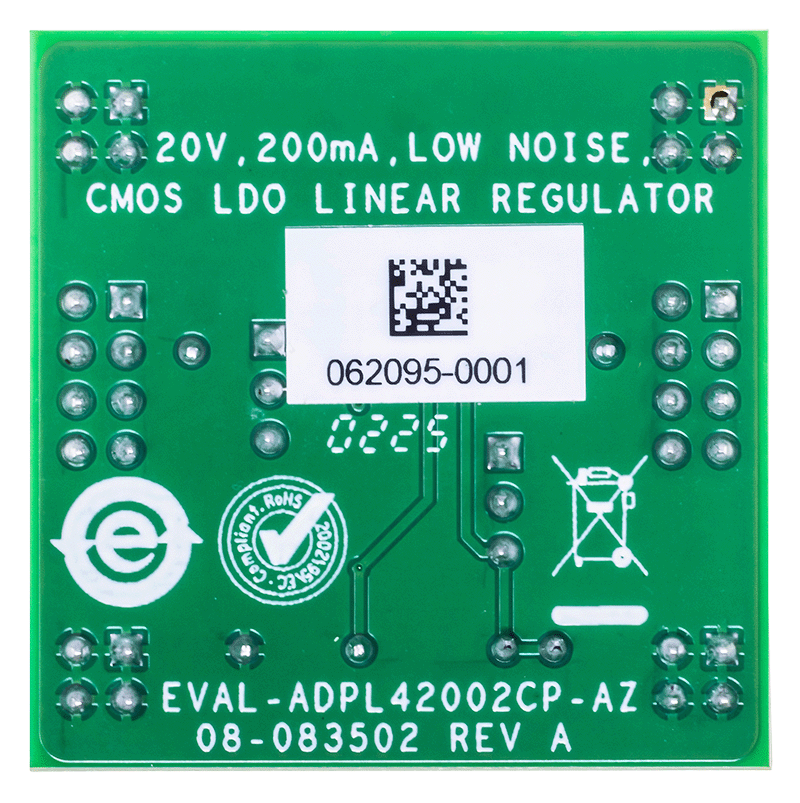

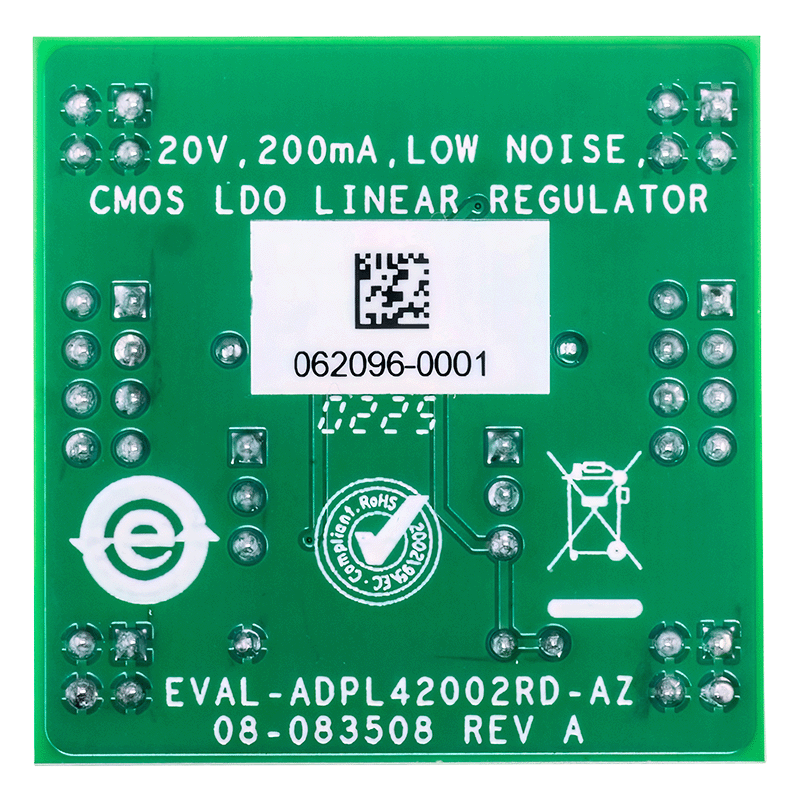

See the Ordering Information section for the two types of evaluation boards available to evaluate the ADPL42002. One board features a 6-lead, 2mm x 2mm LFCSP package, while the other utilizes an 8-lead SOIC package.

The evaluation boards provide a 3.3V output over an input range of 3.8V to 20V. The maximum output current is 200mA, but output current is also limited by the thermal dissipation of the ADPL42002. The evaluation boards use the adjustable version of the ADPL42002. A resistor divider programs the output of the adjustable ADPL42002 to 3.3V. Noise performance for the adjustable ADPL42002 can be made comparable to a fixed output ADPL42002 by installing optional RC network components into the placeholders that the evaluation board printed circuit board (PCB) designs provide. The evaluation boards can easily be configured with a jumper for fixed output versions of the ADPL42002 that normally have their SENS/ADJ pin connected directly to the output.

In addition to connectors for the input voltage, output voltage, EN control signal and ground, the evaluation boards provide test points for the input, output, and SS pin (for the LFCSP package) voltages. A jumper normally connects the EN pin to the V_IN input, but the jumper can be repositioned so EN can be driven externally at its connector instead. A pull-down resistor is also connected to the EN pin to drive the pin low when the device needs to be turned off.

For more details, refer to the ADPL42002 data sheet, which must be consulted in addition to this user guide when using the ADPL42002 evaluation boards.
