TMCS-28
推荐新设计使用10.000 lines A/B/N encoder with 28mm housing diameter for 5mm shaft diameter
- 产品模型
- 6
产品详情
- Low cost
- High resolution
- Small dimension
- Easy mounting
With their exceptional low speed performance stepper motors are often a good choice where a servo is required but a gearbox for some reason is not beneficial. With their high pole count stepper motors servos work better with high resolution encoders.

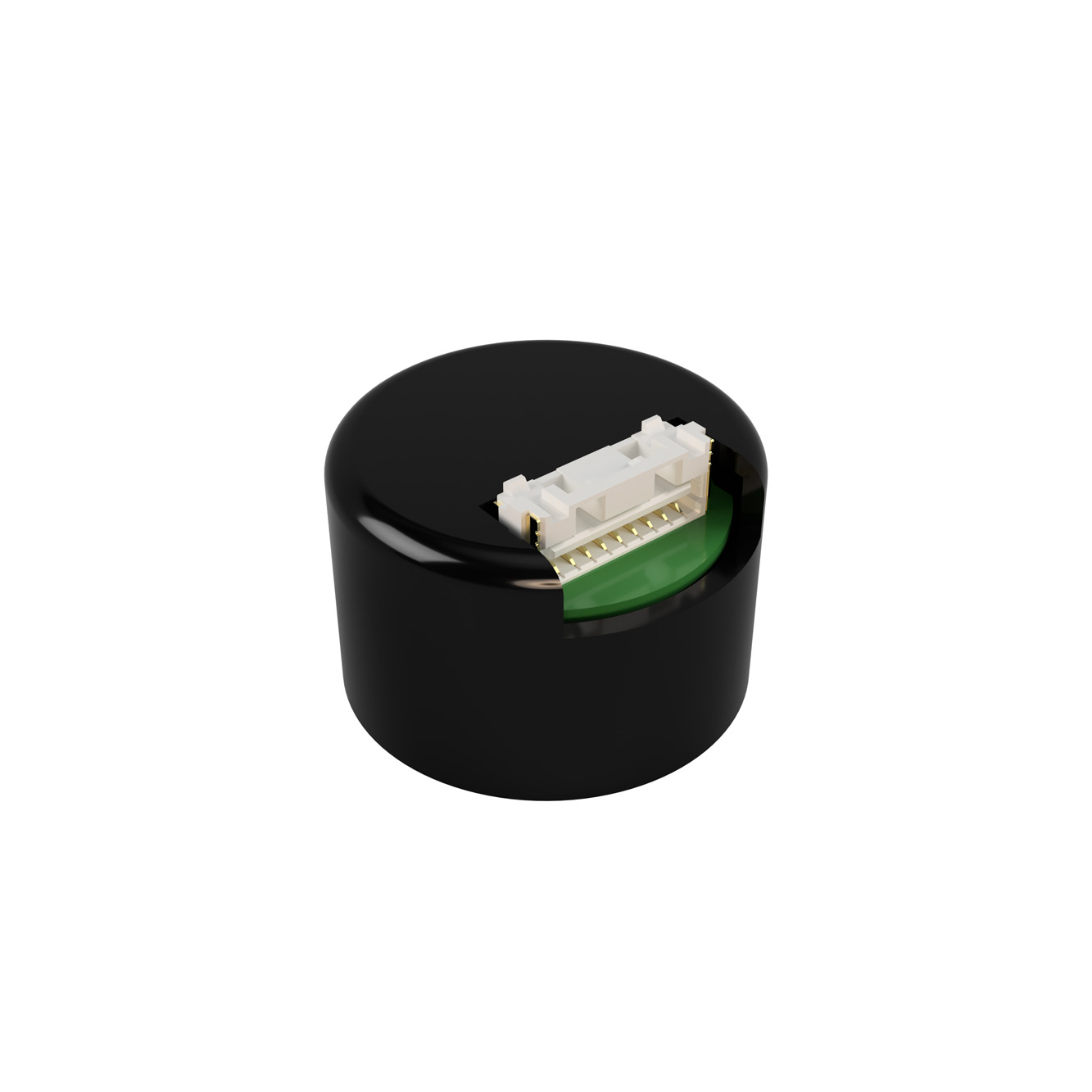

TMCS-28 is a low-cost and small-size optical incremental encoder for use with stepper motors and 3-phase PMSM/BLDC motors. It comes with high resolution optical code wheels with a resolution of up to 10K lines.
The shaft diameter of TMCS-28-6.35-10k and TMSC-28-6.35-1k is 6.35 mm.
APPLICATIONS
- Stepper Motor FOC
- Servo Motors
- Precision Motion Control
- Automated Equipment
- Robotics
Technical Details
| TMCS-28-5-10k-AT-01 | TMCS-28-6.35-10k-AT-01 | TMCS-28-5-1k-AT-01 | TMCS-28-6.35-1k-AT-01 | |
| Status | Active | Active | Active | Active |
| Resolution | 40000 increments | 40000 increments | 4096 increments | 4096 increments |
| Hollow Diameter | 5mm | 6mm | 5mm | 6mm |
| Housing Diameter | 28mm | 28mm | 28mm | 28mm |
| Level | TTL | TTL | TTL | TTL |
| a/b/n incremental | ✓ | ✓ | ✓ | ✓ |
参考资料
数据手册 1
应用笔记 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| TMCS-28-10K-KIT | N/A | ||
| TMCS-28-1K-KIT | N/A | ||
| TMCS-28-5-10K-AT-01 | N/A | ||
| TMCS-28-5-1K-AT-01 | N/A | ||
| TMCS-28-6.35-10K-AT-01 | N/A | ||
| TMCS-28-6.35-1K-AT-01 | N/A |
