TMCS-20
推荐新设计使用8192 lines A/B/N encoder with 20mm housing diameter for 4mm shaft diameter
- 产品模型
- 2
产品详情
- Low cost
- High resolution
- Small dimension
- Easy mounting
With their exceptional low speed performance stepper motors are often a good choice where a servo is required but a gearbox for some reason is not beneficial. With their high pole count stepper motors servos work better with high resolution encoders.

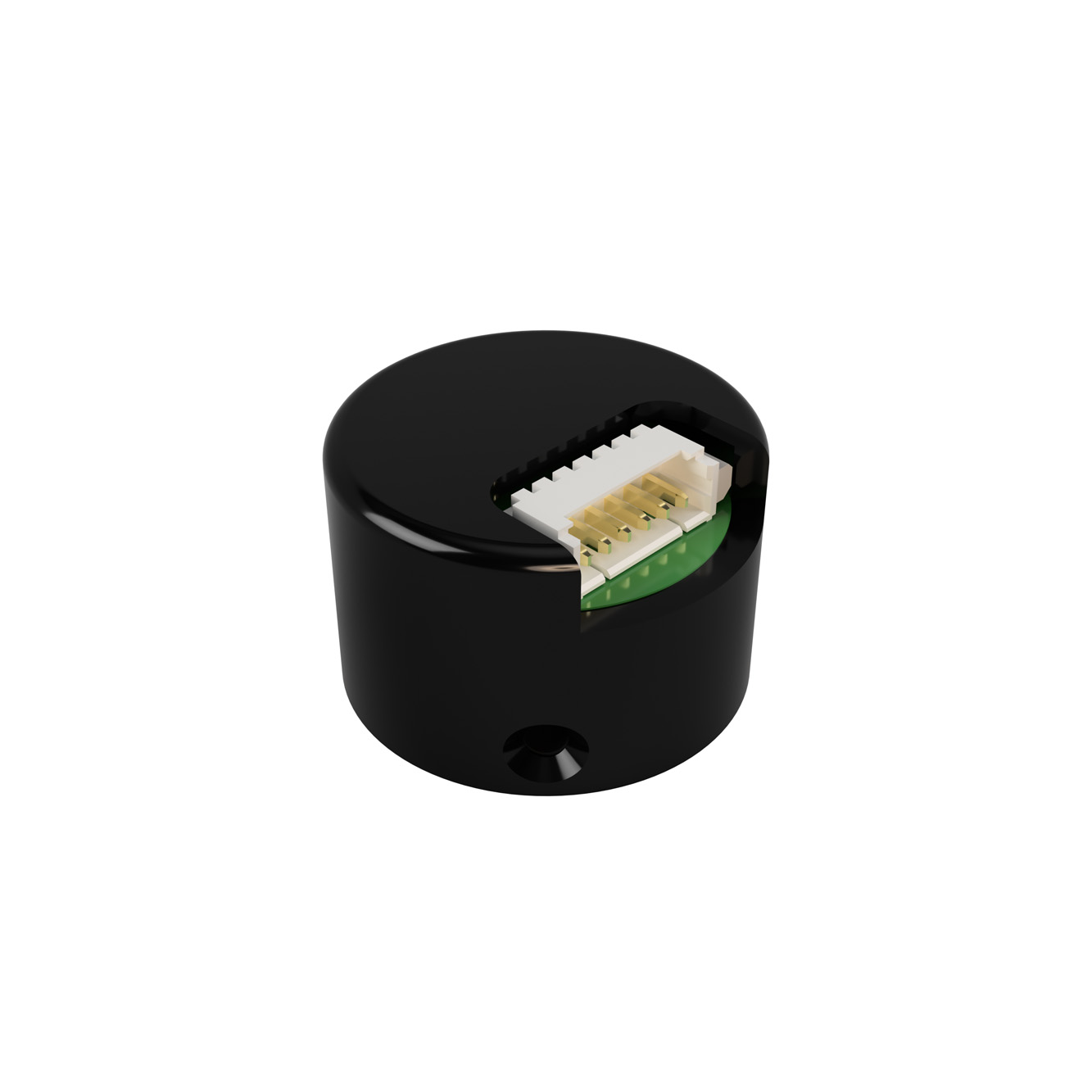

TMCS-20 is a low-cost and small-size optical incremental encoder optimized for small stepper motors. It comes with high resolution optical code wheels with a resolution of up to 8K lines.
APPLICATIONS
- Stepper Motor FOC
- Servo Motors
- Precision Motion Control
- Automated Equipment
- Robotics
