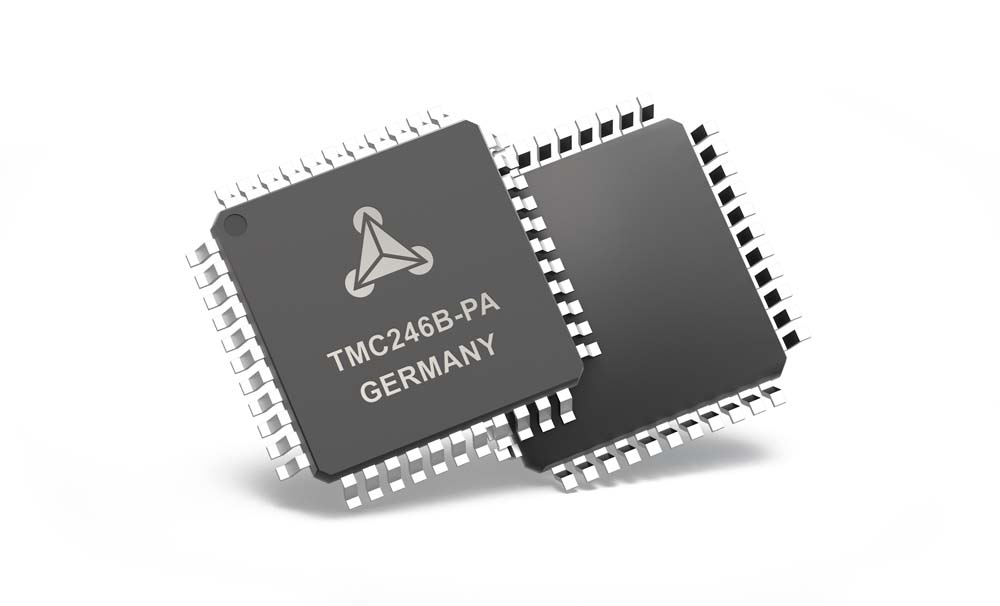

TMC246
量产Stepper motor driver 7 to 34V, up to 1.1A with SPI Interface, 64 µSteps
- 产品模型
- 2
产品详情
- High Current up to 1500mA and 1000mA at 105°C
- Voltage Range 7 V to 36 V DC
- 3.3 V or 5 V for digital part
- SPI & External Analogue / Digital Signals
- Microstep Resolution 16 microsteps using internal DACs
- Low Power Dissipation via low RDS-ON power stage
- Protection: overvoltage, overtemperature & short circuit
- Diagnostics: overcurrent, open load, 2 level overtemperature
- StallGuard™ sensorless stall detection and load measurement
- Mixed Decay for smooth motor operation
- Slope Control for reduced electromagnetic emissions
- Current Control for cool motor and driver
- Standby and Shutdown Mode
- Optical Inspectable Package 10x10mm Standard TQFP-44
The TMC246 provides an integrated motor driver solution for Laboratory Automation, Scanners and other automated equipment applications. The device has an integrated microstepping current control and the sensorless stall detection technology StallGuard™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon TrenchFET power MOSFETs configured as full H-bridges to drive the motor windings. The TMC246 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC246 is designed for a supply voltage of 7 to 34V. The device has a SPI interface for control and diagnostics.
APPLICATIONS
- Replace Classic Bipolar Driver ICs
- Office Automation
- Printer and Scanner
- Heliostat Controller
- ATM, Cash recycler
- POS
- CCTV, Security
- Antenna Positioning
- Pumps and Valves
- Lab Automation
- Liquid Handling
- Medica
参考资料
数据手册 1
应用笔记 2
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| TMC246B-PA | 44-LQFP-10X10X1.4 | ||
| TMC246B-PA-T | 44-LQFP-10X10X1.4 |
