RH3083MK

量产

Adjustable 2.8A Single Resistor Low Dropout Regulator

数据手册 (Rev. B) 产品选型表

产品模型: 3

Viewing:

产品详情

Outputs May Be Paralleled for Higher Current and Heat Spreading
Single Resistor Sets Output Voltage
Output Adjustable to 0V
50μA SET Pin Current: 1% Initial Accuracy

Radiation Performance

Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883 Up to:

200kRad (Si), per Condition A at 50Rads (Si)/sec
100kRad (Si), per Condition D at 10mRads (Si)/sec
ELDRS Pass 100kRad (Si)

Single Event Latch+up (SEL) Threshold Linear Energy Transfer (LET)

≥ 110MeV.cm²/mg at T_CASE = 100°C
MIL-PRF-38535 Class V Compliant

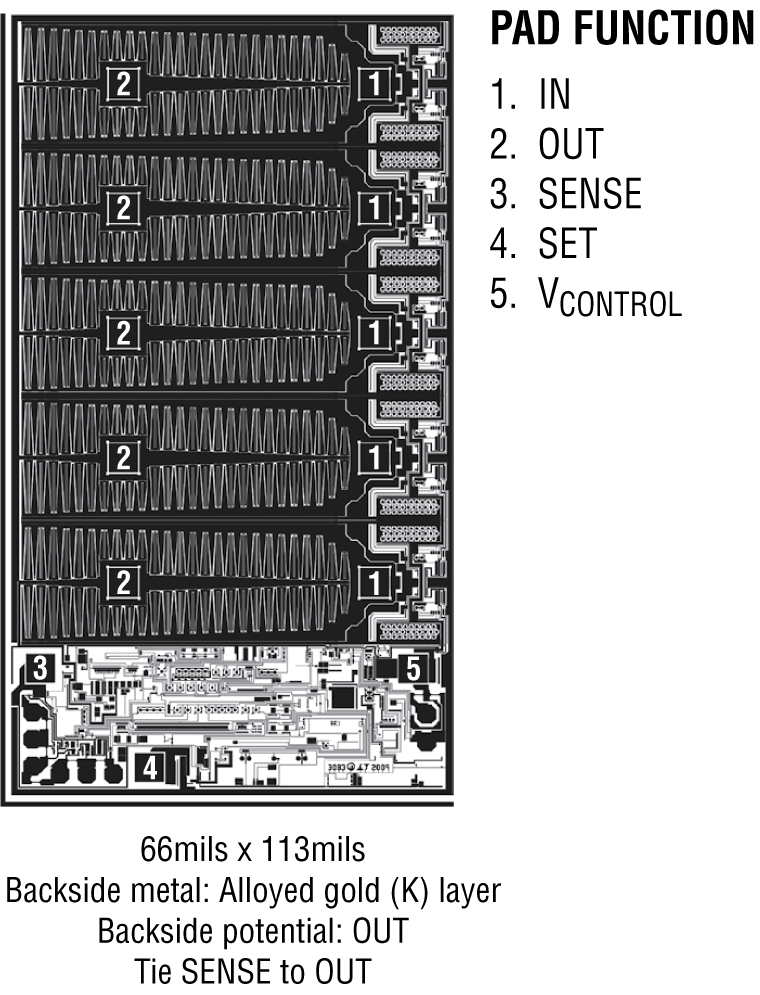

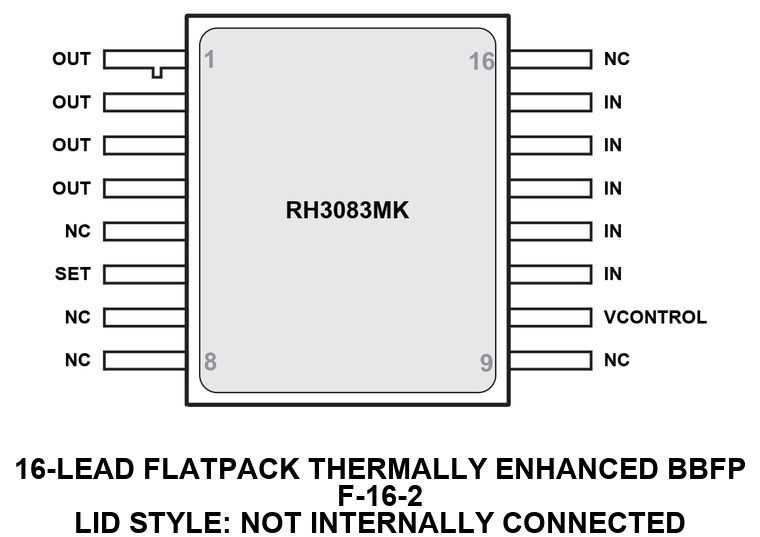

The RH3083 is a 2.8A low dropout linear regulator with a unique architecture featuring a precision current source and voltage follower which allows the output to be programmed to any voltage between zero and 18V. Multiple regulators can be paralleled to increase total output current and spread heat over a system PC board with no need for heat sinking. The pass transistor collector can be brought out independently of the circuit supply voltage to allow dropout voltage to approach the saturation limit of the pass transistor. A small 10μF capacitor on the output with an ESR of less than 0.5Ω is adequate to ensure stability. Applications with large output load transients require a larger output capacitor value to minimize output voltage change. Input circuitry ensures output safe operating area current limiting and thermal shutdown protection. The rated output current of an RH3083-based part is fixed by internal wire length/resistance. Analog Devices dice element evaluations are based on parts rated for 2.8A output current.

Third Party Vendor Availability

Analog Devices partners with third party vendors who assemble and test packaged products with RH Dice inside.

For MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.


Part Number	Description	SCD or SMD#
MSK5983	2.8A Positive Adjustable LDO Regulator	-
MSK5984	2.8A Positive Adjustable LDO Regulator	-
MSK5985	2.8A Positive Adjustable LDO Regulator	-
MSK5986	2.8A Positive Adjustable LDO Regulator	-
VRG8669	2.5A Positive Adjustable LDO Regulator	Pending
VRG8697	2.5A Dual Positive Adjustable LDO Regulator	Pending
VRG8698	2.5A Dual Positive Adjustable LDO Regulator	Pending

Applications

High Efficiency Linear Regulators
Constant Voltage/Current Regulators
Programmable Current Source/Sink
Space System Power Supplies
Switching Power Supply Post Regulators
Very Low Voltage Power Supplies
