MAX17335
推荐新设计使用AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector
- 产品模型
- 2
产品详情
- Non-Volatile Programmable Stand-Alone Charger
- 1% Charge Current, 256 Current Settings
- 0.25% Charge Voltage, 2.42V to 4.8V, Configurable
- Optional Manual Charge Control
- FET Temperature Limit and Heat Regulation
- Prequal, SmartFull, and Step-Charging Options
- JEITA—9 Temperature Regions
- Battery Health + Programmable Safety/Protection
- Overvoltage/Overcharge Current
- Temperature Region Dependent
- Overcharge/Discharge/Short-Circuit Current
- Over/Under Temperature
- Zero-Volt or >1.8V Charging Option
- Undervoltage + SmartEmpty
- Overvoltage/Overcharge Current
- Pushbutton Wakeup/Factory Ship Mode (0.5μA)
- ModelGauge m5 EZ Algorithm
- Percent, Capacity,Time-to-Empty/Full, Age
- Cycle+™ Age Forecast + Age-Scheduled Charging
- Dynamic Power—Estimates Power Capability
- SHA-256 Authentication to Prevent Cloning
- Precision Measurement Without Calibration
- Current, Voltage, Power, Time, Cycles
- Die Temperature and two Thermistors
- History Logging, User Data
- Low Quiescent Current
- FETs Enabled: 35μA Active, 21μA Hibernate
- FETs Disabled: 8μA Ship, 0.5μA Shutdown
- 2-Wire (I2C) and 1-Wire®

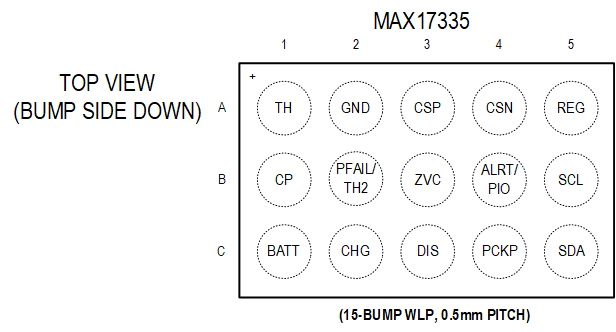

- 1.9 mm x 2.5 mm 15-Bump 0.5mm Pitch Wafer-Level Package (WLP)
The MAX17335 is a 35μA IQ stand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the IC regulates charging by modulating the charge N-FET, using AccuCharge™charger technology. The IC regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following applications:
- Low-Power Charging
- 1mA to 500mA directly from universal 5V USB
- No USB identification/coordination needed
- High-Power Parallel Packs (>1000mA)
- Independently charges parallel packs
- Prevents cross-charging for parallel batteries
- Coordinates external DC-DC with alerts
- Minimizes dropout and heat
- Protection and Charging Control—pack or host side
The IC ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.
The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.
The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions, and internal self-discharge protection using external high-side N-FETs to ensure that the lithium-ion/polymer battery operates under safe conditions which prolongs the life of the battery.
APPLICATIONS
- USB PPS and Direct Charging
- Smart Batteries and Hybrid Supercap Batteries
- Dual Screen Smartphones, Tablets
- Hearables, Wearables, Smartwatches
- Medical Devices, Health, Fitness Monitors
- Handheld Radios, Computers, Accessories
- Home/Building Automation, Sensors, Cameras
- Parallel Battery AR/VR Systems
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX17335X22+ | 15-WLCSP-N/A | ||
| MAX17335X22+T | 15-WLCSP-N/A |
这是最新版本的数据手册
