LTC2312-12

量产

采用 TSOT 封装的 12 位、500ksps、串行采样 ADC

数据手册 (Rev. B) 产品选型表

产品模型: 13

Viewing:

产品详情

500ksps 吞吐速率
无周期延迟
保证 12 位，无漏失码
3V 或 5V 单电源

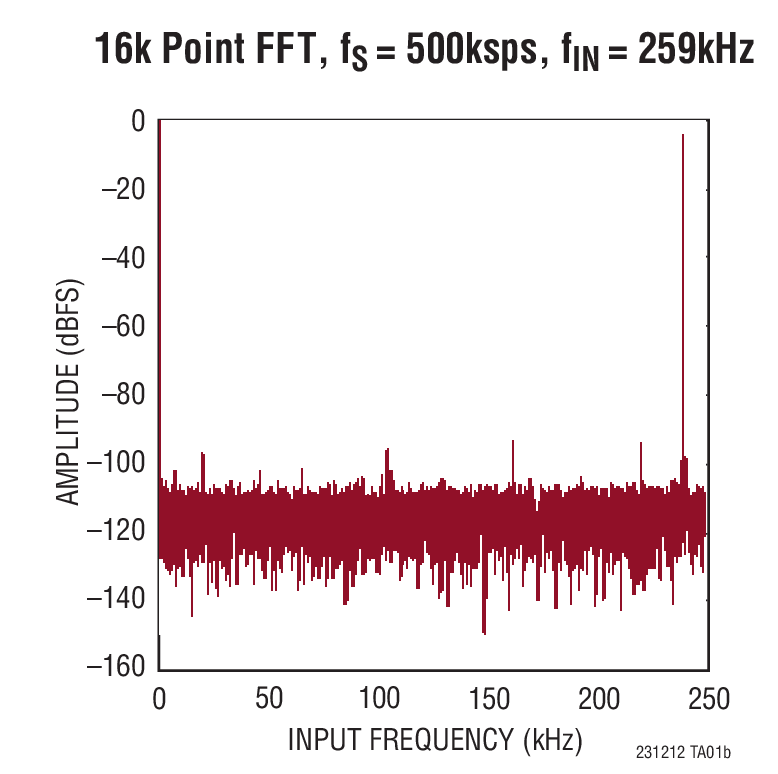

低噪声： 73dB SNR
低功率： 8mW (在 500ksps 和 3V 电源)
低漂移 (20ppm/ºC 最大值) 2.048V 或 4.096V 内部基准
睡眠模式具有 <1μA 的典型电源电流
可快速唤醒的打盹模式 (在单个转换周期之内)
分离的 1.8V 至 5V 数字 I/O 电源
高速 SPI 兼容型串行 I/O
保证工作温度范围： –40ºC 至 125ºC

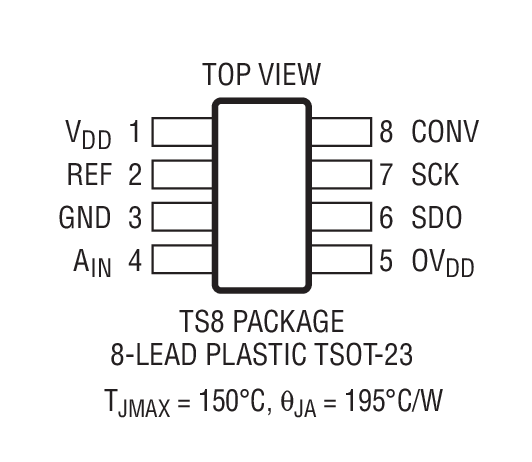

8 引脚 TSOT-23 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC2312CTS8-12#PBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312CTS8-12#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312CTS8-12#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312HTS8-12#PBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312HTS8-12#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312HTS8-12#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312HTS8-12#WTRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312HTS8-12#WTRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312ITS8-12#PBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312ITS8-12#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312ITS8-12#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312ITS8-12#WTRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2312ITS8-12#WTRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

Evaluation Software 3

LinearLab Tools

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

PScope

The PScope System is a USB-based product demonstration and data acquisition system for use with high performance ADCs and signal chain receiver family. PScope allows users to evaluate the SNR, SFDR, THD, as well as other key parameters, quickly and easily.
