LTC1729

量产

锂离子电池充电器终止控制器

数据手册产品选型表

产品模型: 14

Viewing:

产品详情

内置充电终止功能电路：3 小时超时时间
具状态指示器的 C/10 检测
涓流充电预查验 (如果电池电压 < 2.7V)
当 0°C < T < 50°C时启用充电功能
自动充电器接入检测
自动电池接入检测
一节或两节电池、每节电池 4.1V 或每节电池 4.2V 选项
精准的内部 0.2% 电压反馈分压器
可兼容 LT1505 / LT1510 / LT1511 / LT1512 / LT1513 / LT1769
小占板面积 / 外形扁平

         

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型

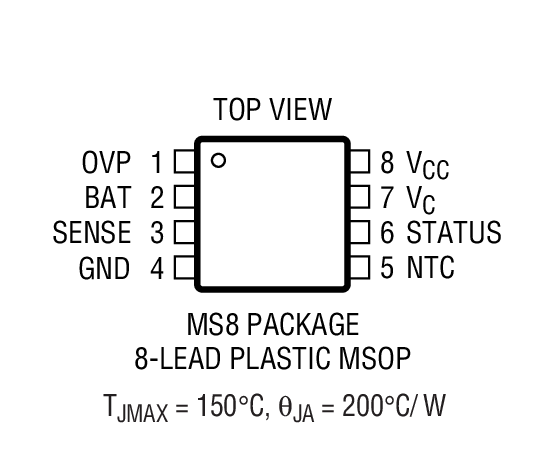

LTC1729CMS8-4.1#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-4.1#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-4.2#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-4.2#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-8.2#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-8.2#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-8.4#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CMS8-8.4#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

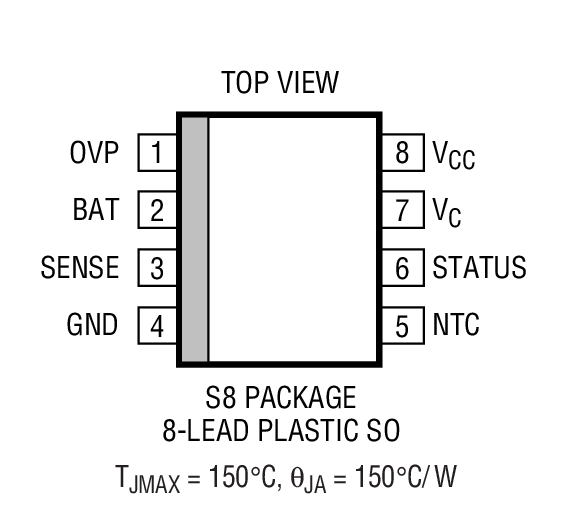

LTC1729CS8-4.1#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CS8-4.1#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CS8-8.2#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CS8-8.2#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CS8-8.4#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1729CS8-8.4#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

6月 5, 2024 - 24_0004 Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
		PCN24_0004_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1729CMS8-4.1#PBF	量产
LTC1729CMS8-4.1#TRPBF	量产
LTC1729CMS8-4.2#PBF	量产
LTC1729CMS8-4.2#TRPBF	量产
LTC1729CMS8-8.2#PBF	量产
LTC1729CMS8-8.2#TRPBF	量产
LTC1729CMS8-8.4#PBF	量产
LTC1729CMS8-8.4#TRPBF	量产
2月 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC1729CMS8-4.1#PBF	量产
LTC1729CMS8-4.1#TRPBF	量产
LTC1729CMS8-4.2#PBF	量产
LTC1729CMS8-4.2#TRPBF	量产
LTC1729CMS8-8.2#PBF	量产
LTC1729CMS8-8.2#TRPBF	量产
LTC1729CMS8-8.4#PBF	量产
LTC1729CMS8-8.4#TRPBF	量产
12月 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1729CS8-4.1#PBF	量产
LTC1729CS8-4.1#TRPBF	量产
LTC1729CS8-8.2#PBF	量产
LTC1729CS8-8.2#TRPBF	量产
LTC1729CS8-8.4#PBF	量产
LTC1729CS8-8.4#TRPBF	量产
6月 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1729CS8-4.1#PBF	量产
LTC1729CS8-4.1#TRPBF	量产
LTC1729CS8-8.2#PBF	量产
LTC1729CS8-8.2#TRPBF	量产
LTC1729CS8-8.4#PBF	量产
LTC1729CS8-8.4#TRPBF	量产

这是最新版本的数据手册

评估套件

LTC1729CMS8-8.4, LT1510-5CGN | Termination Controllers / Li-Ion Battery Charger, 11.5V to 28V Input, 8.4VOUT @ 1A Max. (marking LTJG)

立即购买更多内容

产品详情

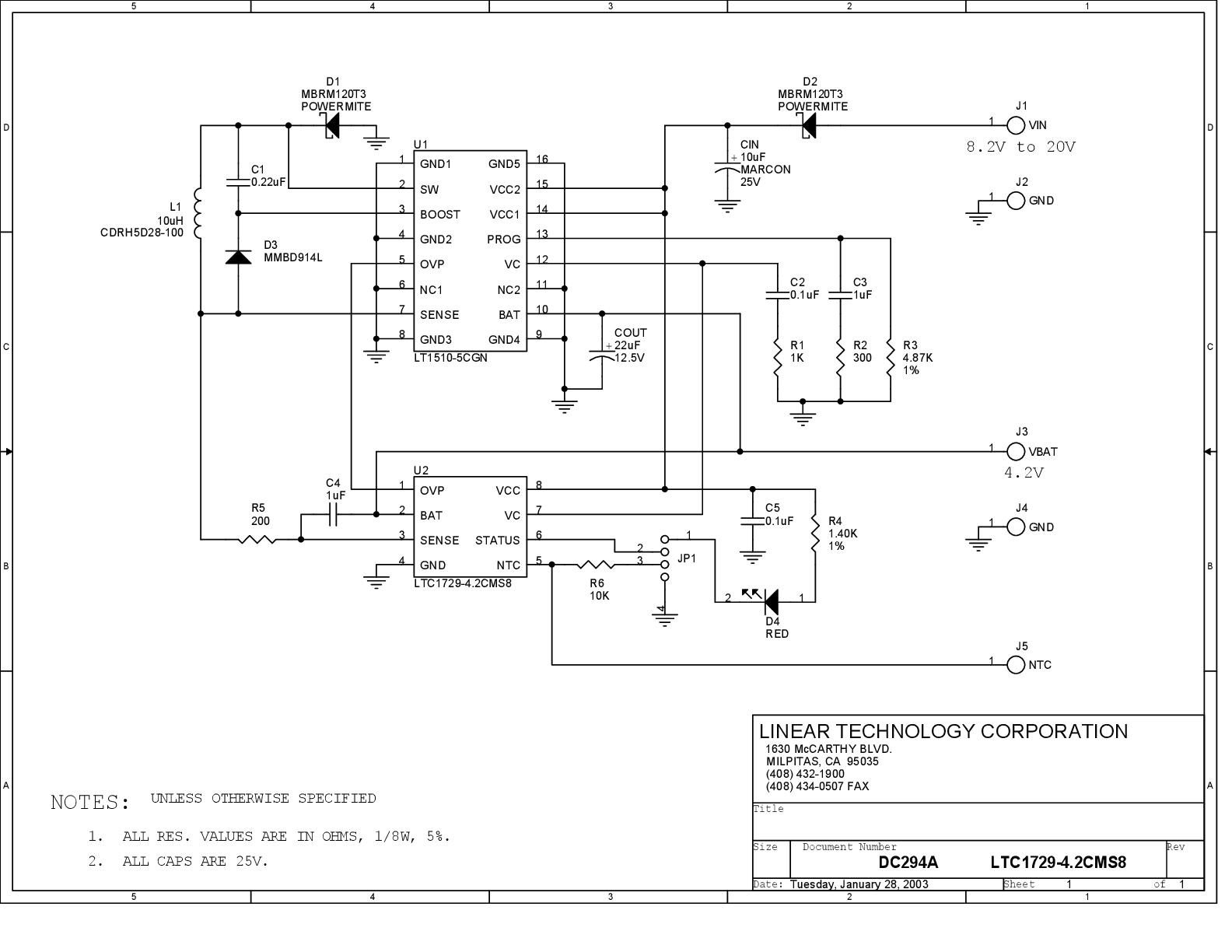

DC294A-D: Demo Board for the LT1510 Constant-Voltage/Constant-Current Battery Charger, LTC1729 Li-Ion Battery Charger Termination Controllers.

资料

DC294A - Schematic
68.00K

DC294A - Demo Manual
115.00K

DC294A - Design File
429.00K

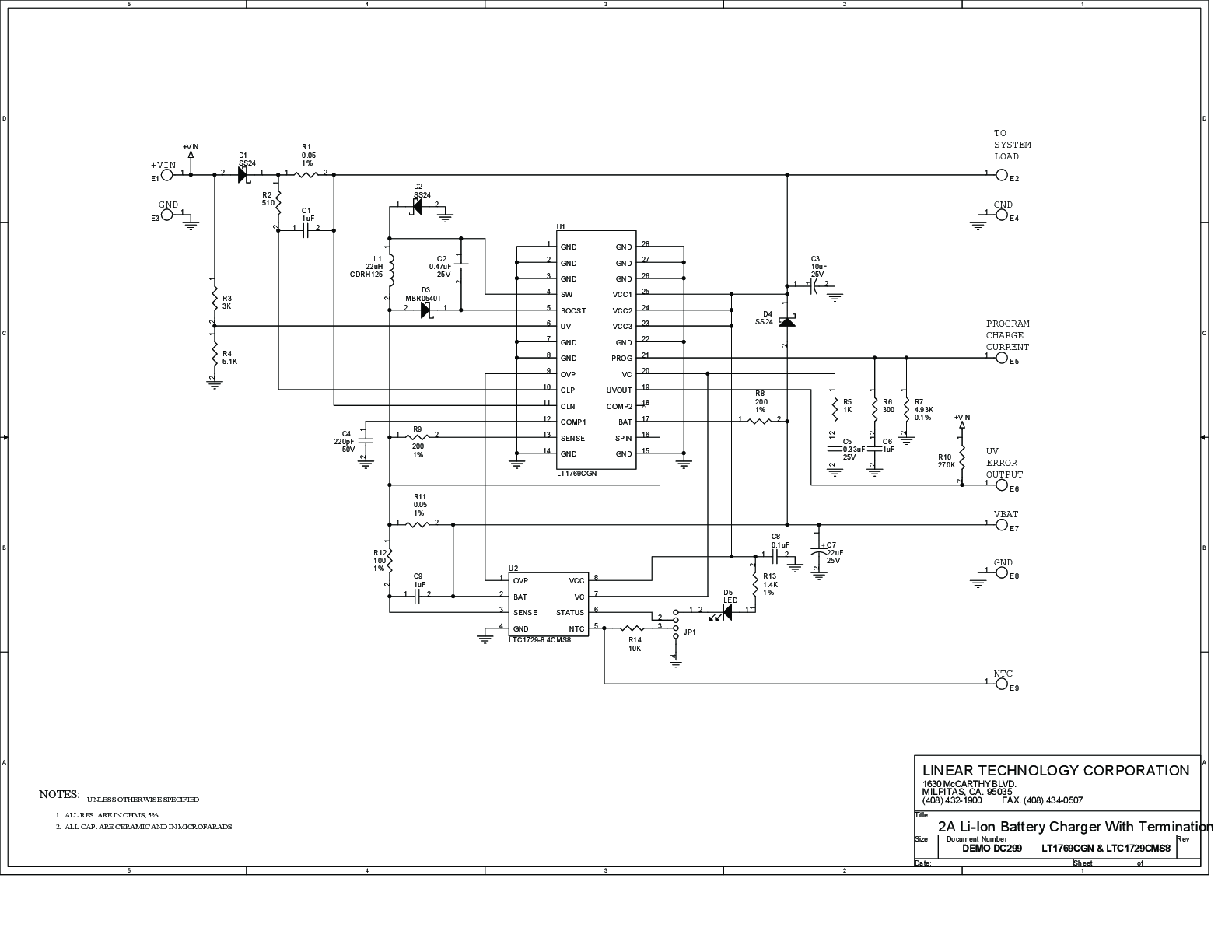

LT1769CGN, LTC1729CMS8 | 2A Li-Ion Battery Charger with Termination Controller, 12V to 25V Input, 8.4 VOUT @ 2A Max.
