LT3055

推荐新设计使用

具精准电流限值和诊断功能的 500mA 线性稳压器

数据手册 (Rev. B) 产品选型表

产品模型: 36

Viewing:

产品详情

输出电流：500mA
电压差：350mV
输入电压范围：1.6V 至 45V
可编程精密限流：±10%
输出电流监控：I_OUT 的 1/500
可编程最小 I_OUT 监控器
温度监控器：10mV/°C
故障 (FAULT) 指示器：限流、限热或最小 I_OUT
低噪声：25μV_RMS (10Hz 至 100kHz)
可调输出 (V_REF = V_OUT(MIN) = 0.6V)
输出容差：±2% (在整个负载、线路和温度范围内)
采用低 ESR、陶瓷输出电容（最小值 3.3μF）便可稳定工作
关断电流：<1μA
电池反接和限热保护
16 引脚 4mm x 3mm DFN 封装和 MSOP 封装

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LT3055EDE#PBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EDE#TRPBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EDE-3.3#PBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EDE-3.3#TRPBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EDE-5#PBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EDE-5#TRPBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055EMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055HMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055HMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055HMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055HMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055HMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055HMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IDE#PBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IDE#TRPBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IDE-3.3#PBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IDE-3.3#TRPBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IDE-5#PBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IDE-5#TRPBF	16-Lead DFN (4mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055IMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055MPMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055MPMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055MPMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055MPMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055MPMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT3055MPMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

2月 4, 2020 - 20_0132 Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0132_Form Material_Report
LT3055EMSE#PBF	量产
LT3055EMSE#TRPBF	量产
LT3055EMSE-3.3#PBF	量产
LT3055EMSE-3.3#TRPBF	量产
LT3055EMSE-5#PBF	量产
LT3055EMSE-5#TRPBF	量产
LT3055HMSE#PBF	量产
LT3055HMSE#TRPBF	量产
LT3055HMSE-3.3#PBF	量产
LT3055HMSE-3.3#TRPBF	量产
LT3055HMSE-5#PBF	量产
LT3055HMSE-5#TRPBF	量产
LT3055IMSE#PBF	量产
LT3055IMSE#TRPBF	量产
LT3055IMSE-3.3#PBF	量产
LT3055IMSE-3.3#TRPBF	量产
LT3055IMSE-5#PBF	量产
LT3055IMSE-5#TRPBF	量产
LT3055MPMSE#PBF	量产
LT3055MPMSE#TRPBF	量产
LT3055MPMSE-3.3#PBF	量产
LT3055MPMSE-3.3#TRPBF	量产
LT3055MPMSE-5#PBF	量产
LT3055MPMSE-5#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
浪涌抑制器、过压和过流保护 1
LT4363	推荐新设计使用	具电流限制功能的高电压浪涌抑制器
正线性稳压器(LDO) 1
LT3065 系列		具可编程电流限值和电源良好标记的 45V V_IN、500mA 低噪声线性稳压器

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

LT3055

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

LT3055EDD Demo Board | Micropower Linear Regulator, Precision Current Limit, Diagnostics, ±45V Input Voltages, 2.2V ≤ VIN ≤ 45V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5V @ 500mA

立即购买更多内容

产品详情

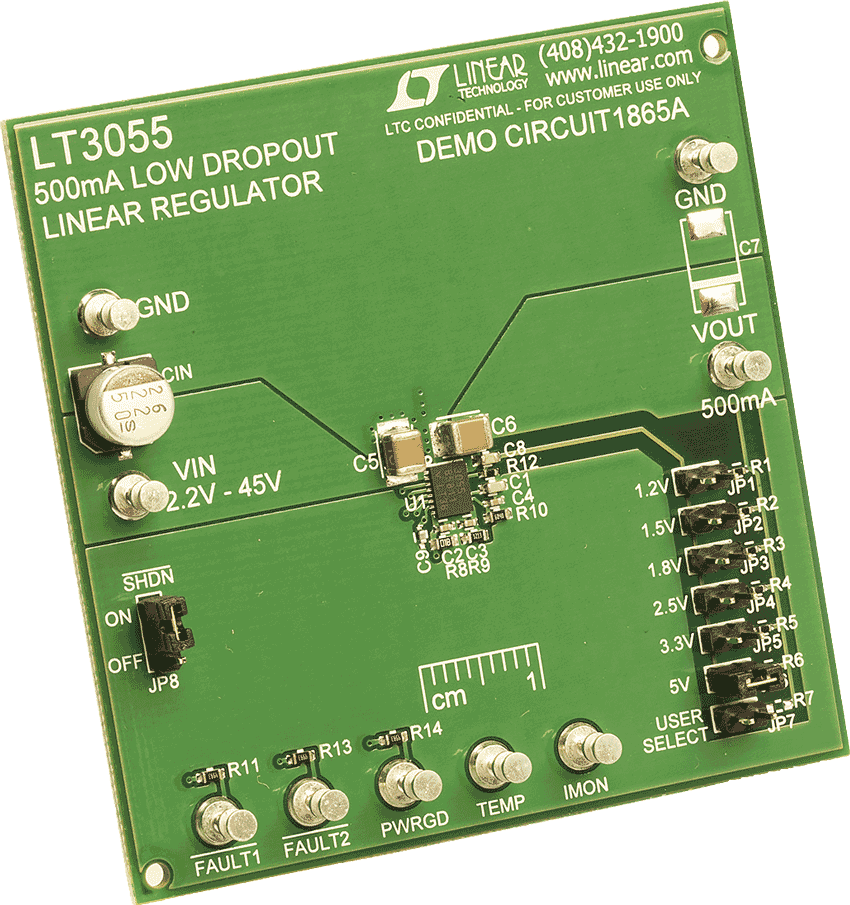

演示电路 1865A 是一款可调 500mA 线性稳压器，内置 LT3055。该演示板支持最高 ±45V 的输入电压。输入电压范围为 2.2V 至 45V，且跳线可选输出电压可以设置为 1.2V、1.5V、1.8V、2.5V、3.3V、5V 或用户定义值。

LT3055 是一款微功耗（65µA 无负载静态电流）、低噪声和低压差(350mV)线性稳压器。10nF 旁路电容将输出噪声降至 25μVRMS（10Hz 至 100kHz 带宽）并软启动基准电压源。LT3055 的 ±45V 输入电压额定值以及精密限流和诊断功能，使 IC 成为鲁棒、高可靠性应用的理想选择。LT3055 限流可通过单个电阻进行编程，并在宽输入电压和温度范围内精确至 ±10%。另一个电阻对 LT3055 可选的最小输出电流监控器进行编程，可用于检测开路状态。

资料

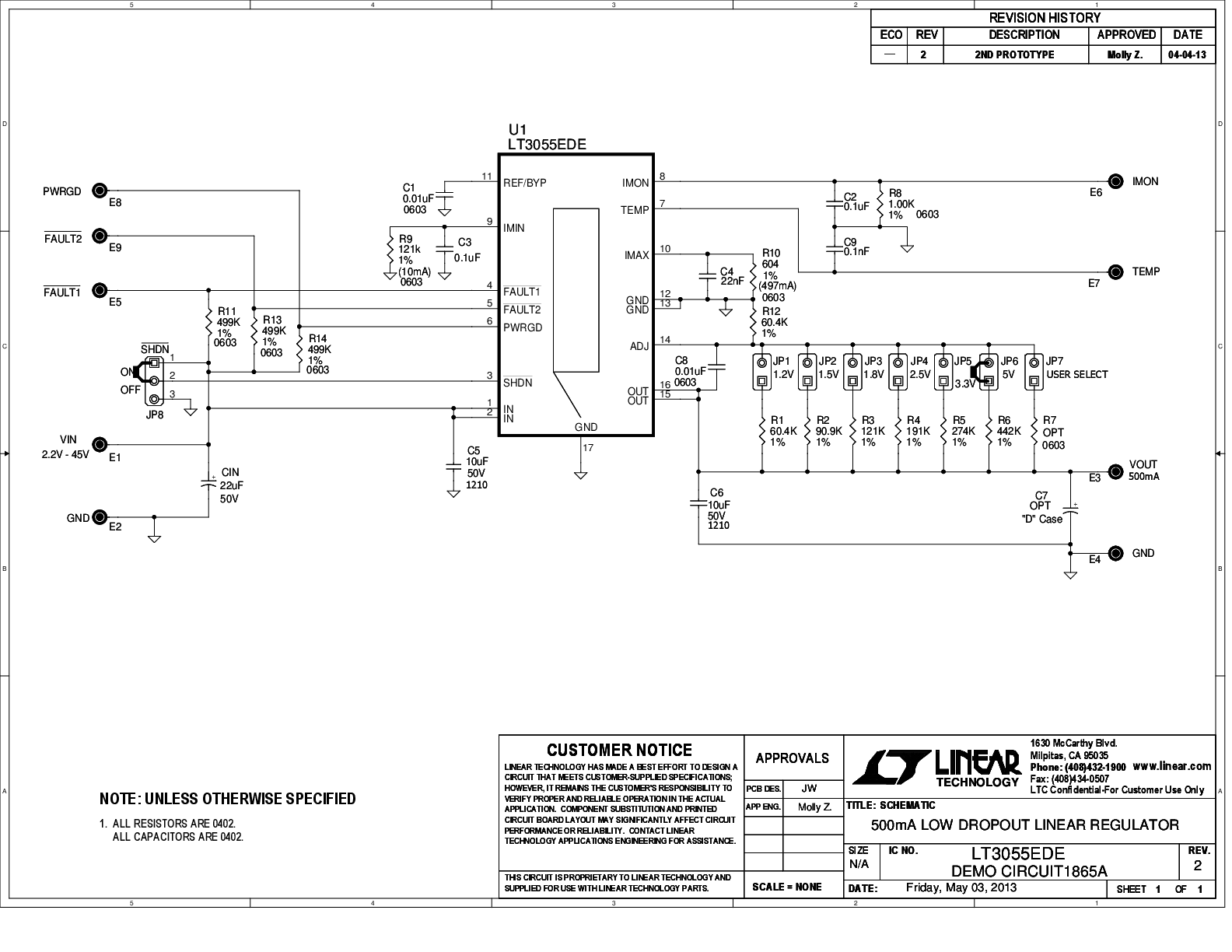

DC1865A - Schematic
50.00K

DC1865A - Design Files
826.00K

DC1865A - Demo Manual
258.00K
