HMC346

过期

HMC346 / HMC346C8 / HMC346G8 / HMC346LC3B / HMC346LP3 / HMC346MS8G

可变电压衰减器芯片，采用SMT或密封型SMT封装，DC至8 GHz、14 GHz、18 GHz或20 GHz

数据手册产品选型表

产品模型: 16

Viewing:

产品详情

宽带宽： DC至8 GHz、14 GHz、18 GHz或20 GHz
低相移和衰减
30 dB或32 dB衰减范围
简化电压控制

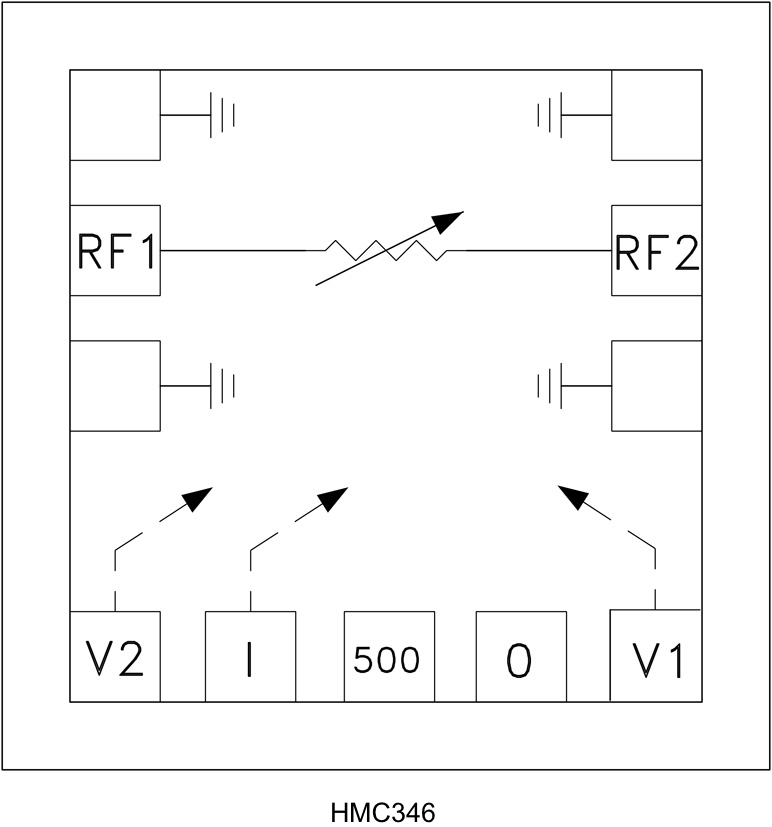

裸片尺寸： 0.85 × 0.85 × 0.1 mm

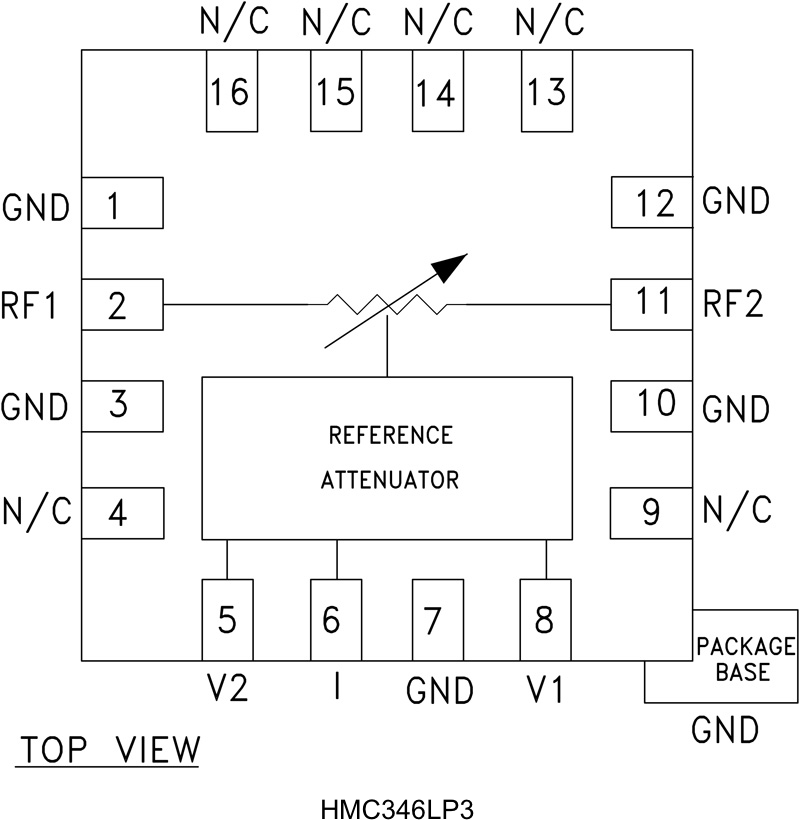

符合RoHS标准的、3 × 3 mm、表贴技术(SMT)封装

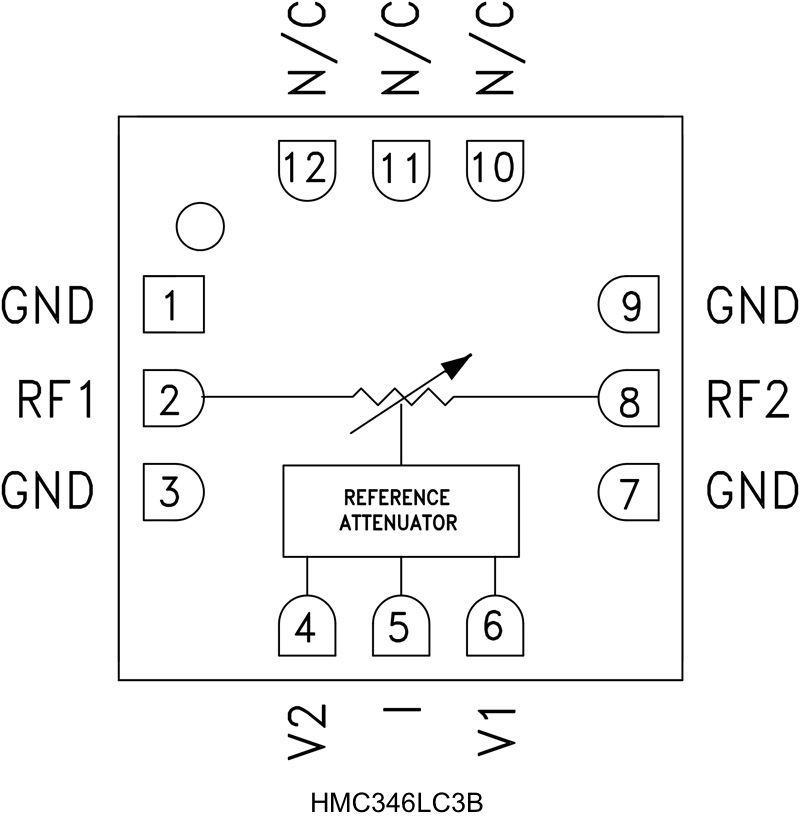

3 × 3 × 1 mm、表贴技术(SMT)封装

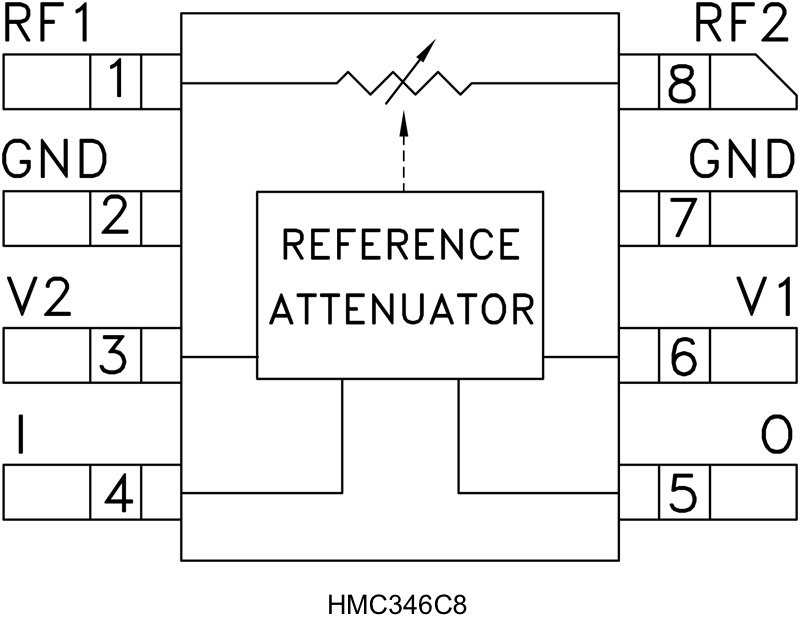

表贴陶瓷封装

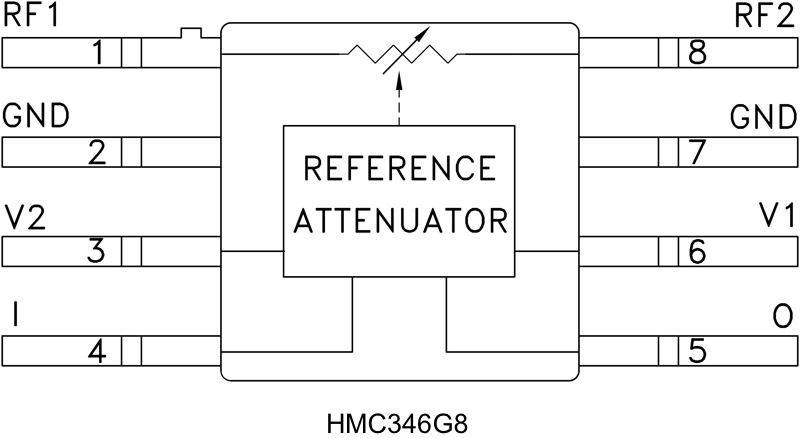

8引脚、密封、表贴技术(SMT)封装

参考资料

数据手册 6

HMC346C8 Data Sheet 04/21/2015

HMC346G8 Data Sheet 04/21/2015

HMC346LC3B Data Sheet 04/21/2015

HMC346LP3 Data Sheet 04/21/2015

HMC346MS8G Data Sheet 04/21/2015

HMC346 Die Data Sheet 04/21/2015

应用笔记 1

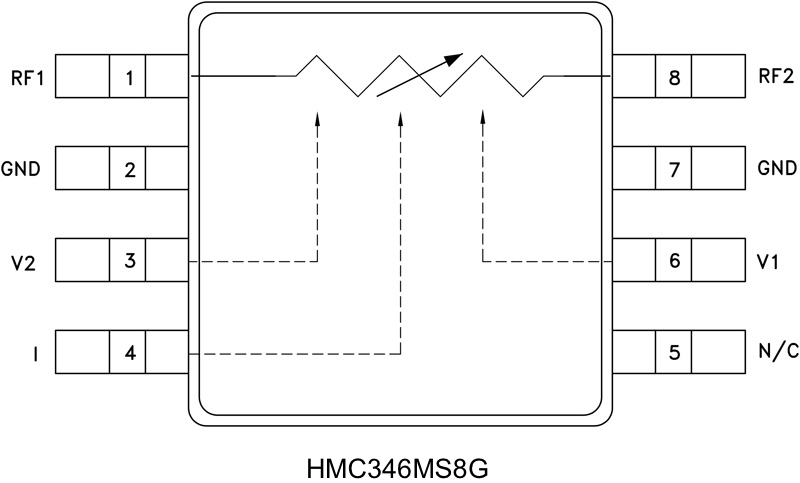

Designing with the HMC346ms8g Voltage Variable Attenuator Application Note 01/19/2016

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
HMC346	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346C8	8-Lead SMT (4.32mm x 5.59mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346C8TR	8-Lead SMT (4.32mm x 5.59mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346G8	8-Lead Cerpak (Hermetic, Glass Seal, Gullwing Leads)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346G8TR	8-Lead Cerpak (Hermetic, Glass Seal, Gullwing Leads)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LC3B	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LC3BTR	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LC3BTR-R5	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LP3	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LP3E	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LP3ETR	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346LP3TR	16-Lead QFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346MS8G	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346MS8GE	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346MS8GETR	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC346MS8GTR	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

6月 6, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products
		PCN22_0048_Form Material_Report Qualification Results Summary Detailed Change Description
HMC346LP3E	过期
HMC346LP3ETR	过期
5月 6, 2019 - 19_0063 Assembly Site Transfer of Select MSOP and SOIC_N E-pad Devices to Carsem Malaysia
		PCN19_0063_Form Material_Report Other Qualification Results Summary Qualification Results Summary Other
HMC346MS8GE	过期
HMC346MS8GETR	过期
1月 11, 2017 - 16_0010 Discontinuance of Select RF and Microwave Products
		PDN16_0010_Form Material_Report
HMC346	过期
HMC346C8	过期
HMC346C8TR	过期
HMC346G8	过期
HMC346G8TR	过期
HMC346LC3B	过期
HMC346LC3BTR	过期
HMC346LC3BTR-R5	过期
HMC346LP3	过期
HMC346LP3E	过期
HMC346LP3ETR	过期
HMC346LP3TR	过期
HMC346MS8G	过期
HMC346MS8GE	过期
HMC346MS8GETR	过期
HMC346MS8GTR	过期

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
HMC346ALC3B		GaAs MMIC电压可变衰减器，DC - 18 GHz
HMC346AMS8GE		GaAs MMIC SMT电压可变衰减器，DC - 8 GHz
HMC346ALP3E		GaAs MMIC电压可变衰减器，DC - 14 GHz
