产品详情

  • 数字可调谐、倍频程、带通调谐
  • 3 dB 带宽：9% ± 2%
  • 抑制性能 (20 dB)：距离 fCENTER 19%
  • 以单芯片替代分立式滤波器组
  • 紧凑型 10 mm × 10 mm LGA 封装
ADMV8505
225 MHz 至 520 MHz、数字可调谐带通滤波器
ADMV8505 Functional Block Diagram ADMV8505 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADMV8505

Evaluating the ADMV8505 225 MHz to 520 MHz, Digitally Tunable, Band-Pass Filter

立即购买 更多内容

特性和优点

  • Fully featured evaluation board for the ADMV8505
  • On-board system demonstration platform (SDP-S) connector for the SPI
  • Evaluation using on-board LDO regulators powered by the USB
  • ACE software interface for SPI control

产品详情

The ADMV8505-EVALZ is available for evaluating the ADMV8505 digitally tunable, band-pass filter (BPF). The ADMV8505-EVALZ incorporates the ADMV8505 chip, as well as a negative voltage generator, low dropout (LDO) regulators, and an interface to the EVAL-SDP-CS1Z (SDP-S) system demonstration platform (SDP) to allow simple and efficient evaluation. The negative voltage generator and LDO regulators allow the ADMV8505 to be powered by either the 5 V USB supply voltage from the PC via the SDP-S or by using two external power supplies.

The ADMV8505 is an IC that features a digitally selectable frequency of operation. The chip can be programmed using a 4-wire serial peripheral interface (SPI), and the SDP-S controller allows the user to interface with the SPI of the ADMV8505 through the Analog Devices, Inc., Analysis, Control Evaluation (ACE) software.

For full details on the ADMV8505, see the ADMV8505 data sheet, which must be consulted in conjunction with this user guide when using the ADMV8505-EVALZ.
EVAL-ADMV8505
Evaluating the ADMV8505 225 MHz to 520 MHz, Digitally Tunable, Band-Pass Filter

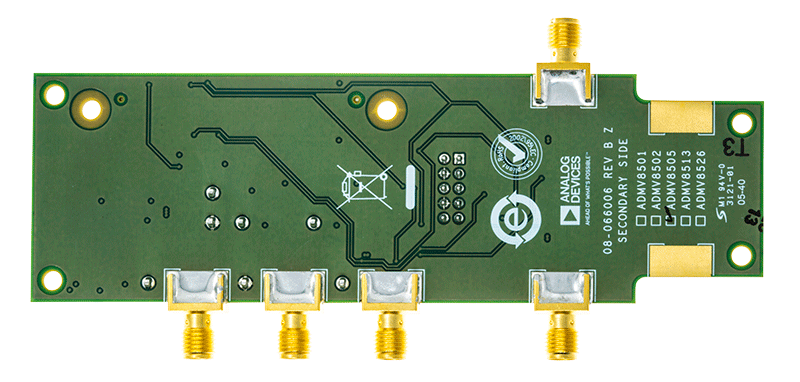

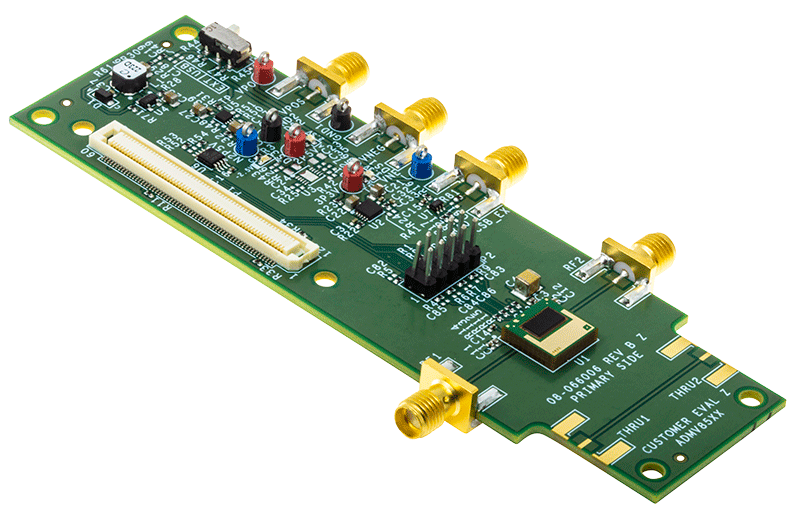

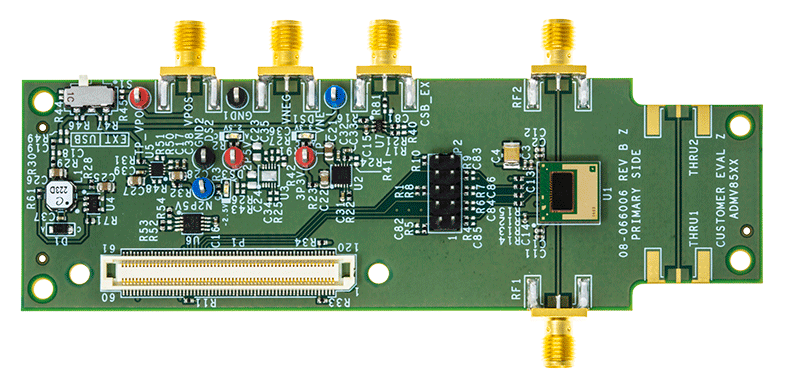

EVAL-ADMV8505 Board Photo Angle View EVAL-ADMV8505 Board Photo Top View EVAL-ADMV8505 Board Photo Bottom View
