ADMV4801
推荐新设计使用24 至 29.5 GHz TX/RX 波束形成器
- 产品模型
- 1
产品详情
- RF 频率范围：24 GHz 至 29.5 GHz，将 n257、n258 和 n261 频段集成在一个空间内
- 16 个可选的 TX 通道
- 16 个可选的 RX 通道
- 匹配的 50Ω 单端 RF 输入和输出
- 通过高分辨率矢量调制器实现相位控制
- 通过高分辨率 DGA 实现幅度控制
- 温度补偿
- 通过存储器存储 TX 和 RX 波束位置
- 工作温度高达 95°C
- 符合 3GPP 规范
The ADMV4801 is a silicon germanium (SiGe), 24 GHz to 29.5 GHz, mmW, 5G beamformer. This RF IC is highly integrated and contains 16 independent transmit and receive channels. In transmit mode, the RFC input signal is split using 1:16 power splitters and passes through the 16 independent transmit channels. In receive mode, input signals pass through the 16 independent channels and are combined with 16:1 combiners to the RFC pin. In transmit mode, each channel includes a vector modulator (VM) to control phase and two digital variable gain amplifiers (DVGAs) to control amplitude. In receive mode, each channel includes a VM to control phase and a DVGA to control amplitude. The VM provides a full 360° phase adjustment range in either transmit or receive mode, providing 6 bits of resolution for 5.625° phase steps. The total DVGA dynamic range adjustment range in transmit mode is 34 dB, providing 6 bits of resolution, resulting in 0.5 dB amplitude steps, and 5 bits of resolution, resulting in 1 dB amplitude steps. In receive model the total dynamic range is 17 dB providing, 6 bits of resolution, resulting in 0.5 dB amplitude steps. The DVGAs provide a flat phase response across the full gain range. The transmit channels contain individual power detectors to provide the ability to detect and calibrate each channel gain, as well as channel to channel gain mismatch. The ADMV4801 RF ports can be connected directly to a patch antenna to create a dual polarization, mmW, 5G subarray.
The programming of the ADMV4801 can be accomplished using the 3-wire or 4-wire serial port interface (SPI). An integrated, onchip low dropout regulator (LDO) generates the 1.8 V supply for the SPI circuitry to reduce the number of required supply domains. Various SPI modes are available to enable fast startup and control during normal operation. The amplitude and phase for each channel can be set individually, or multiple channels can be programmed simultaneously using the on-chip memory for beamforming. The on-chip memory can store up to 256 beam positions, which can be allocated for either transmit or receive mode. A dedicated load pin provides synchronization of all devices in the same array. A transmit and receive mode control pin is provided for fast switching between transmit and receive mode.
The ADMV4801 is featured in a compact, thermally enhanced, 10 mm × 10 mm, RoHS compliant land grid array (LGA) package. The ADMV4801 operates over the −40°C to +95°C case temperature range. This LGA package enables the ability to heat-sink the ADMV4801 from the topside of the package for the most efficient thermal heat-sinking and to allow flexible antenna placement on the opposite side of the printed circuit board (PCB).
Throughout the figures in the data sheet, Tx means transmit (or transmitter) and Rx means receive (or receiver).
Additional digital details of ADMV4801 are available in AN-2021 Application Note, ADMV4801 SPI Application Note. Contact Analog Devices at mmWave5G@analog.com.
APPLICATIONS
此产品有一个更新版本
24 至 29.5 GHz TX/RX 双极化波束形成器
参考资料
数据手册 1
用户手册 1
应用笔记 1
视频 2
解决方案设计及宣传手册 2
产品选型指南 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADMV4801BCCZ | 72-Terminal LGA (10mm x 10mm x 0.7mm) |
这是最新版本的数据手册
硬件生态系统
| 部分模型 | 产品周期 | 描述 |
|---|---|---|
| ADMV4821 | 推荐新设计使用 | 24 至 29.5 GHz TX/RX 双极化波束形成器 |
工具及仿真模型
LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。
评估套件

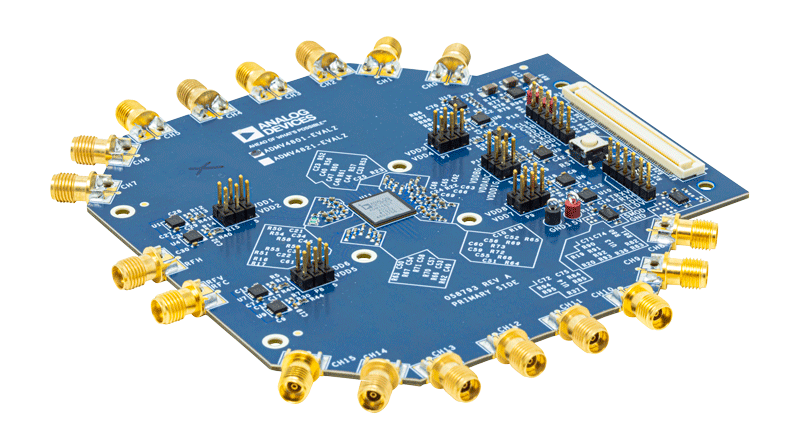

评估ADMV4801 24 GHz至29.5 GHz发射器/接收器、单极化波束形成器
