ADH913S
推荐新设计使用0.6 GHz to 20 GHz, SDLVA
- 产品模型
- 1
产品详情
- High Logging Range: 59 dB (-54 dBm to +5 dBm) @ 18 GHz
- Output Frequency Flatness: ± 1.5 dB
- Log Linearity: ± 1 dB
- Fast Rise/Fall Times: 5/10 ns
- Single Positive Supply: +3.3 V.
- 12-Lead Hermetic SMT Package
- Screened in accordance with MIL-PRF-38535, Class Level S
The ADH913S is a Successive Detection Log Video Amplifier (SDLVA) which operates from 0.6 GHz to 20 GHz. The ADH913S provides a logging range of 59 dB @ 18 GHz. This device offers typical fast rise/fall times of 5/10 ns and a superior delay time of only 14 ns. The ADH913S log video output slope is typically 14 mV/dB. Maximum recovery times are less than 30 ns. Ideal for high-speed channelized receiver applications, the ADH913S operates from a single +3.3 V supply, and consumes only 80 mA.
Applications
- EW, ELINT & IFM Receivers
- DF Radar Systems
- ECM Systems
- Broadband Test & Measurement
- Power Measurement & Control Circuits
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|

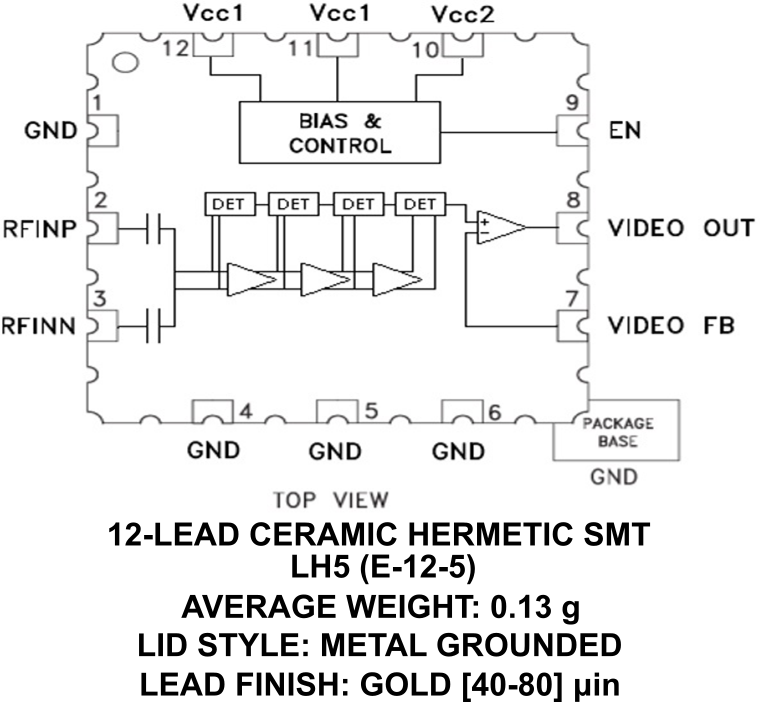

| HMC8252LH5 | 12-Lead LCC (5.08mmm x 5.08mm) |
