ADH744S
量产14 Gbps, Fast Rise Time, 1:2 Fanout Buffer w/Programmable Output Voltage & Positive Supply
- 产品模型
- 1
产品详情
- Inputs Terminated Internally to 50 Ohms.
- Differential & Singke-Ended Operation.
- Propagation Delay: 120 ps.
- Fast Rise and Fall Time: 22 / 20 ps.
- Programmable Differential Output Voltage Swing: 600 – 1100 mV.
- Lower Power Consumption: 287 mW Typ.
- Single Supply: +3.3 V.
- 16 Lead Ceramic 3 mm x 3 mm SMT Package
- Screened with guidelines to MIL-PRF-38535, Class Level S

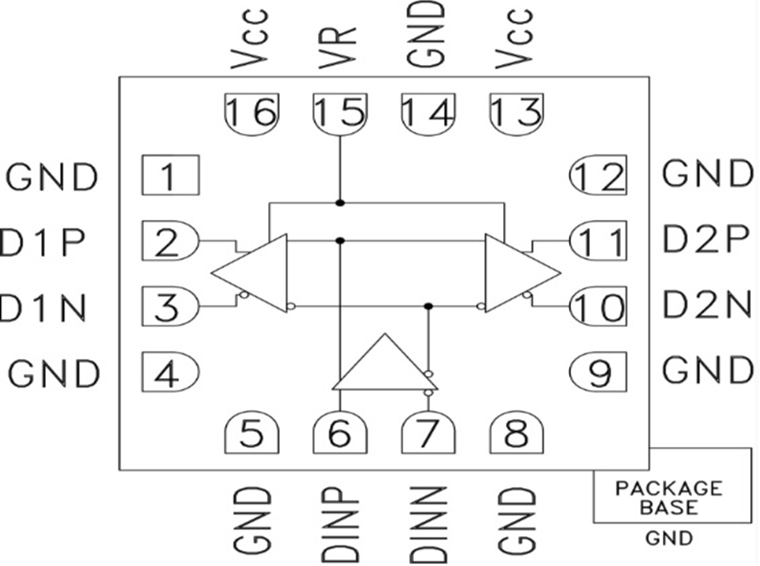

The ADH744S is a 1:2 Fanout Buffer designed to support data transmission rates up to 14 Gbps, and clock frequencies as high as 14 GHz. All differential inputs to the ADH744S are CML and terminated on-chip with 50 Ohms to the positive supply, Vcc, and may be AC or DC coupled. The differential CML outputs are source terminated to 50 Ohms and may also be AC or DC coupled. Outputs can be connected directly to a 50 Ohm Vcc-terminated system, while DC blocking capacitors may be used if the terminating system is 50 Ohms to ground. The ADH744S also features an output level control pin, VR, which allows for loss compensation or signal-level optimization. The ADH744S operates from a single 3.3 V supply.
Applications
- Instrumentation
- Serial Data Transmission up to 14 Gbps
- Clock Buffering up to 14 GHz
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC8662LC3 | 16-Lead LCC (3mm x 3mm w/ EP) |
