ADE7761A

过期

带内置故障检测和零线断线检测功能的电能计量IC

Viewing:

产品详情

High accuracy, active energy measurement IC supports IEC 62053-21
Less than 0.1% error over a dynamic range of 500 to 1
Supplies active power on the frequency outputs,
High frequency output CF is intended for calibration and supplies instantaneous active power
Continuous monitoring of the phase and neutral current allows fault detection in 2-wire distribution systems
Current channels input level best suited for shunt and current transformer sensors

Uses the larger of the two currents (phase or neutral) to bill—even during a fault condition
Continuous monitoring of the voltage and current inputs allows missing neutral detection
Uses one current input (phase or neutral) to bill when missing neutral is detected
Two logic outputs (FAULT and REVP) can be used to indicate a potential miswiring, fault, or missing neutral condition
Direct drive for electromechanical counters and 2-phase stepper motors (F1 and F2)

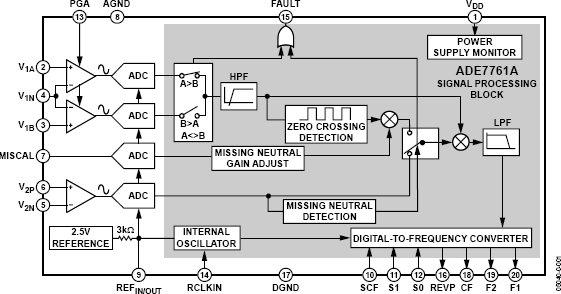

Proprietary ADCs and DSP provide high accuracy over large variations in environmental conditions and time

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

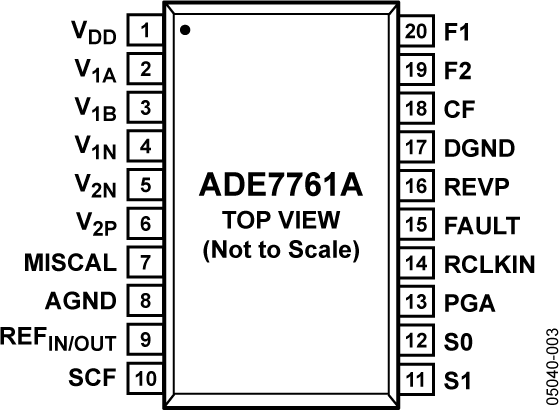

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
